Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear corner upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER UPPER .
  2. Disconnect the electrical connector from the rear quarter window actuator.
  3. Remove the rear quarter window actuator retaining bolts.

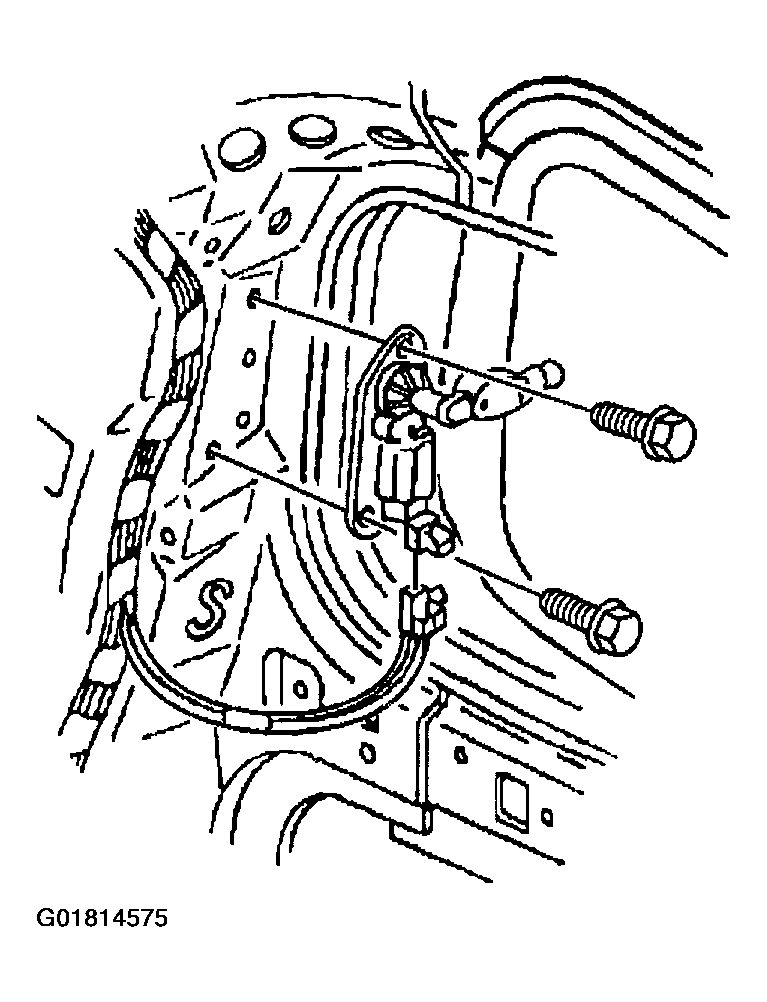

    Fig 1: Removing Rear Quarter Window Actuator & Retaining Bolts (Rear Quarter Window)
    G01814575Courtesy of GENERAL MOTORS CORP.
  4. Remove the bearing bushing retaining screw.
  5. Remove the actuator from the vehicle.
  6. To separate the rear quarter window actuator from the bearing, place the rear quarter window actuator on a shop bench and disassemble by removing the pin from the latch bearing.

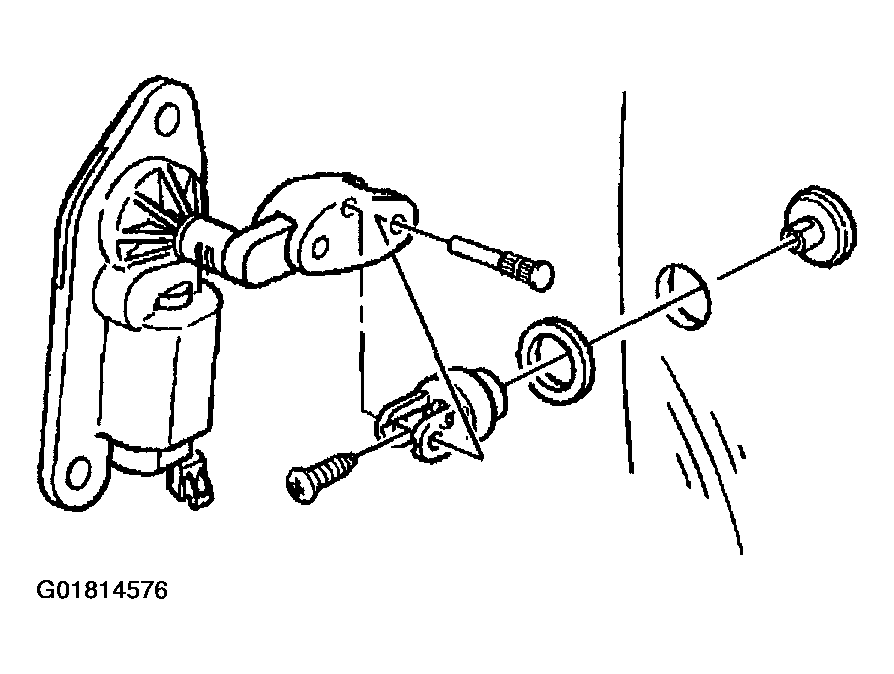

    Fig 2: Removing Bearing Bushing & Retaining Screw (Rear Quarter Window)
    G01814576Courtesy of GENERAL MOTORS CORP.
