Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the bearing to the rear quarter window actuator by installing the pin.
  2. Install the bearing bushing retaining screw.

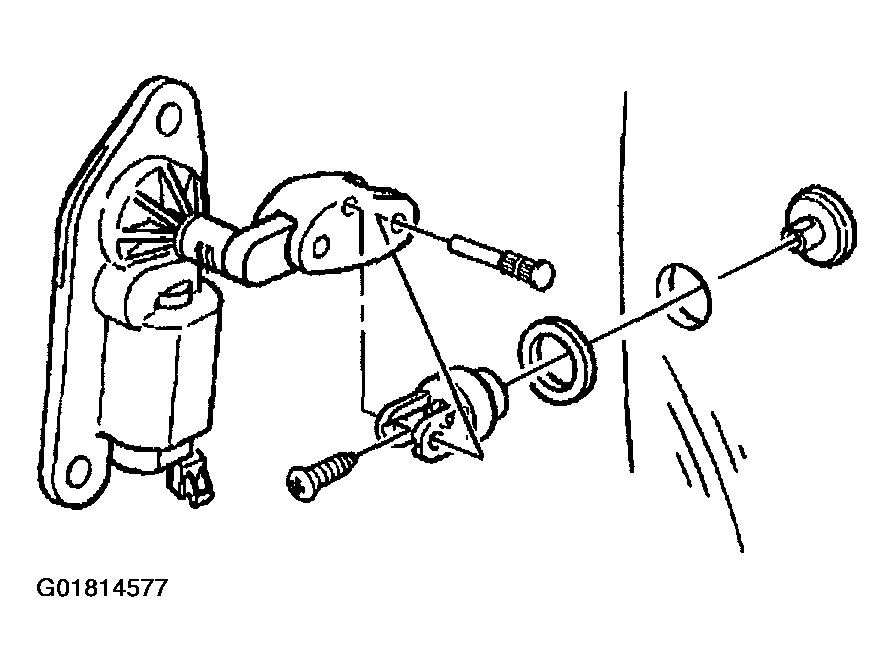

    Fig 1: Installing Bearing Bushing & Retaining Screw (Rear Quarter Window)
    G01814577Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear quarter window actuator retaining bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

    Tighten the bearing bushing retaining screw to 2 N.m (18 lb in).

  4. Connect the electrical connector to the rear quarter window actuator.
  5. Install the rear corner upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER UPPER .

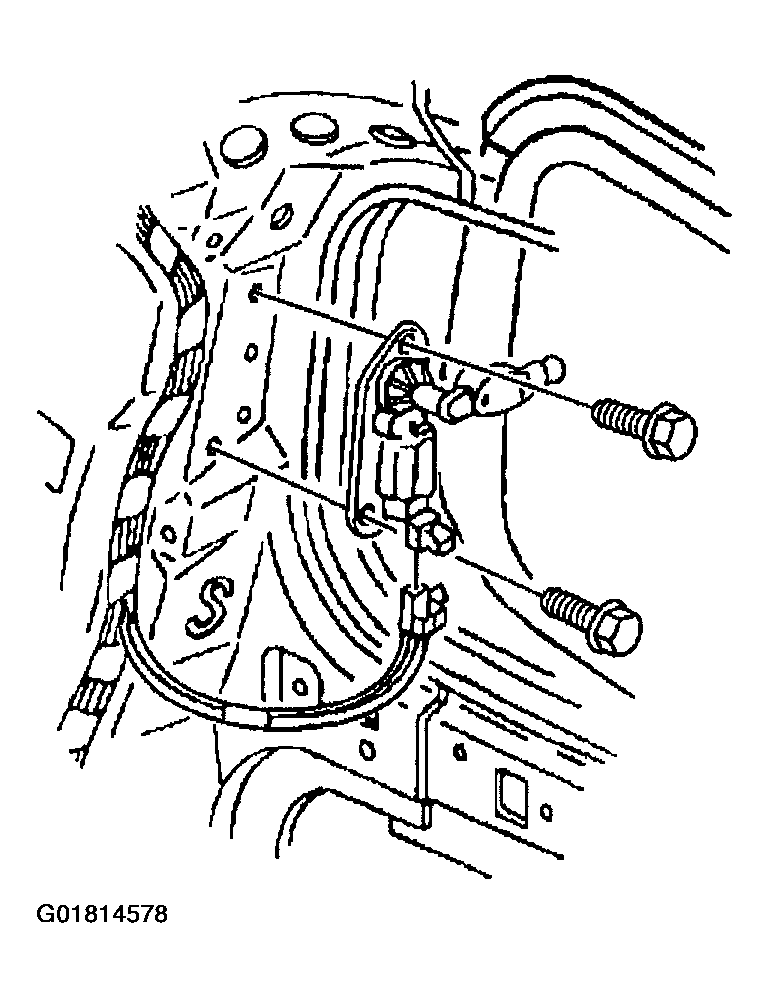

    Fig 2: Installing Rear Quarter Window Actuator & Retaining Bolts (Rear Quarter Window)
    G01814578Courtesy of GENERAL MOTORS CORP.
