Body Rear End Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

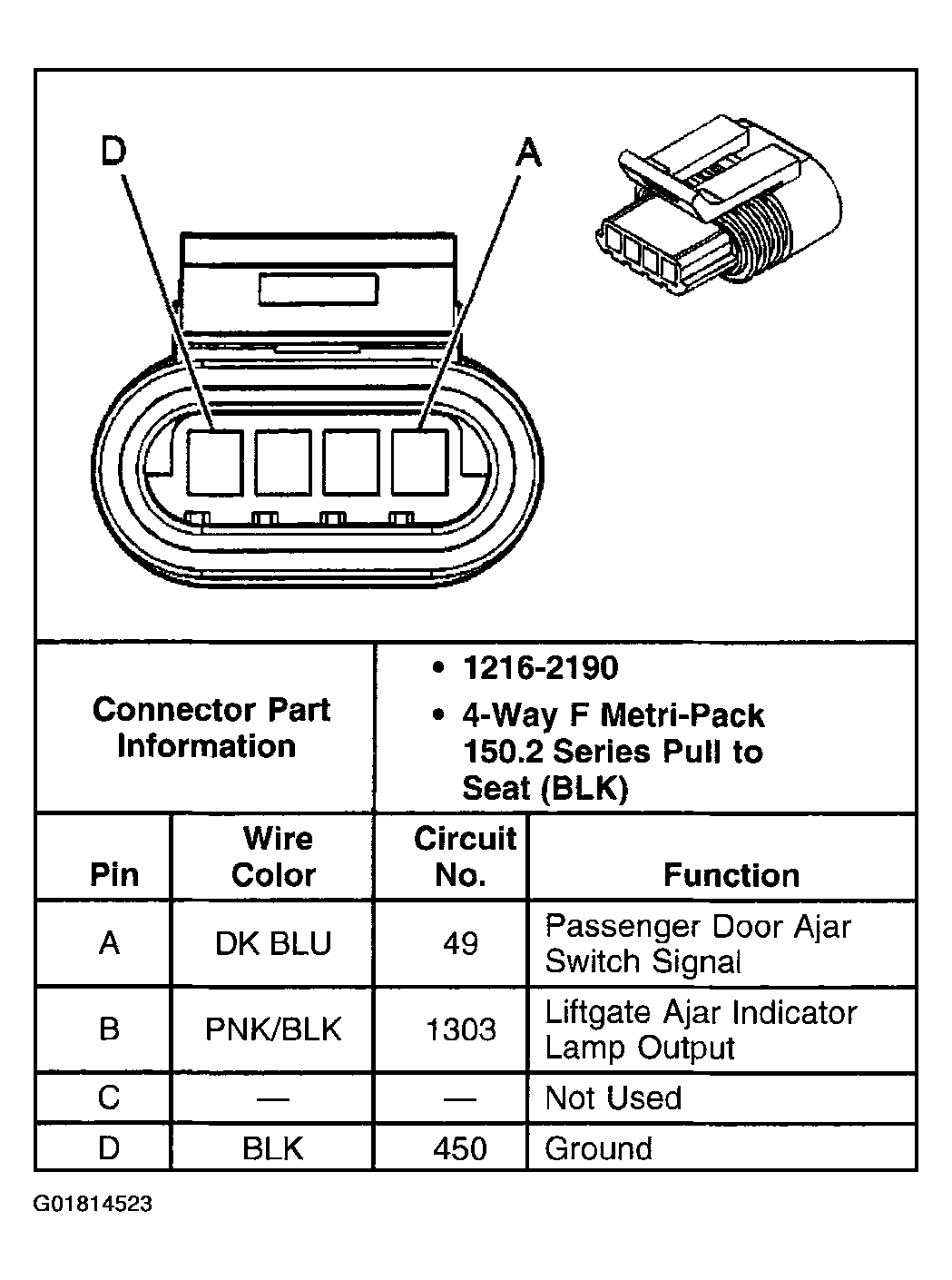

Fig 1: Liftgate Door Lock Connector C1 - Ajar Indicator Switch

Courtesy of GENERAL MOTORS CORP.

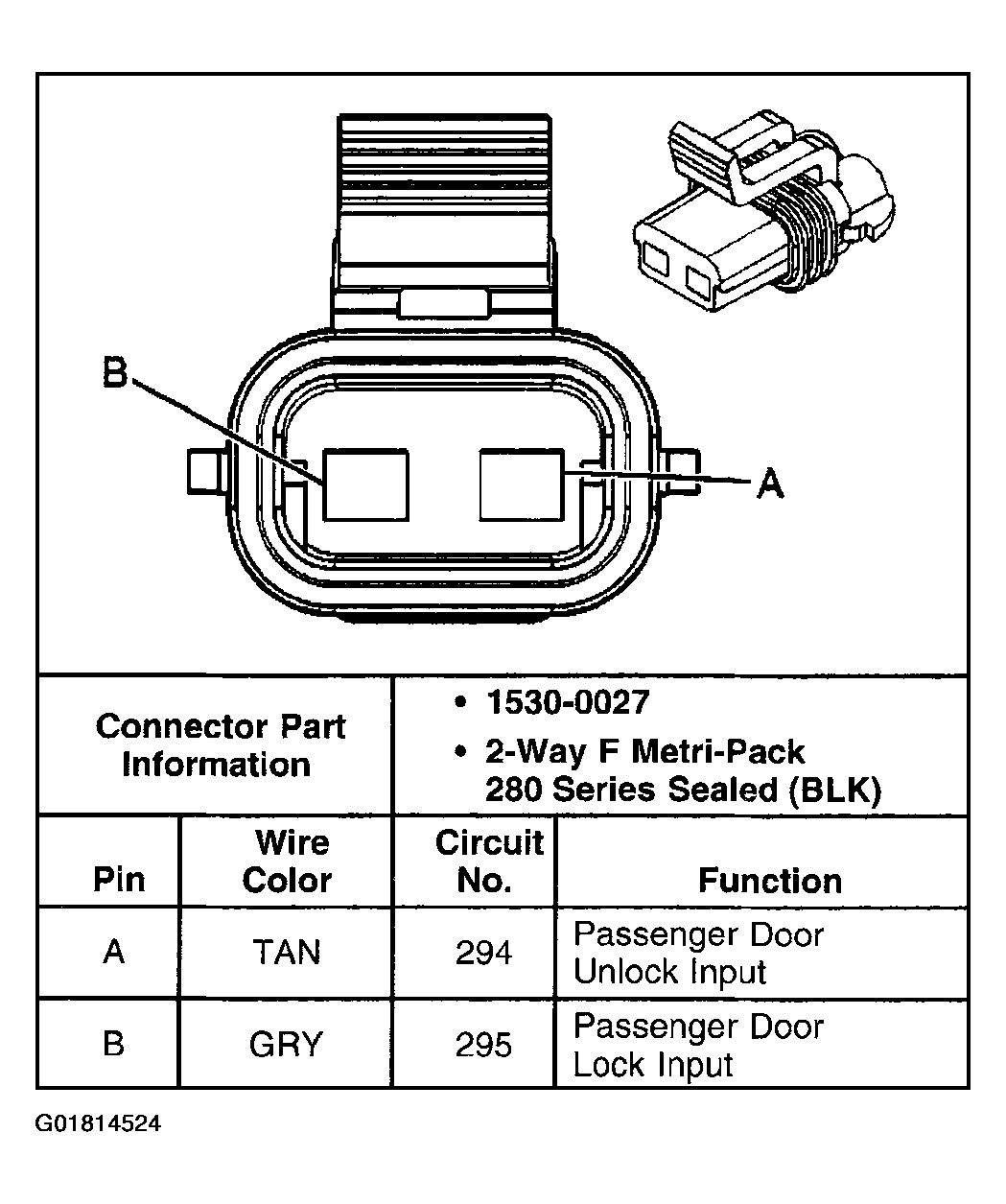

Fig 2: Liftgate Door Lock Connector C2 - Actuator

Courtesy of GENERAL MOTORS CORP.

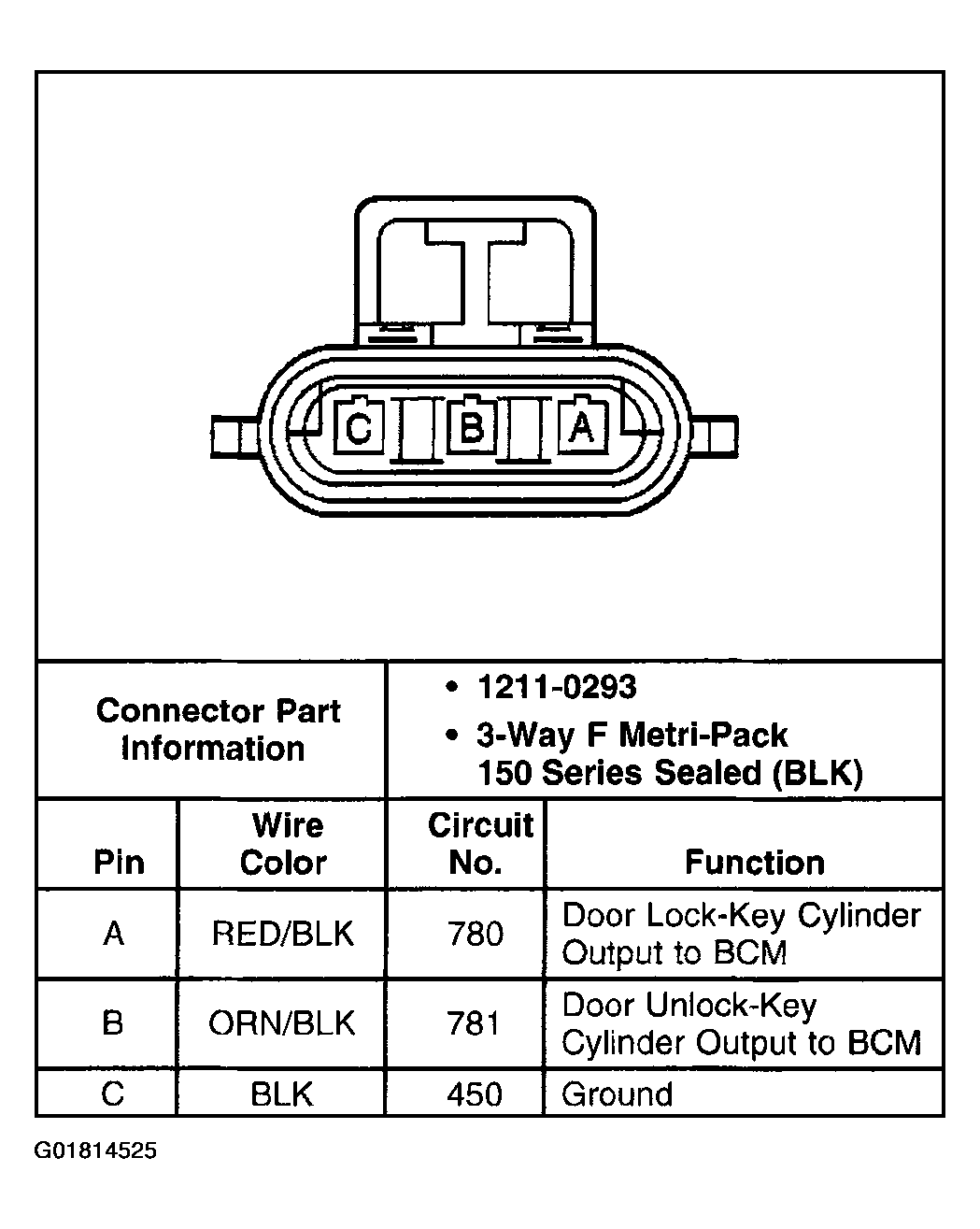

Fig 3: Liftgate Door Lock Cylinder Switch

Courtesy of GENERAL MOTORS CORP.

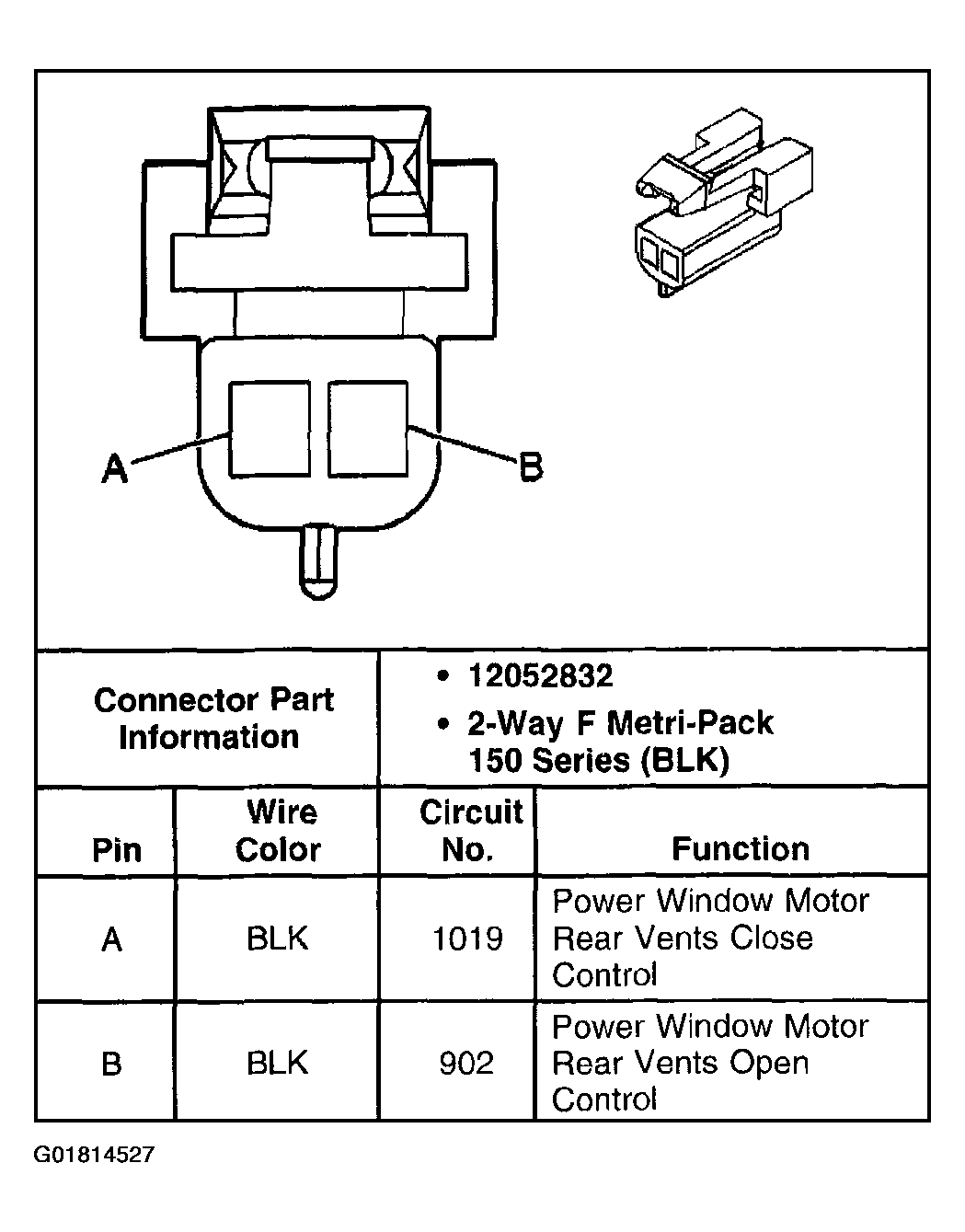

Fig 4: Rear Quarter Window Actuator - Left

Courtesy of GENERAL MOTORS CORP.

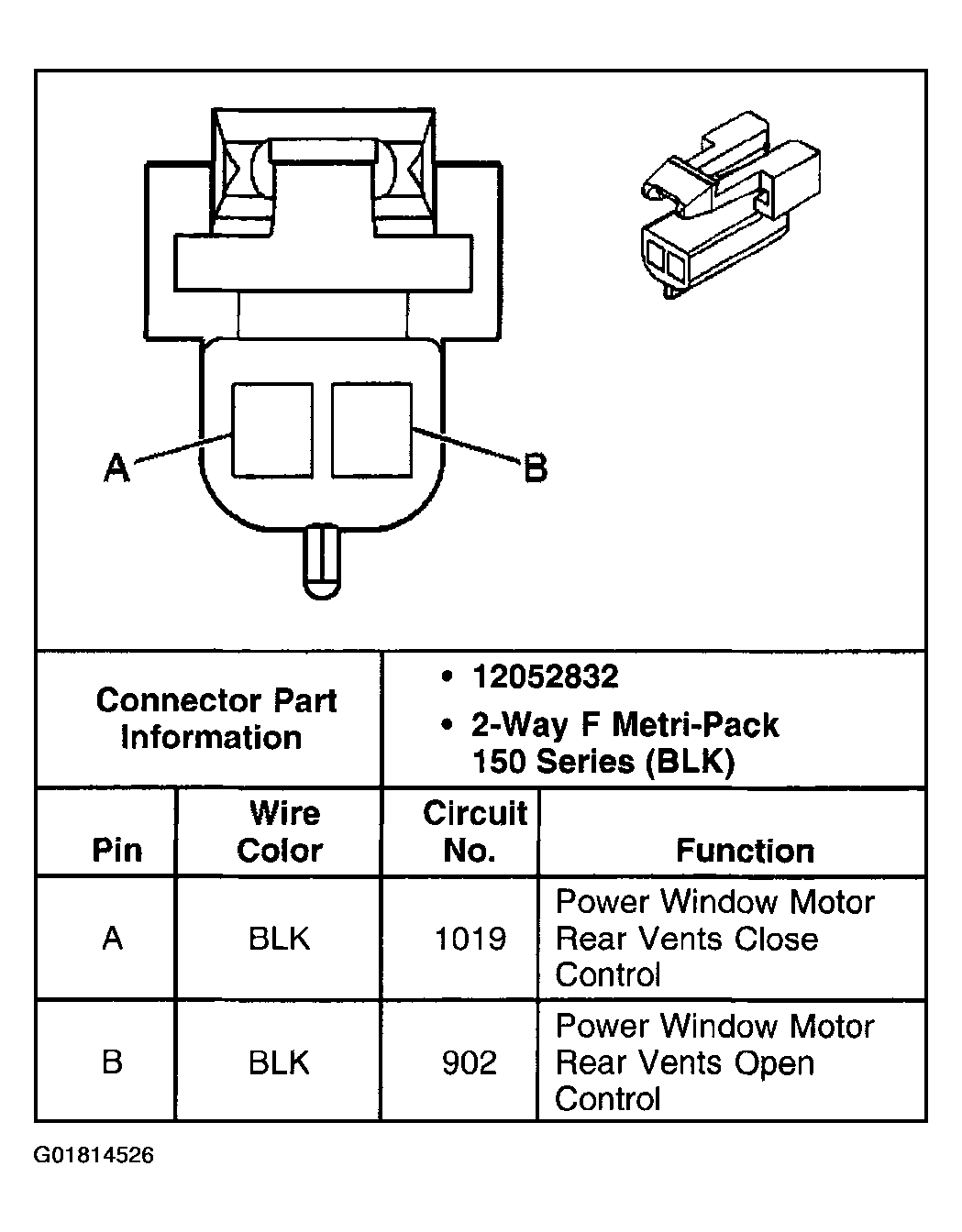

Fig 5: Rear Quarter Window Actuator - Right

Courtesy of GENERAL MOTORS CORP.
