Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seats. Refer to SEAT REPLACEMENT - REAR .
  2. Remove the back body pillar trim. Refer to Garnish Molding Replacement - Rear Corner Upper .
  3. Remove the body side upper trim panel. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  4. Remove the cup holder from the rear quarter trim.

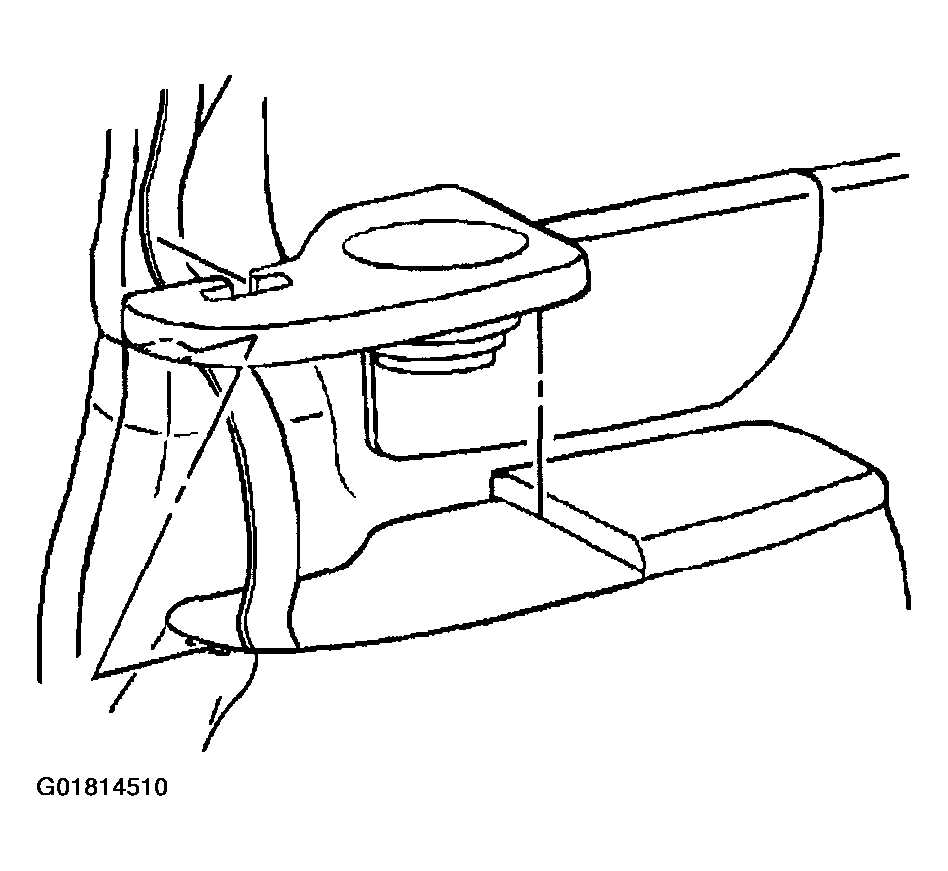

    Fig 1: Cup Holder & Rear Quarter Trim
    G01814510Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear accessory panel, for the left side quarter panel. Refer to Accessory Panel Replacement - Rear .
  6. Remove the seat belt retractor retainer bolt. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .
  7. Remove the upper cargo net retainers.
  8. Remove the liftgate sill plate. Refer to Door Sill Plate Replacement - Lift Gate .
  9. Remove the rear quarter trim panel retainers using J 38778.
  10. Remove the rear quarter trim panel from the vehicle.
