Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install rear quarter trim panel to vehicle.
  2. Install the rear quarter trim retainers by alining the retainer with the holes and then pushing the retainers to secure.
  3. Install the upper cargo net retainers.
  4. Install the liftgate sill plate. Refer to Door Sill Plate Replacement - Lift Gate .
  5. Install the seat belt retractor retaining bolt. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR .
  6. Install the rear accessory panel, for the left side quarter panel. Refer to Accessory Panel Replacement - Rear .
  7. Install the cup holder to the rear quarter trim.
  8. Install the body side upper trim panel. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  9. Install the back body pillar trim. Refer to Garnish Molding Replacement - Rear Corner Upper .
  10. Install the rear seats. Refer to SEAT REPLACEMENT - REAR .

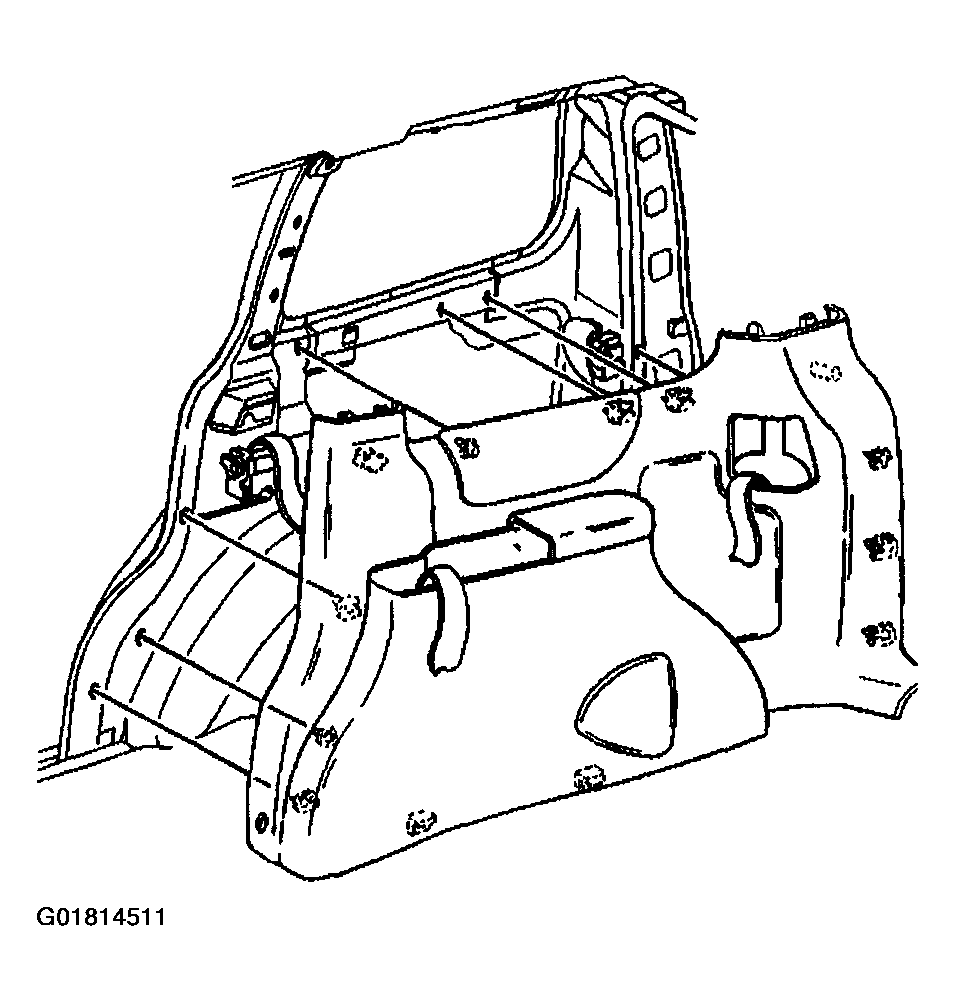

    Fig 1: Rear Accessory Panel & Left Side Quarter Panel
    G01814511Courtesy of GENERAL MOTORS CORP.
