Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

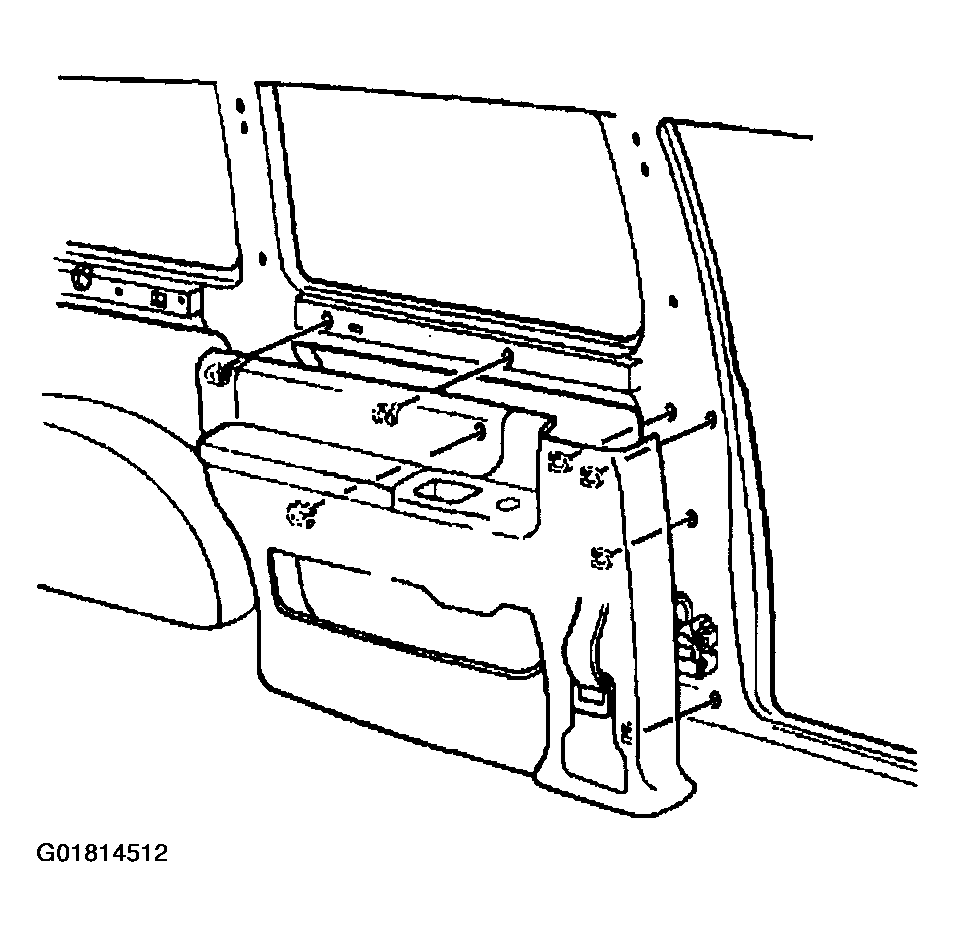

Fig 1: Removing Rear Quarter Trim Panel (Left Body Side Front)

Courtesy of GENERAL MOTORS CORP.

Tools Required

J 38778 Door Trim Pad Clip Remover

Remove the rear seats. Refer to SEAT REPLACEMENT - REAR .
Remove the rear quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower .
Remove the body pillar upper trim panel. Refer to Garnish Molding Replacement - Upper Pillar .
Remove the front door sill plate. Refer to Door Sill Plate Replacement (Door) or Door Sill Plate Replacement (Sliding Door) .
Remove the rear audio controls. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT (PONTIAC) or AUDIO CONTROL REPLACEMENT - REAR SEAT (OLDSMOBILE) .
Remove the body side front trim panel retainers using the J 38778.
Remove the body side front trim panel from the vehicle.
