Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

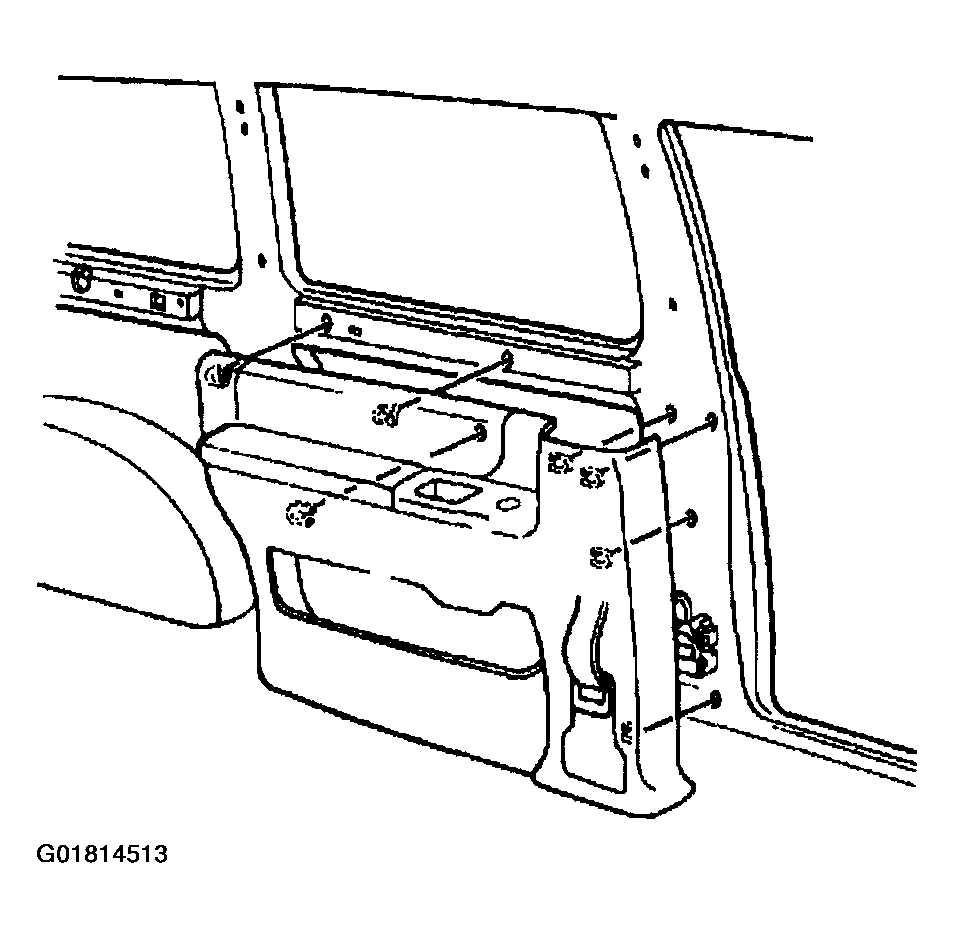

Fig 1: Installing Rear Quarter Trim Panel (Left Body Side Front)
G01814513Courtesy of GENERAL MOTORS CORP.
  1. Install the body side front trim panel to the vehicle.
  2. Install the body side front trim panel retainers by aligning the retainers to the holes and pushing in on the retainers to secure them.
  3. Install the rear audio controls. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT (PONTIAC) or AUDIO CONTROL REPLACEMENT - REAR SEAT (OLDSMOBILE) .
  4. Install the front door sill plate. Refer to Door Sill Plate Replacement (Door)  or Door Sill Plate Replacement (Sliding Door) .
  5. Install the body pillar upper trim panel. Refer to Garnish Molding Replacement - Upper Pillar .
  6. Install the rear quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower .
  7. Install the rear seats. Refer to SEAT REPLACEMENT - REAR .
