Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Door Sill Plate Replacement (Door)  or Door Sill Plate Replacement (Sliding Door)
  2. Remove the cowl side trim panel retainers using the J 38778.
  3. Remove the cowl side trim panel from the vehicle.

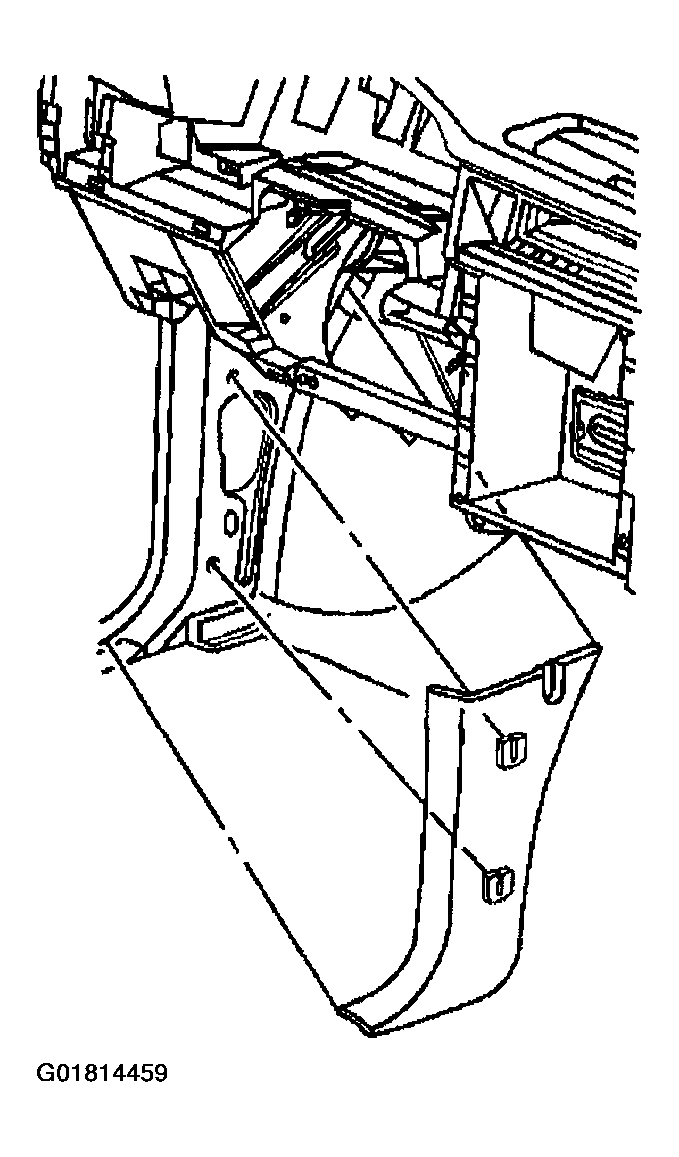

    Fig 1: Removing Cowl Side Trim Panel & Retainers
    G01814459Courtesy of GENERAL MOTORS CORP.
