Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cowl side trim panel to the vehicle by aligning the trim panel with the slots in the cowl.
  2. Install the cowl side trim panel retainers by pushing in on the panel to secure.
  3. Install the front door sill plate. Refer to Door Sill Plate Replacement (Door)  or Door Sill Plate Replacement (Sliding Door) .

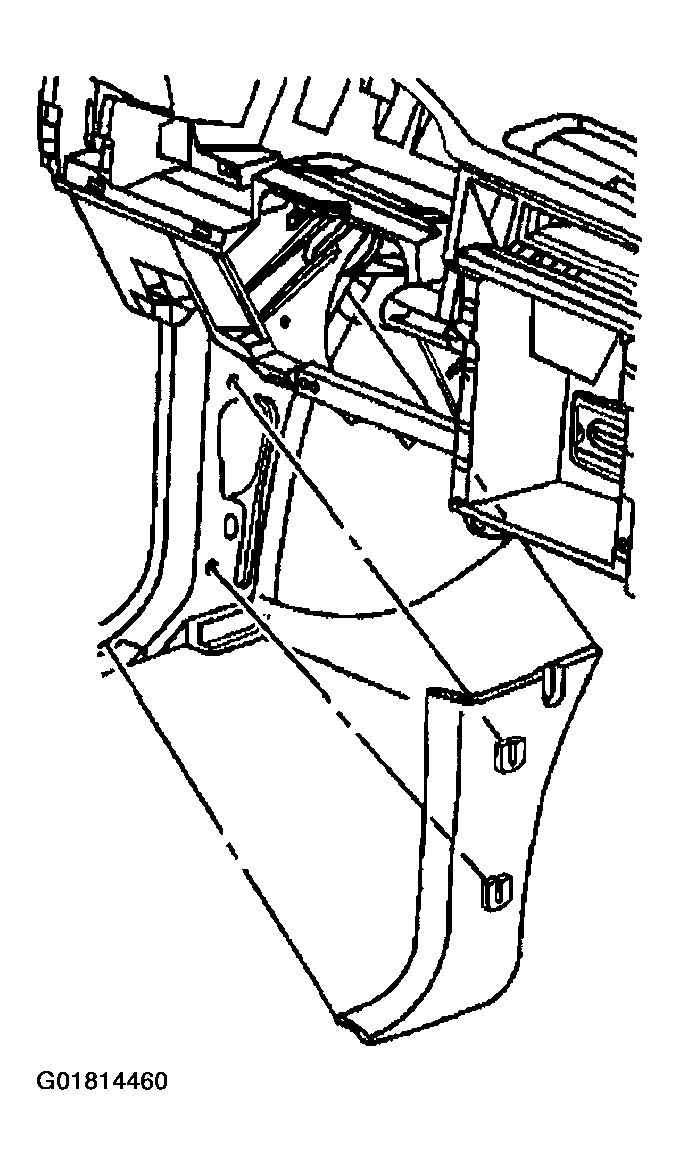

    Fig 1: Installing Cowl Side Trim Panel & Retainers
    G01814460Courtesy of GENERAL MOTORS CORP.
