Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unhook the sunshade from the retainer.
  2. Remove the sunshade retainer screw.
  3. Pull the sunshade retainer from the headliner.

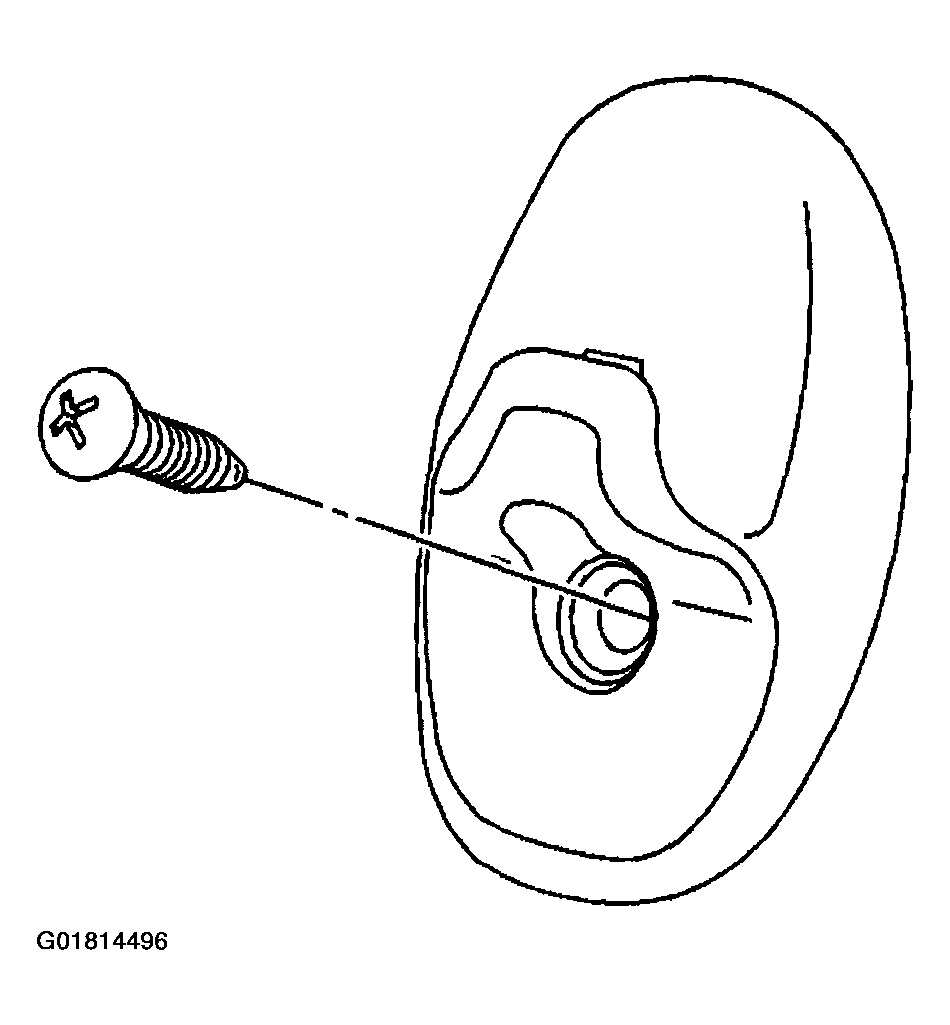

    Fig 1: Removing Sunshade Retainer Screw
    G01814496Courtesy of GENERAL MOTORS CORP.
