Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

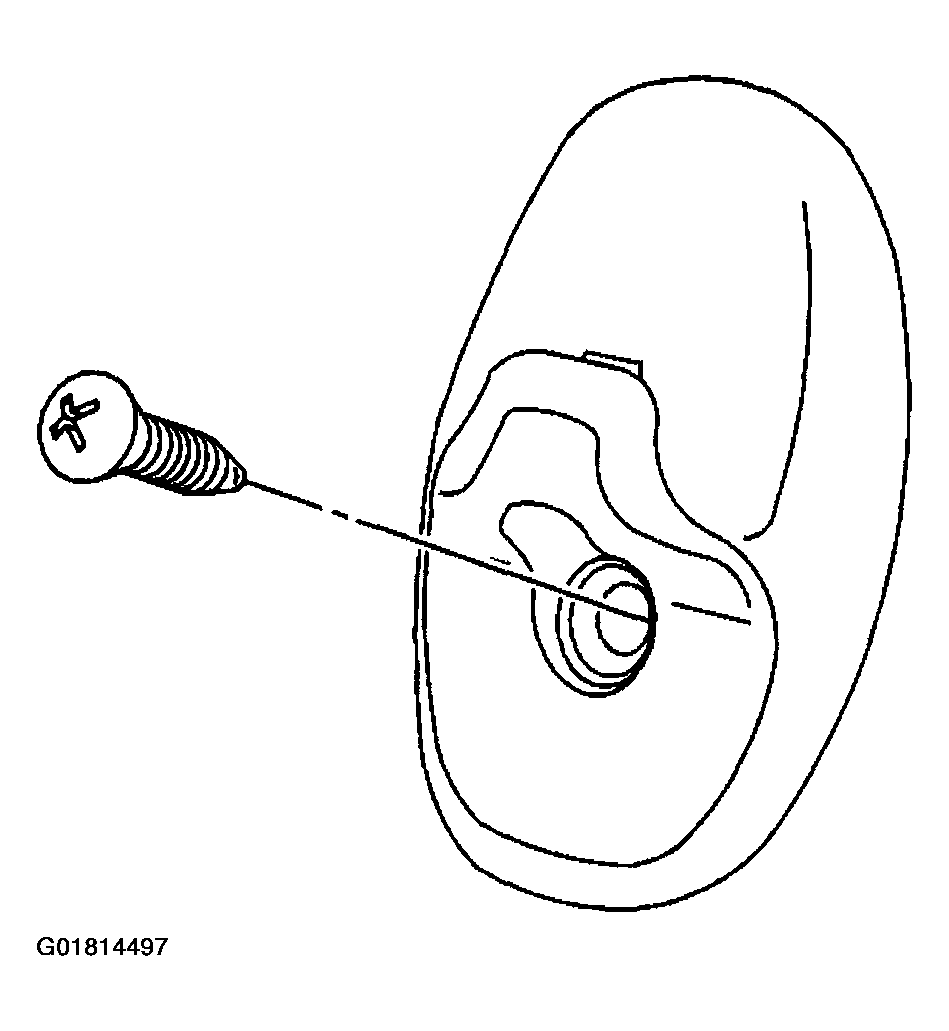

Fig 1: Installing Sunshade Retainer Screw
G01814497Courtesy of GENERAL MOTORS CORP.
  1. Push the sunshade retainer to the headliner.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the sunshade retainer screw.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).
