Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

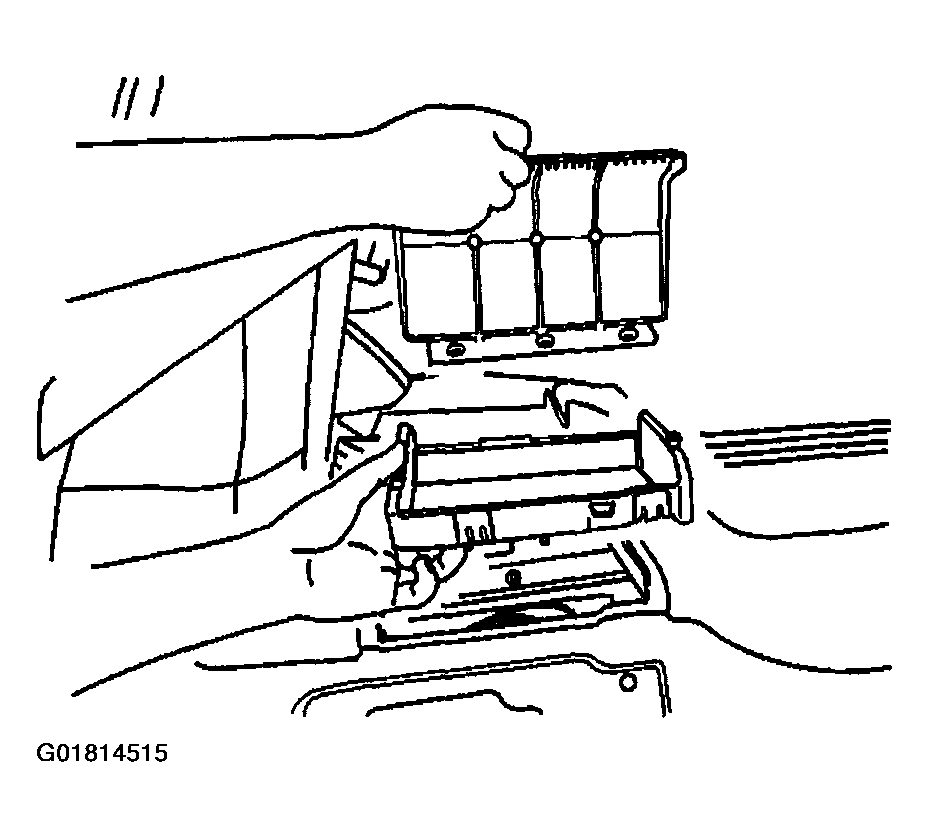

Fig 1: Install Trim Panel & Press Firmly Into Tabs
G01814515Courtesy of GENERAL MOTORS CORP.
  1. Install the trim panel and press firmly into the tabs.
    NOTE: Refer to FASTENER NOTICE .
  2. Align the cover and fasten the screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).
