Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down on the rear headliner trim finish molding in order to disengage the retaining tabs and clips from the retainer.
  2. Remove the rear headliner trim finish molding from the retainer in the roof.

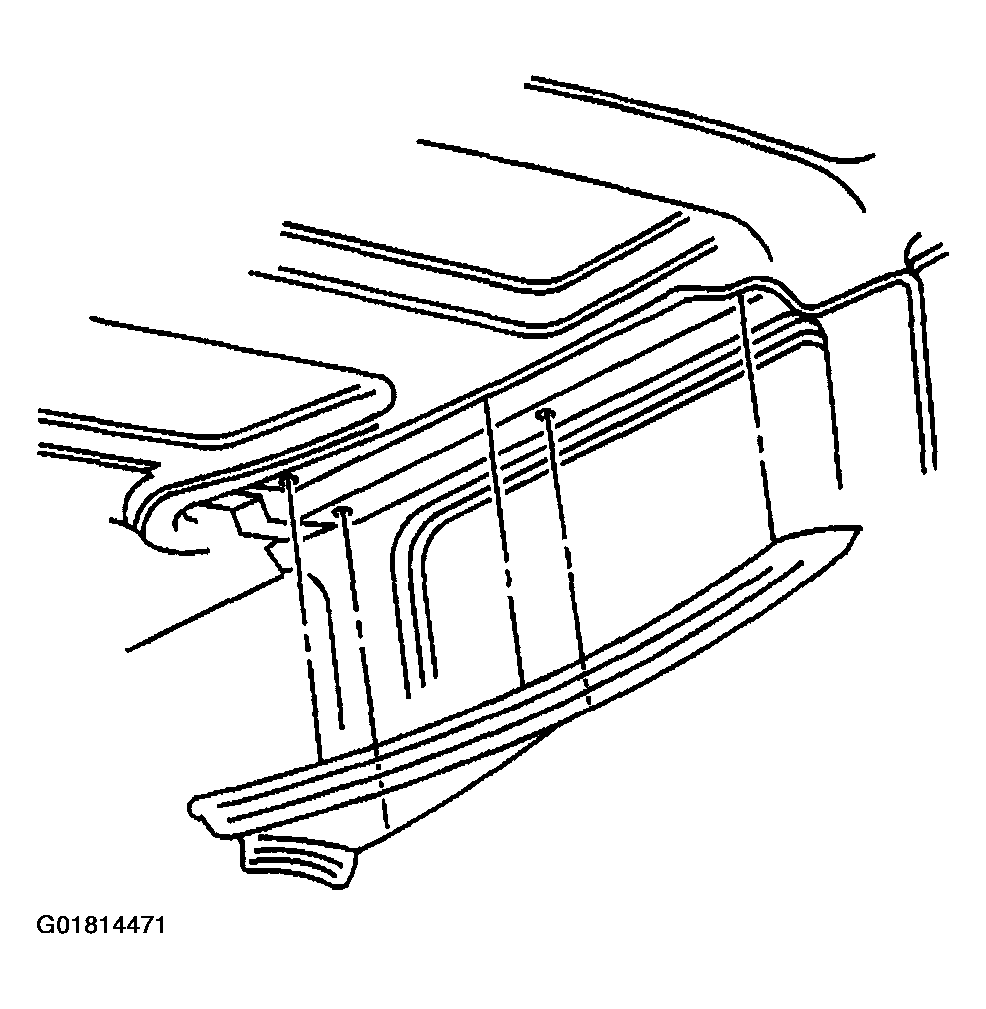

    Fig 1: Removing Rear Headliner Trim Finish Molding
    G01814471Courtesy of GENERAL MOTORS CORP.
