Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt shoulder belt guide loop. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT .
  2. Remove the body pillar upper trim panel retainers using the J 38778.
  3. Remove the body pillar upper trim panel from the vehicle.

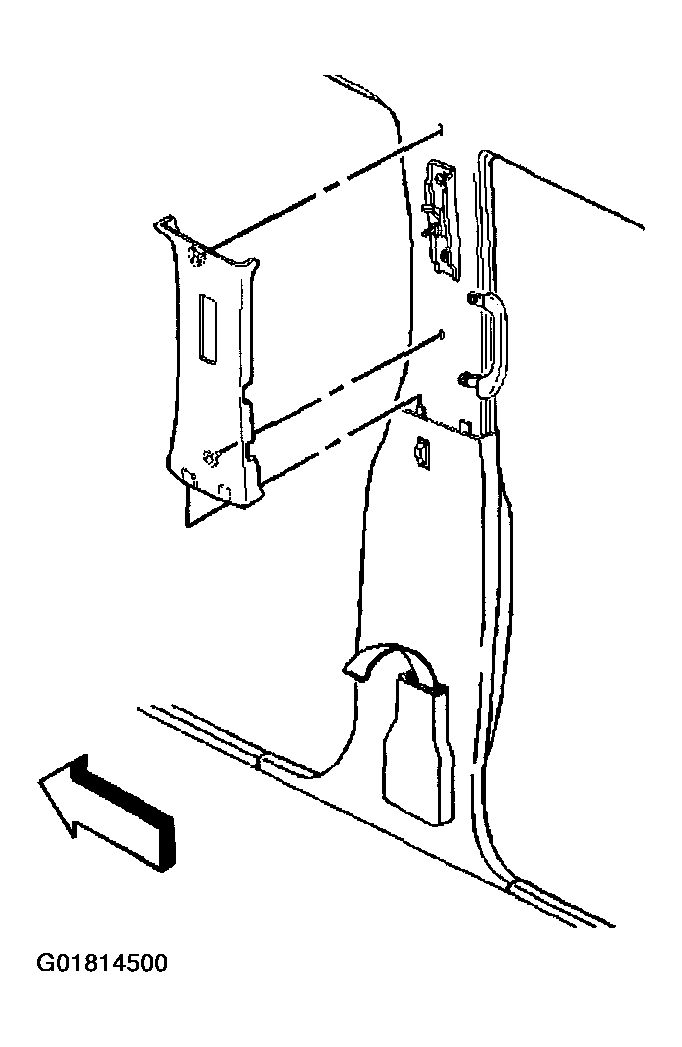

    Fig 1: Removing Body Pillar Upper Trim Panel Retainers
    G01814500Courtesy of GENERAL MOTORS CORP.
