Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body pillar upper trim panel to the vehicle by aligning the locator tabs.
  2. Align the body pillar upper trim panel retainers to the holes and pushing in on the retainers to secure them.
  3. Install door opening seals to edge of body pillar upper trim panel.
  4. Install the seat belt shoulder belt guide loop. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT .

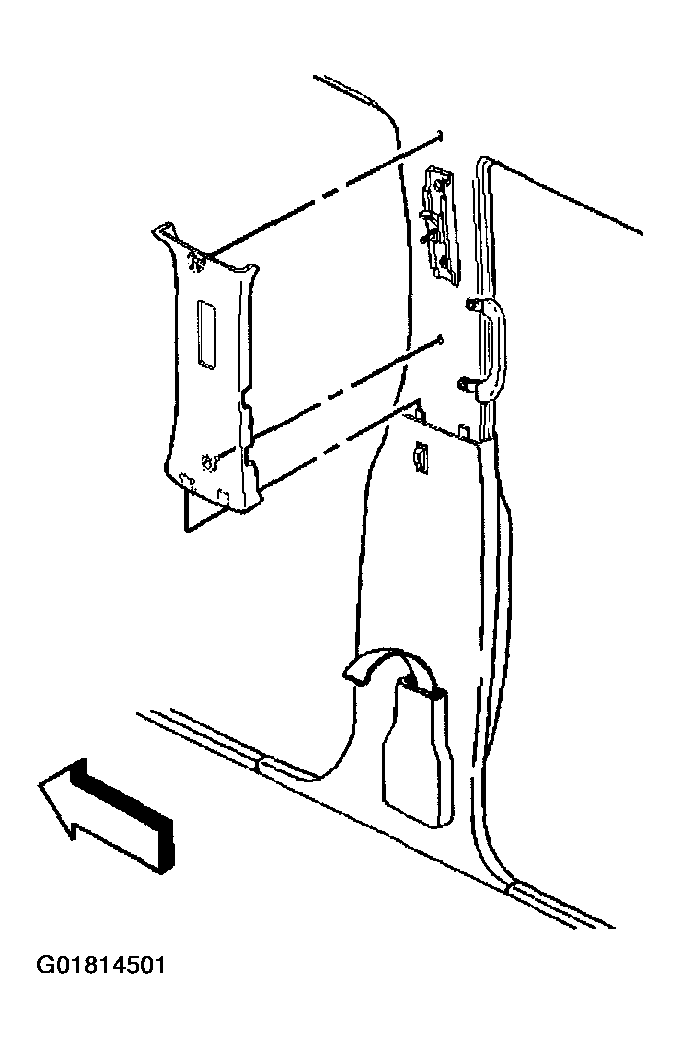

    Fig 1: Installing Body Pillar Upper Trim Panel Retainers
    G01814501Courtesy of GENERAL MOTORS CORP.
