Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully pull the sliding door garnish molding away from the sliding door in order to release the clips.

    Be sure not to damage the garnish molding.

  2. Remove the sliding door molding from the sliding door.

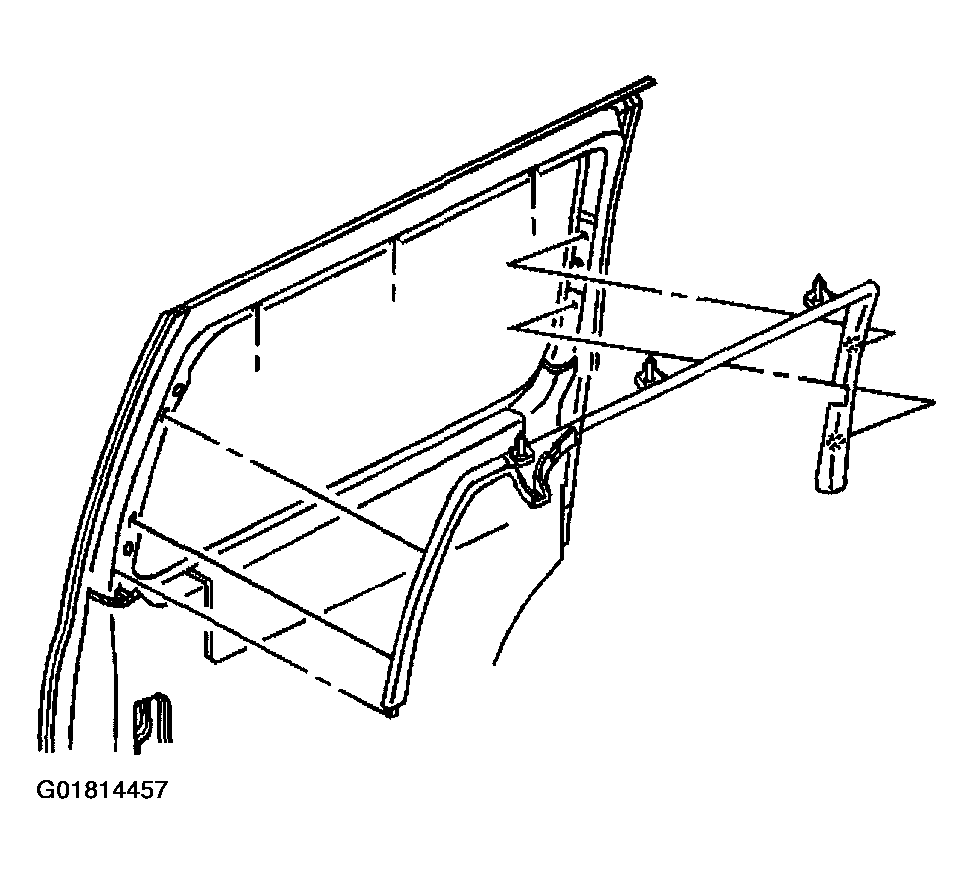

    Fig 1: Removing Sliding Door Molding
    G01814457Courtesy of GENERAL MOTORS CORP.
