Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt shoulder belt guide loop. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT .
  2. Use the J 38778.

    Important:  Use care to not break the locating tabs on the quarter trim when removing the back body pillar trim.

  3. Remove the back body pillar trim from the vehicle.

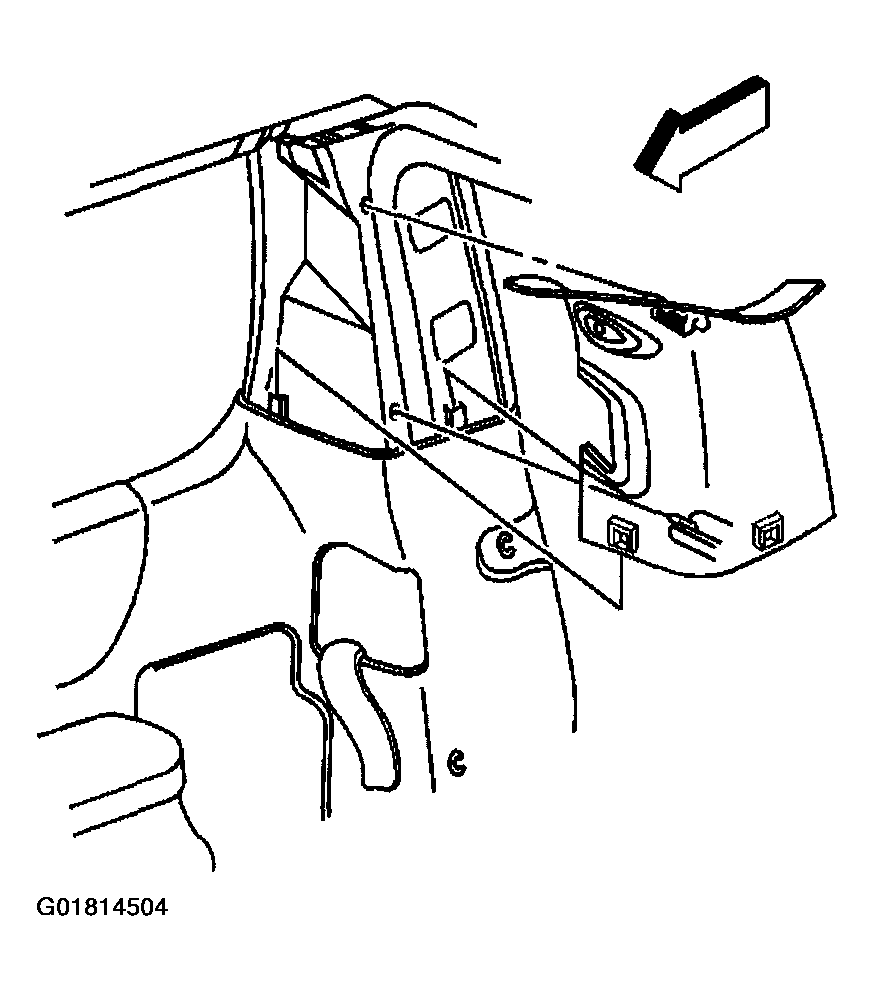

    Fig 1: Removing Seat Belt Shoulder Belt Guide Loop
    G01814504Courtesy of GENERAL MOTORS CORP.
