Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body pillar lower trim panel from the vehicle.
  2. Install the body pillar lower trim panel retainers by aligning the retainers with the holes and pushing in on the retainers to secure.
  3. Install the body pillar upper trim panel. Refer to Garnish Molding Replacement - Upper Pillar .
  4. Install the side door sill plate. Refer to Door Sill Plate Replacement (Door)  or Door Sill Plate Replacement (Sliding Door) .
  5. Install the front door sill plate. Refer to Door Sill Plate Replacement (Door)  or Door Sill Plate Replacement (Sliding Door) .
  6. Install door opening seals to edges of body pillar lower trim panel.

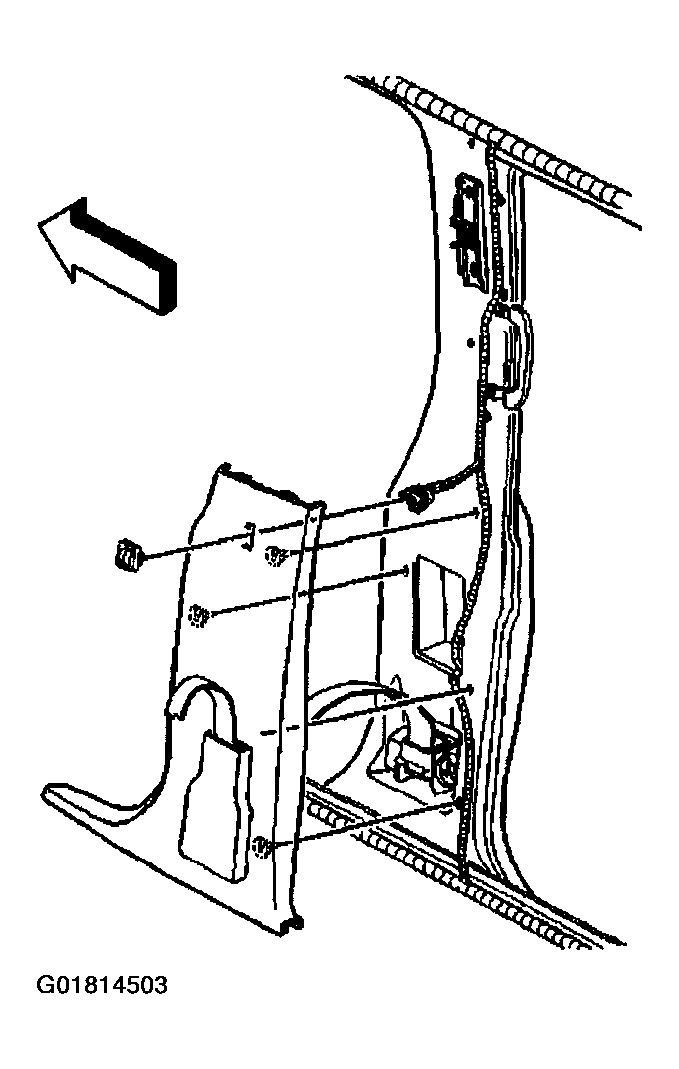

    Fig 1: Installing Side Door Sill Plate & Screws
    G01814503Courtesy of GENERAL MOTORS CORP.
