Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt shoulder belt guide loop. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT .
  2. Remove the body pillar upper trim panel retainers using the J 38778.
  3. Remove the body pillar upper trim panel by pulling the panel from the locator tabs.

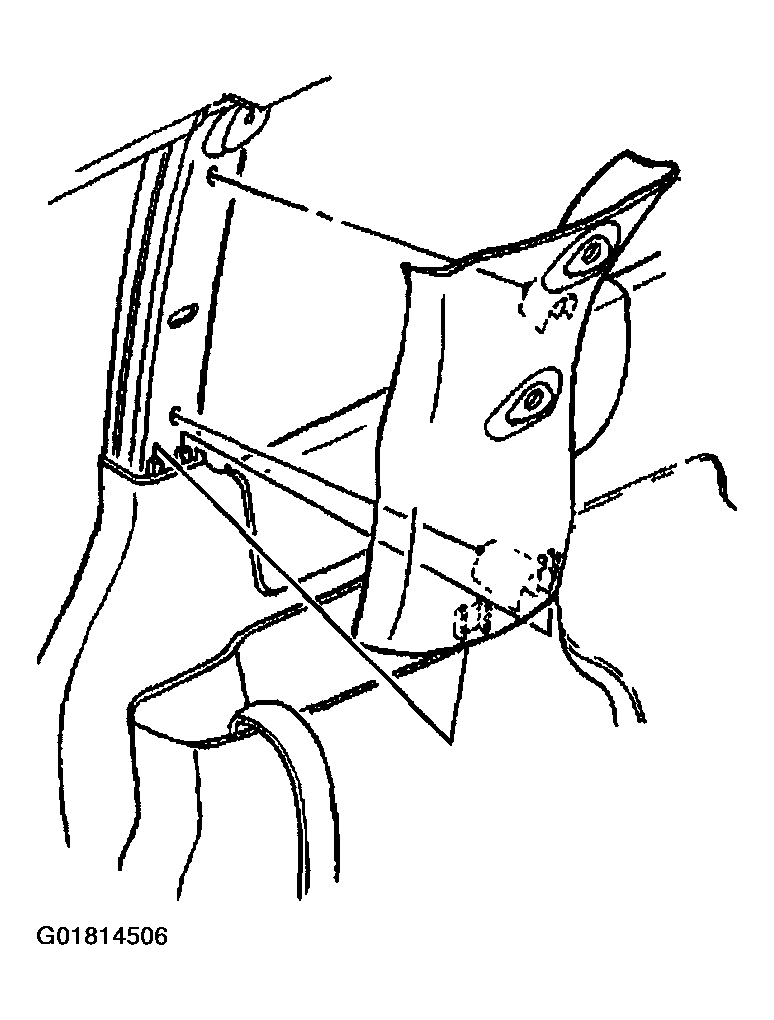

    Fig 1: Removing Body Pillar Upper Trim Panel Retainers (Body Side Rear Upper)
    G01814506Courtesy of GENERAL MOTORS CORP.
