Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the locator tabs on the body pillar upper trim panel with the rear quarter trim panel.
  2. Align the body pillar upper trim panel retainers with the holes and push to secure the panel to the vehicle.
  3. Align the slider door seal to the body pillar upper trim panel if applicable.
  4. Install the seat belt shoulder belt guide loop. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FRONT .

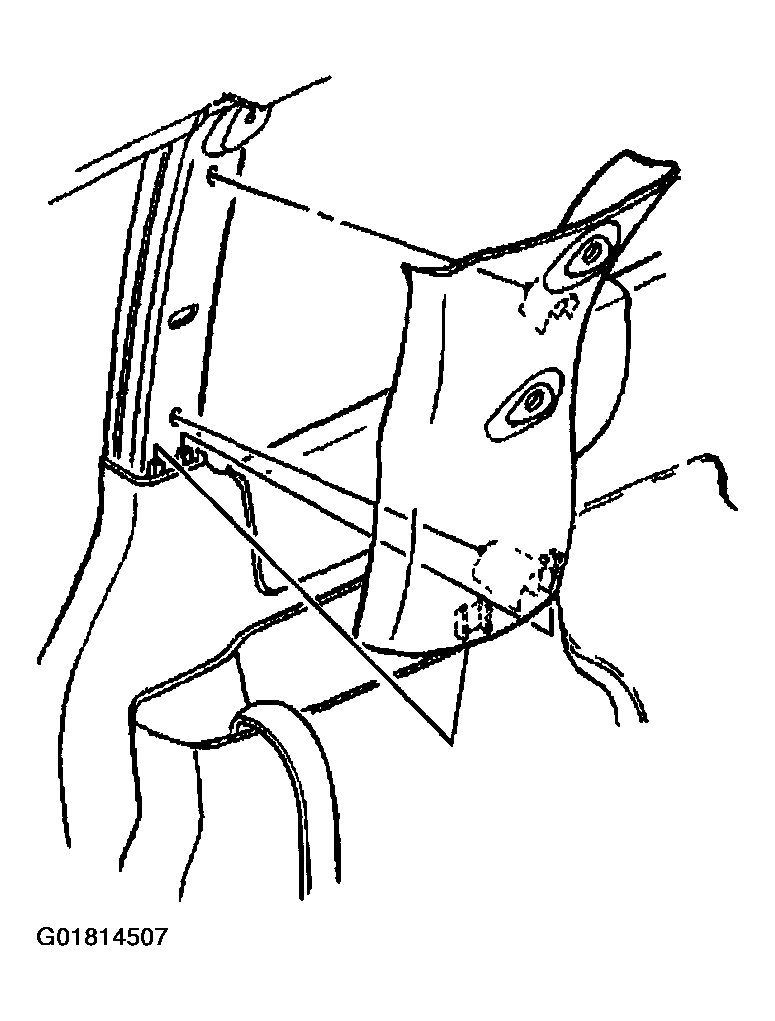

    Fig 1: Installing Body Pillar Upper Trim Panel Retainers (Body Side Rear Upper)
    G01814507Courtesy of GENERAL MOTORS CORP.
