Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate
  2. Remove the sill plate by pulling it from the floor of the vehicle

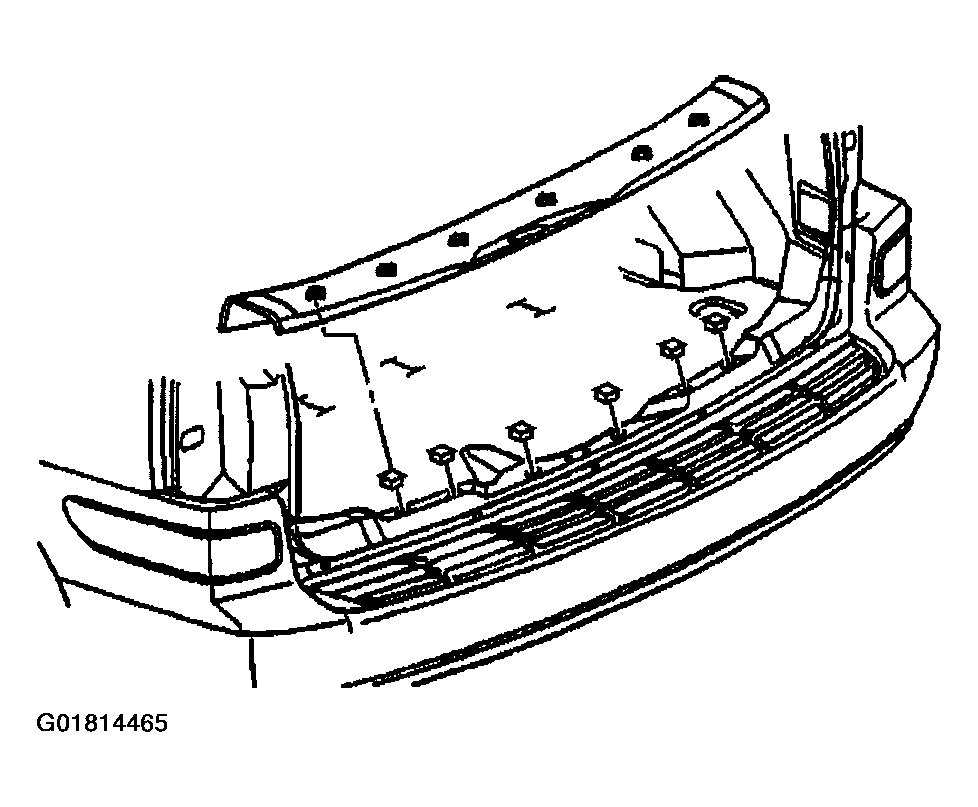

    Fig 1: Removing Lift Gate Sill Plate
    G01814465Courtesy of GENERAL MOTORS CORP.
