Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sliding door-opening carpet retainer (1) from the carpet retainer(s) support using the J 38778.

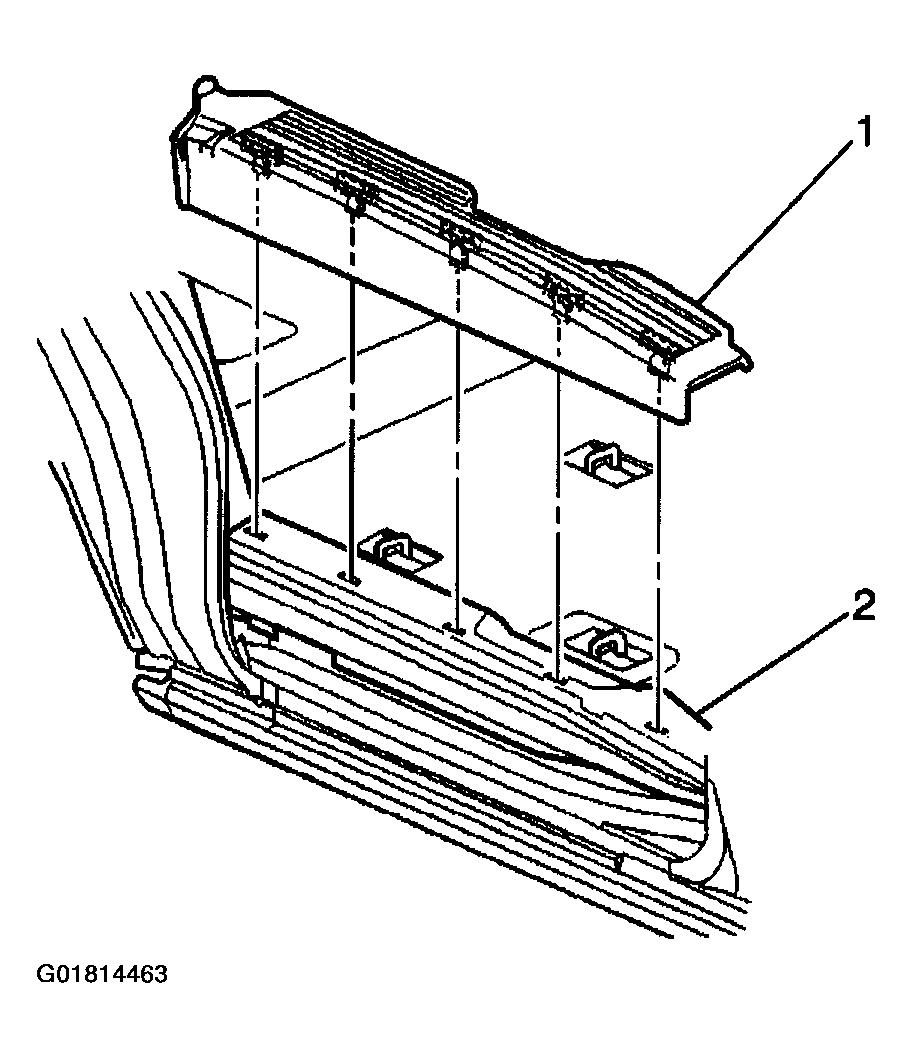

Fig 1: Removing Sliding Door-Opening Carpet & Retainer
G01814463Courtesy of GENERAL MOTORS CORP.
