Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

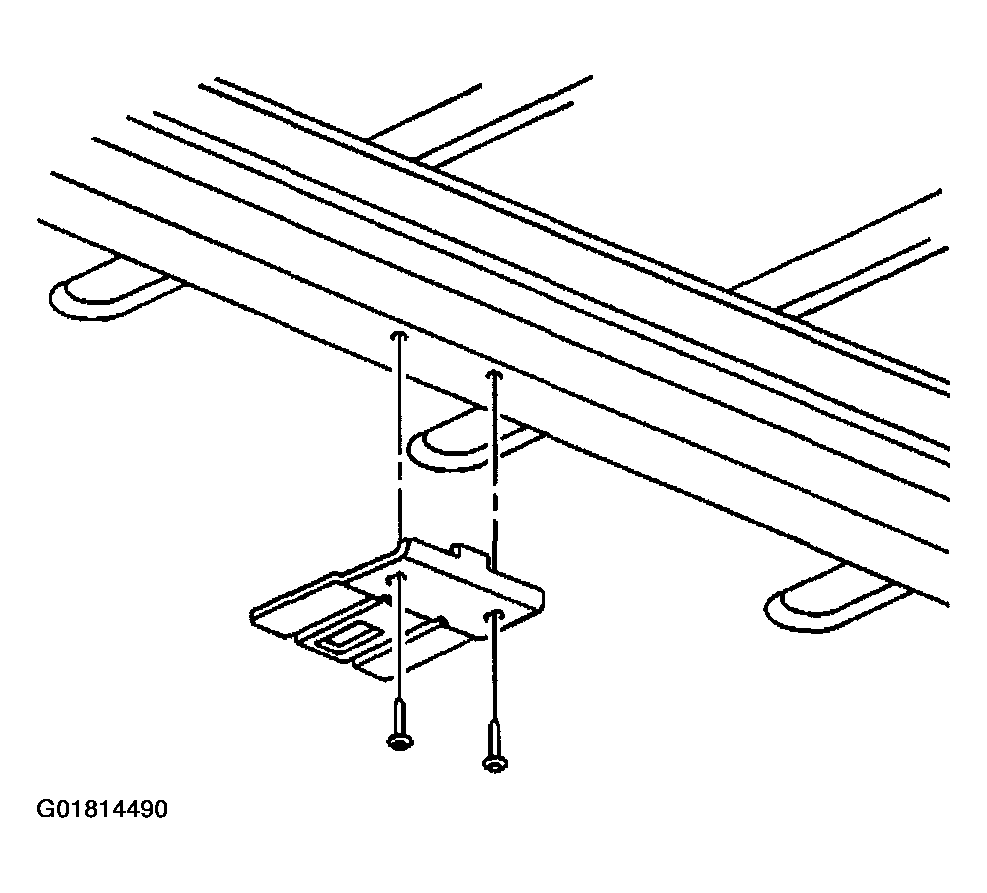

Fig 1: Removing Screws & Overhead Console Bracket (Single Storage)
G01814490Courtesy of GENERAL MOTORS CORP.
  1. Remove the overhead console. Refer to Console Replacement - Overhead (Single)  or Console Replacement - Overhead (Dual)  or Console Replacement - Overhead (CF5) .
  2. Remove the screws from the overhead console bracket.
  3. Remove the overhead console bracket from the roof.
