Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

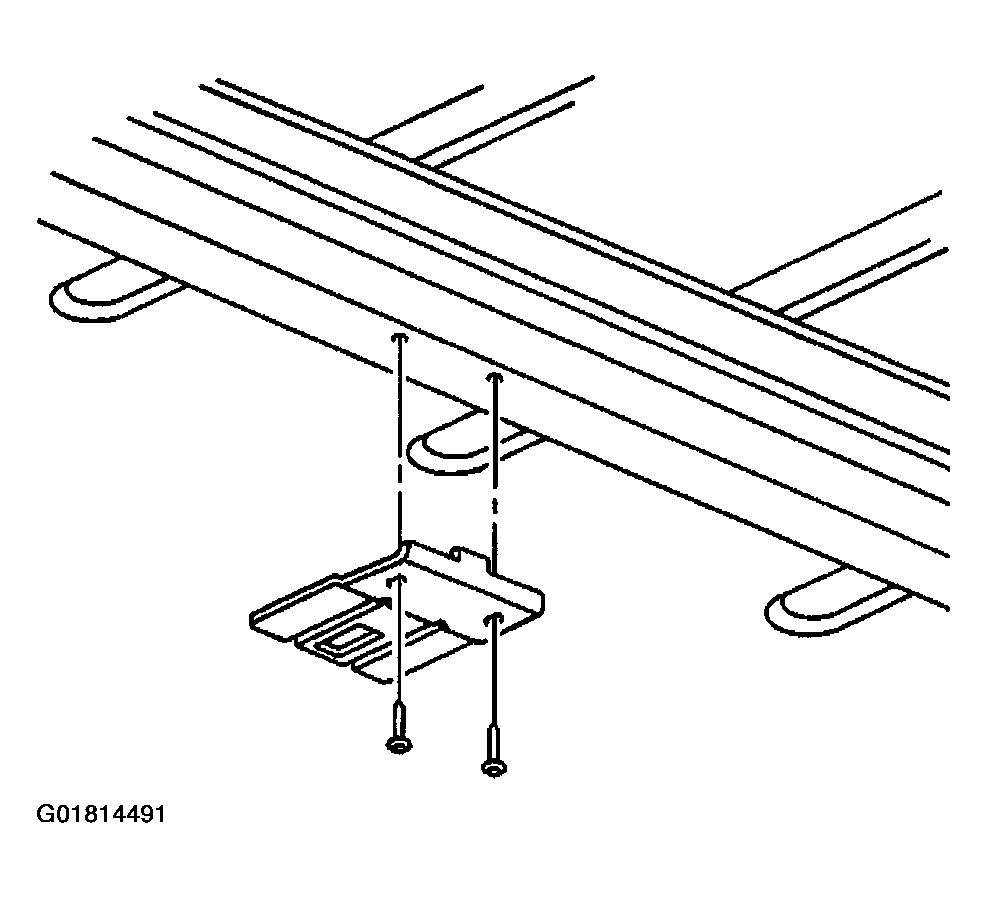

Fig 1: Installing Screws & Overhead Console Bracket (Single Storage)
G01814491Courtesy of GENERAL MOTORS CORP.
  1. Install the overhead console bracket tot he roof.
  2. Install the overhead console bracket to the roof until secure.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the overhead console bracket.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the overhead console. Refer to Console Replacement - Overhead (Single)  or Console Replacement - Overhead (Dual)  or Console Replacement - Overhead (CF5) .
