Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the overhead console bracket to the roof.
  2. Install the overhead console bracket to the roof.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the overhead console bracket.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the overhead console. Refer to Console Replacement - Overhead (Single)  or Console Replacement - Overhead (Dual)  or Console Replacement - Overhead (CF5) .

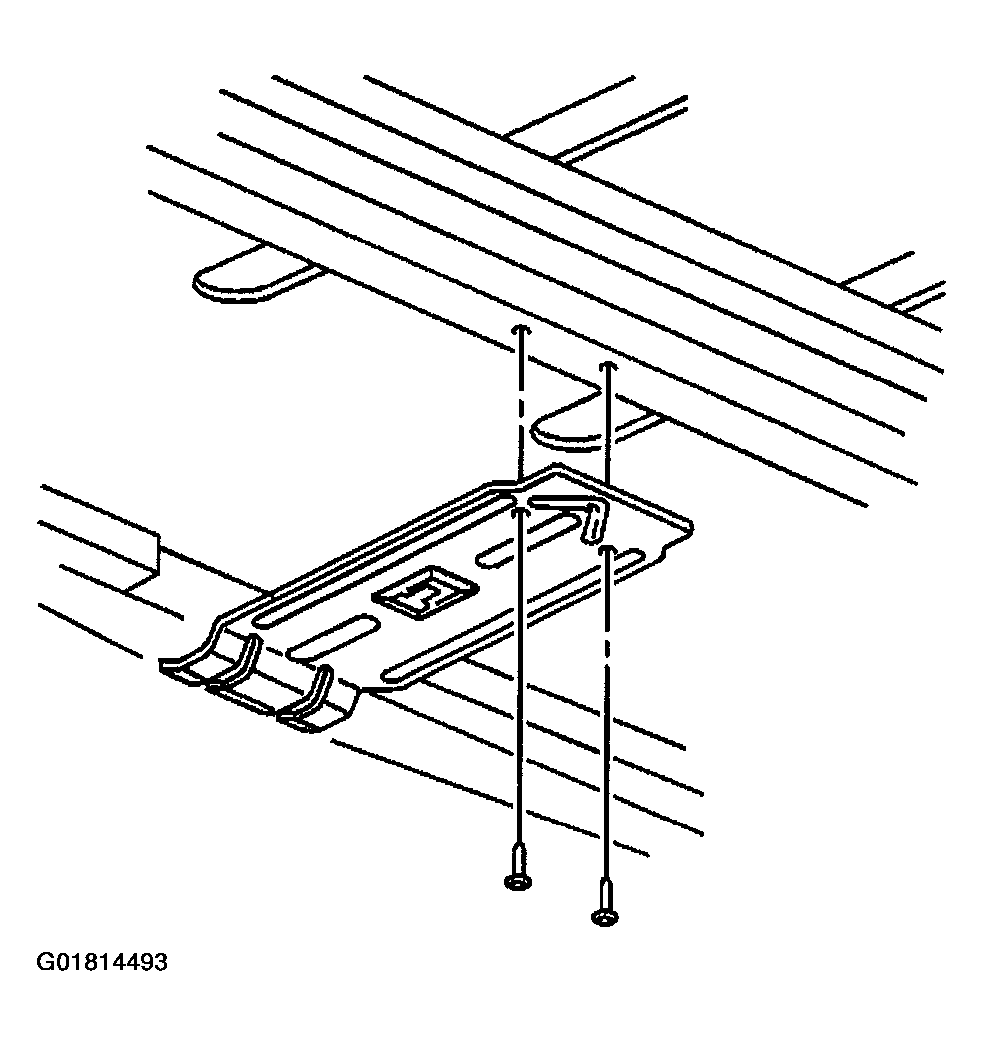

    Fig 1: Installing Screws & Overhead Console Bracket (Dual Storage)
    G01814493Courtesy of GENERAL MOTORS CORP.
