Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the push-in retainer to the overhead console post to keep the 2 halves of the overhead console together (single storage).
  2. Press the overhead console into the headliner.
  3. Install the locking nuts to the locating posts.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screw to the rear of the overhead console.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  5. Install the headliner. Refer to Headliner Replacement .

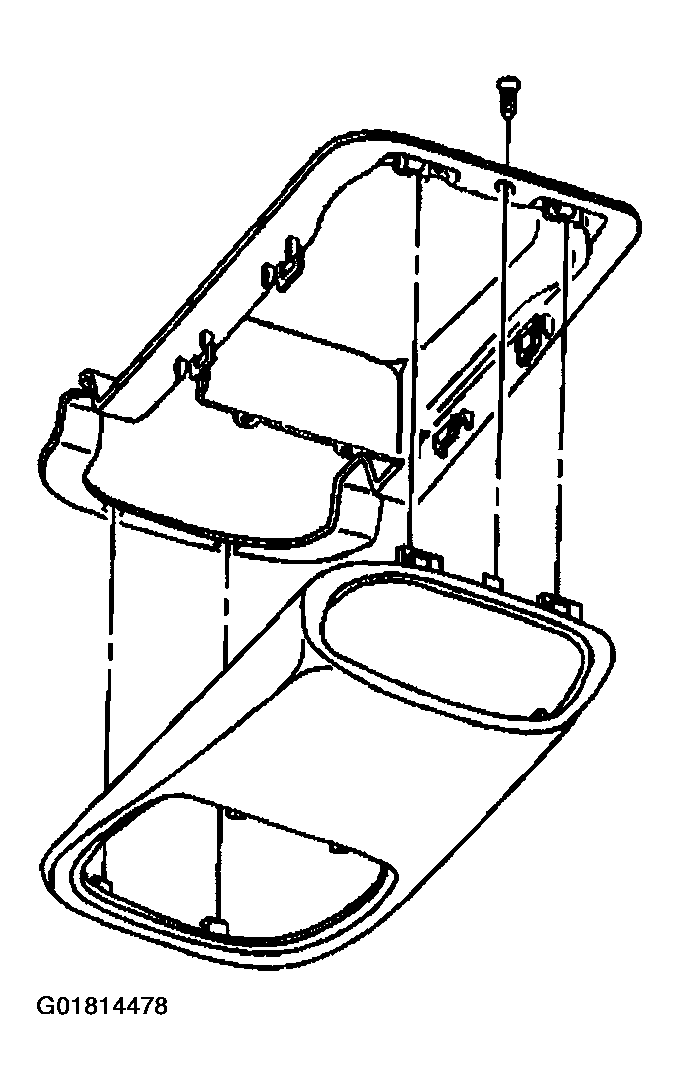

    Fig 1: Installing Screw & Rear Of Overhead Console (Single)
    G01814478Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connectors to the interior lamp/multifunction switch.
  7. Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console.
  8. Press up on the interior lamp/multifunction switch/reading lamp housing in order to press the housing into the overhead console.

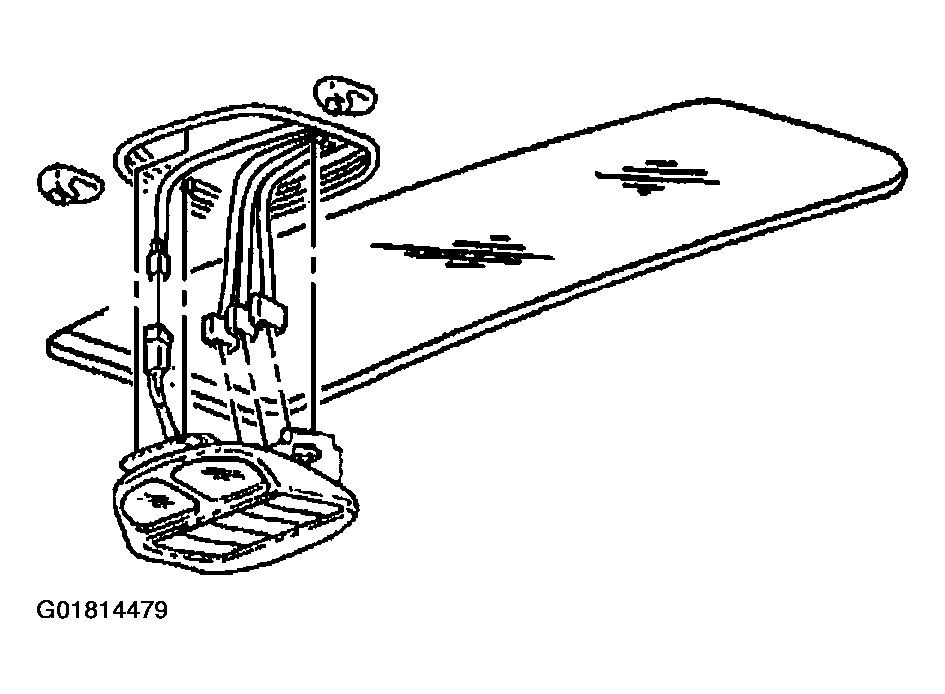

    Fig 2: Connecting Electrical Connectors To Interior Lamp/Multifunction Switch (Single)
    G01814479Courtesy of GENERAL MOTORS CORP.
