Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, flat-bladed tool between the interior lamp/multifunction switch/reading lamp housing and the overhead console.
  2. Press inward and down in order to release the interior lamp/multifunction switch/reading lamp housing from the overhead console.

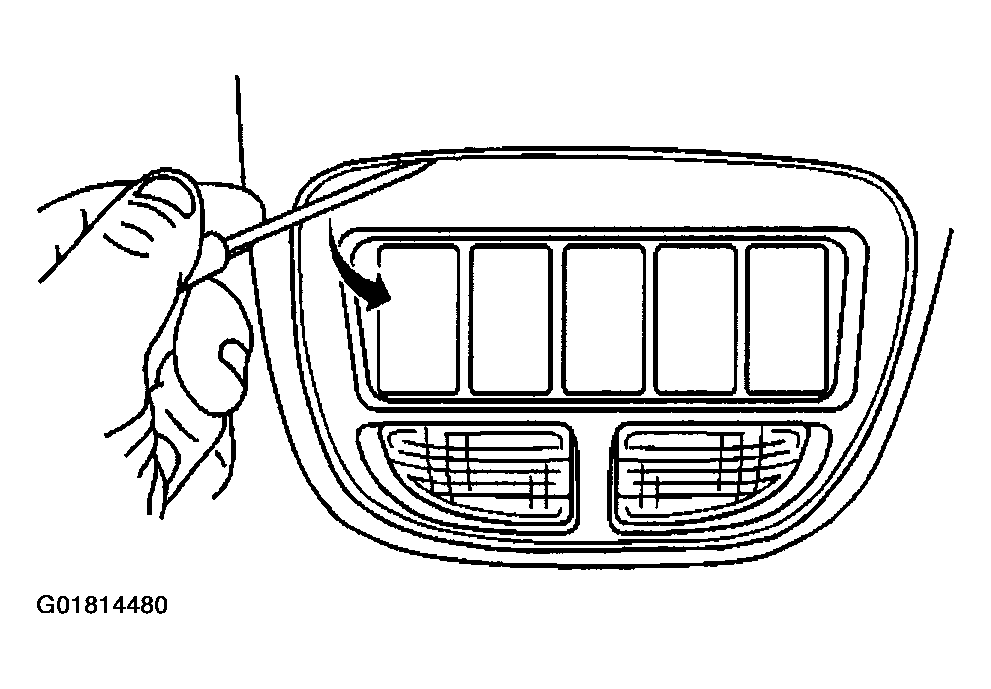

    Fig 1: Removing Interior Lamp/Multifunction Switch/Reading Lamp Housing Using A Flat-Bladed Tool (Dual)
    G01814480Courtesy of GENERAL MOTORS CORP.
  3. Remove the interior lamp/multifunction switch/reading lamp housing from the overhead console.
  4. Disconnect the electrical connectors from the interior lamp/multifunction switch.

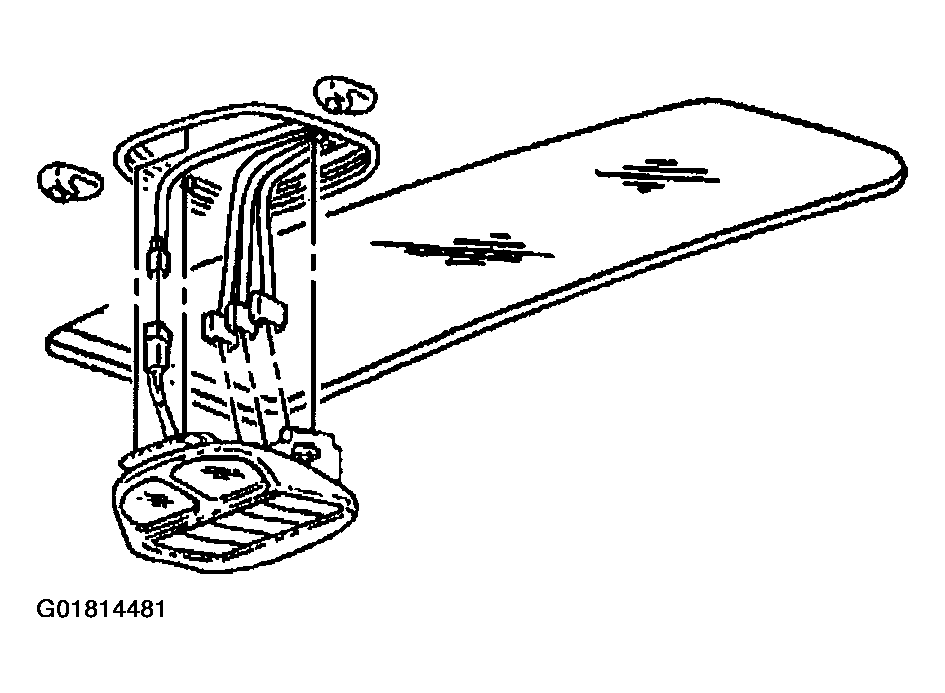

    Fig 2: Disconnecting Electrical Connectors From Interior Lamp/Multifunction Switch (Dual)
    G01814481Courtesy of GENERAL MOTORS CORP.
  5. Remove the screw from the front of the overhead console.
  6. Open the rear storage compartment in the overhead console in order to access the rear screws.
  7. Remove the screws from the rear of the front overhead console.
  8. Remove the overhead console from the headliner.
  9. Remove the driver information center. Refer to DRIVER INFORMATION CENTER REPLACEMENT .

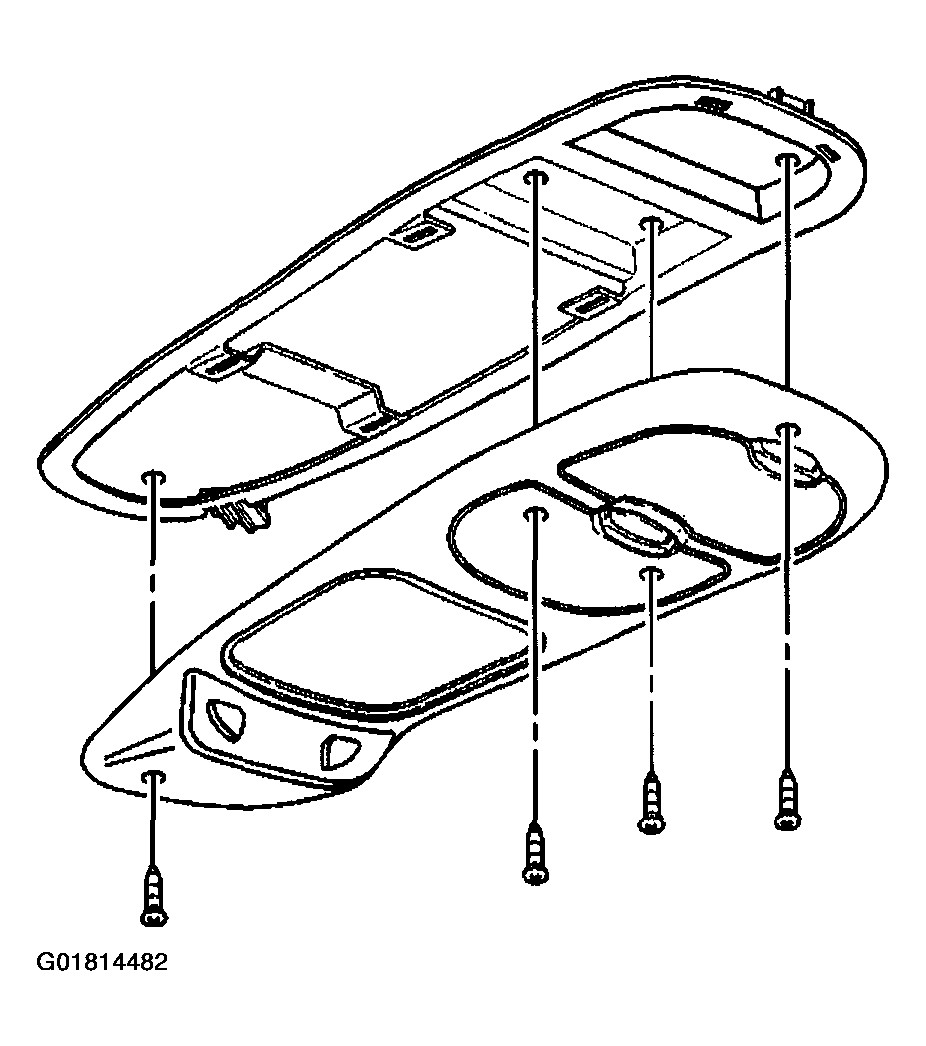

    Fig 3: Removing Screws & Rear Of Front Overhead Console (Dual)
    G01814482Courtesy of GENERAL MOTORS CORP.
