Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seats. Refer to SEAT REPLACEMENT - REAR .
  2. Remove the locking clips from the bezel using a curved pick tool.
  3. Remove the anchor plate bezel (1) from the floor.

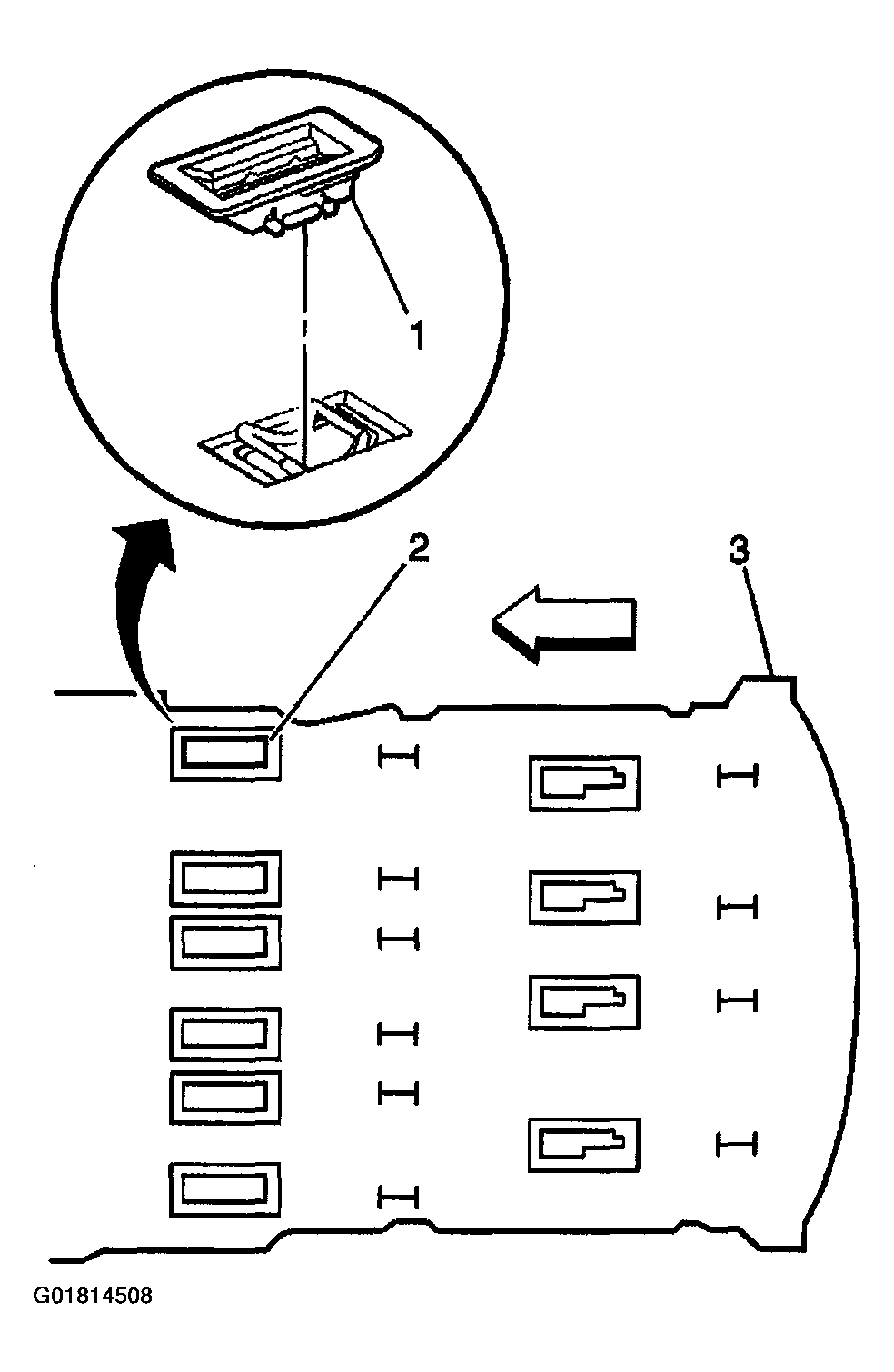

    Fig 1: Removing Anchor Plate Bezel
    G01814508Courtesy of GENERAL MOTORS CORP.
