Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

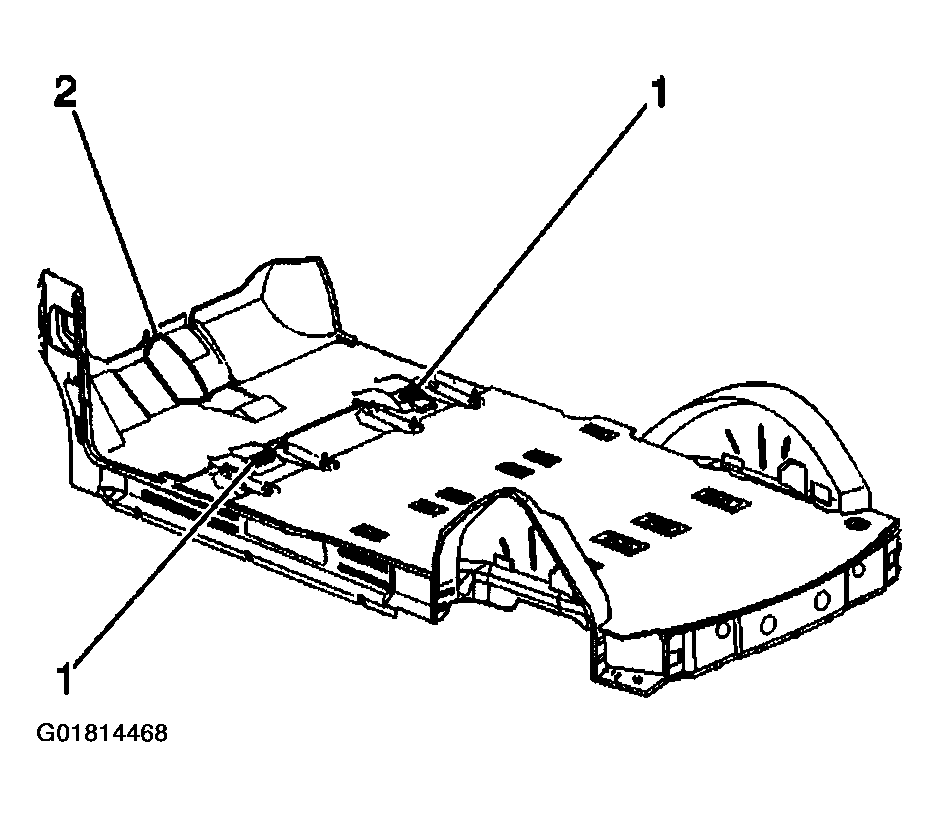

  1. Install the carpet (2) to the vehicle.
  2. Install the left and the right quarter trim. Refer to Trim Panel Replacement - Rear Quarter Lower .
  3. Install the lower IP cowl panels. Refer to Trim Panel Replacement - Cowl Side .
  4. Install the left trim panel and install the right trim panel to the side center pillar. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  5. Install the center floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR .
  6. Install the rear liftgate sill plate. Refer to Door Sill Plate Replacement - Lift Gate .
  7. Install the sliding door sill plate. Refer to Door Sill Plate Replacement (Door)  or Door Sill Plate Replacement (Sliding Door) .
    Fig 1: Installing Left/Right Front Door Sill Plates
    G01814468Courtesy of GENERAL MOTORS CORP.
  8. Install the left and the right front door sill plates. Refer to Door Sill Plate Replacement (Door)  or Door Sill Plate Replacement (Sliding Door) .
  9. Install the convenience net retainers to the floor, if equipped.
  10. Install the anchor plate bezels. Refer to Carpet Trim Plate Replacement - Rear Floor .
  11. Install the rear seats. Refer to SEAT REPLACEMENT - REAR .
  12. Install the front seats. Refer to SEAT REPLACEMENT - BUCKET .
