Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body pillar upper trim panel. Refer to Garnish Molding Replacement - Upper Pillar .
  2. Remove the assist handle retaining bolts.
  3. Remove the assist handle from the vehicle.

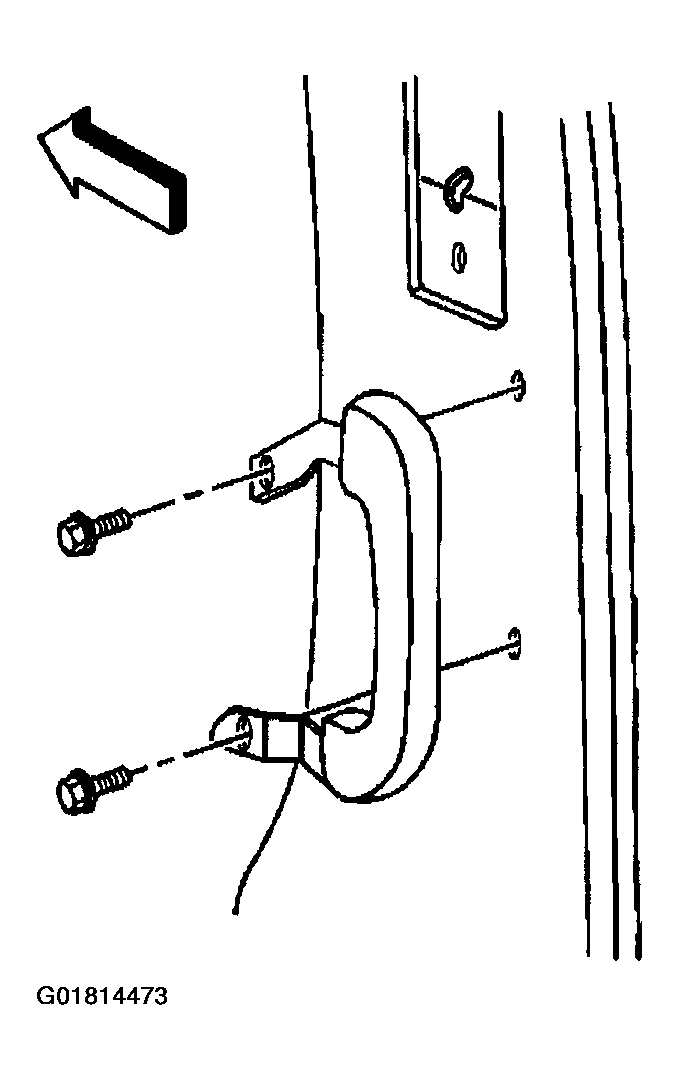

    Fig 1: Removing Assist Handle & Retaining Bolts
    G01814473Courtesy of GENERAL MOTORS CORP.
