Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the assist handle to the vehicle
    NOTE: Refer to FASTENER NOTICE .
  2. Install the assist handle retaining bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the body pillar upper trim panel. Refer to Garnish Molding Replacement - Upper Pillar .

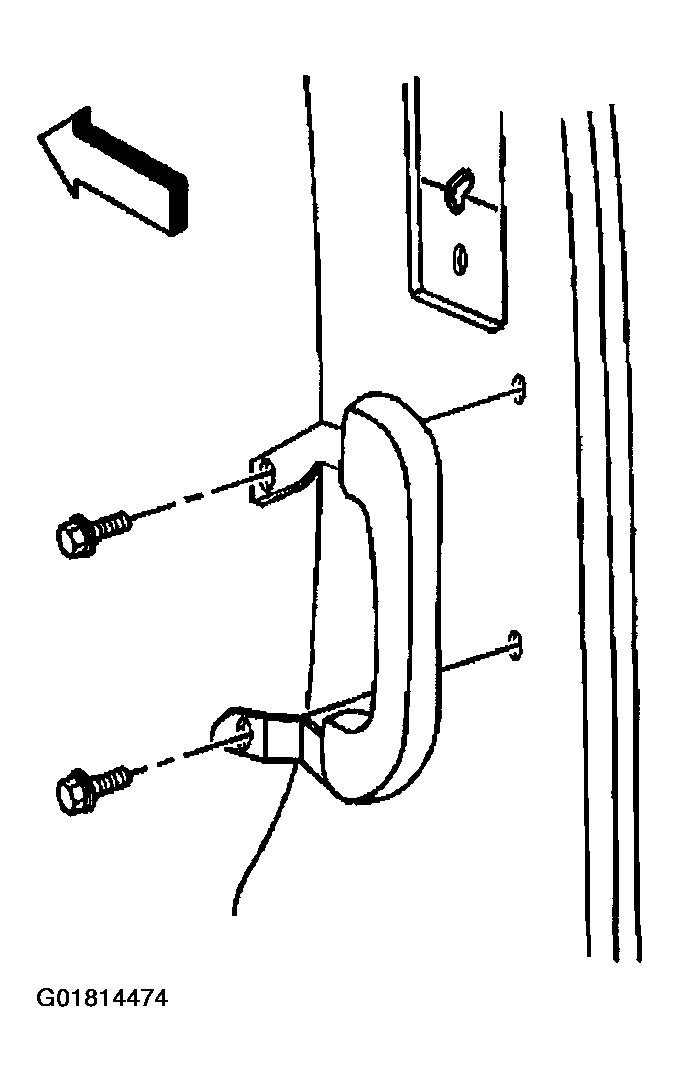

    Fig 1: Installing Assist Handle & Retaining Bolts
    G01814474Courtesy of GENERAL MOTORS CORP.
