Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the panel cover using the latch and remove the cover from the hinges.
  2. Remove the screws holding the assembly panel plate.
  3. Remove the trim panel.
  4. Disconnect the electrical connector.

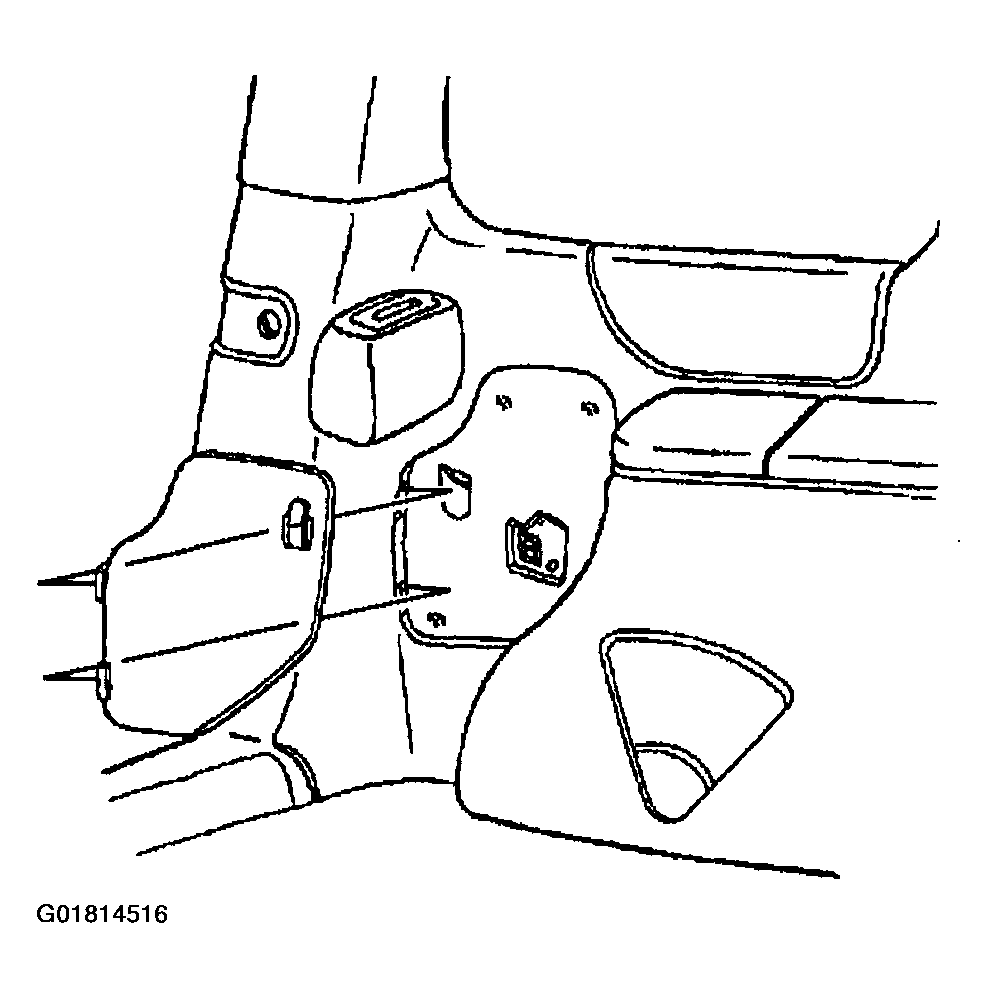

    Fig 1: Removing Screws & Assembly Panel Plate
    G01814516Courtesy of GENERAL MOTORS CORP.
