Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the power outlet.
  2. Install the trim panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws on the plate securing the cover of the panel assembly.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the cover on the hinges and close the cover.

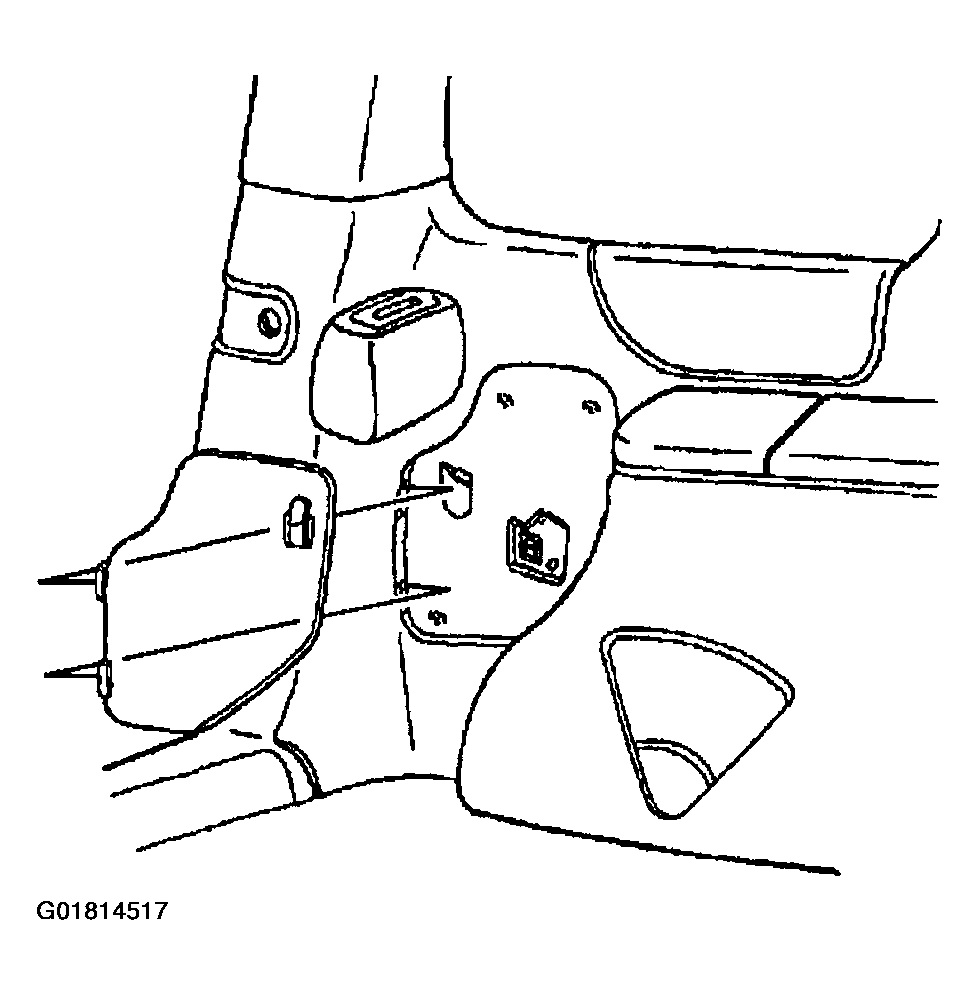

    Fig 1: Installing Screws & Assembly Panel Plate
    G01814517Courtesy of GENERAL MOTORS CORP.
