WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

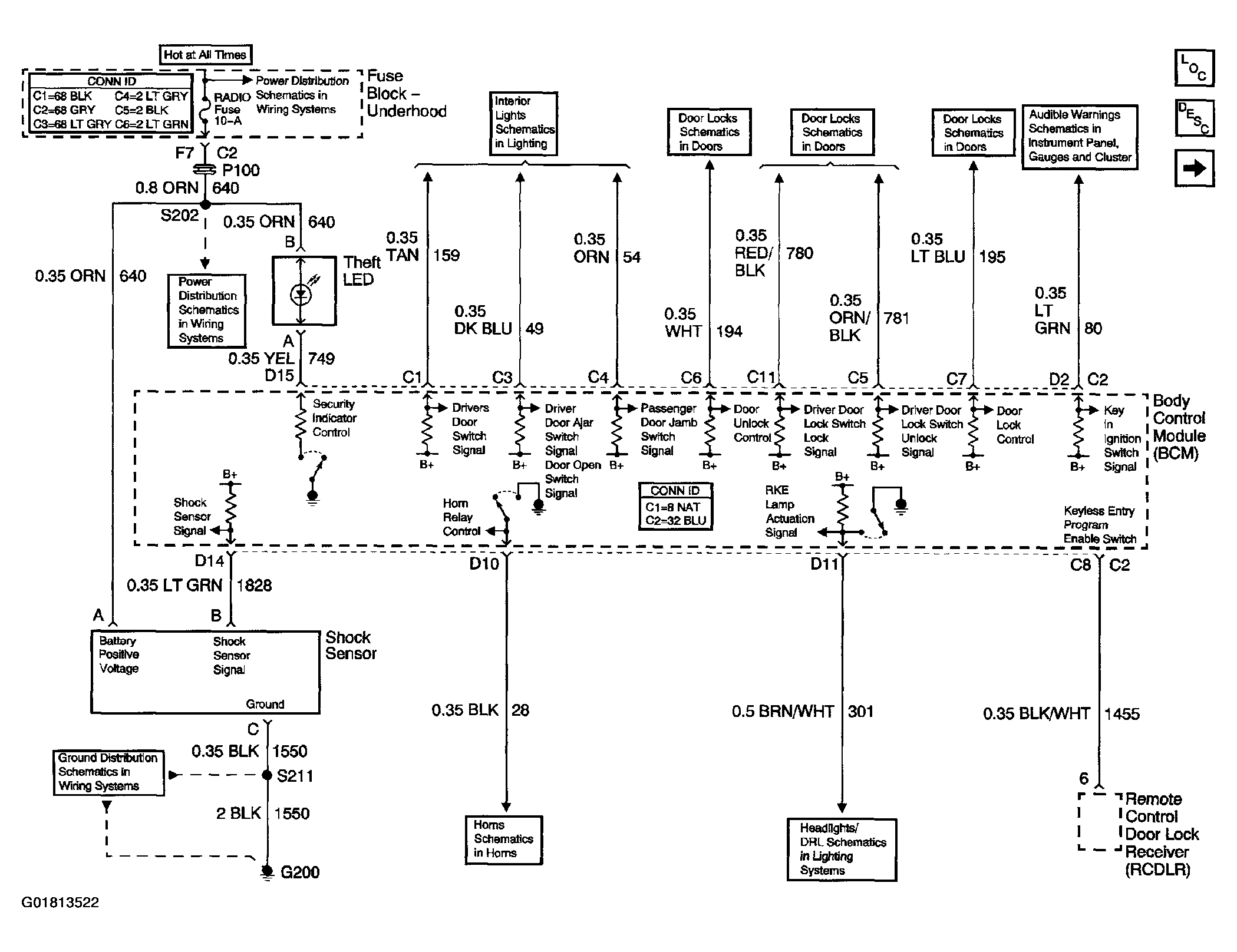

Fig 1: Theft Deterrent System Schematic (Body Control Module, Power And Ground)
Courtesy of GENERAL MOTORS CORP.

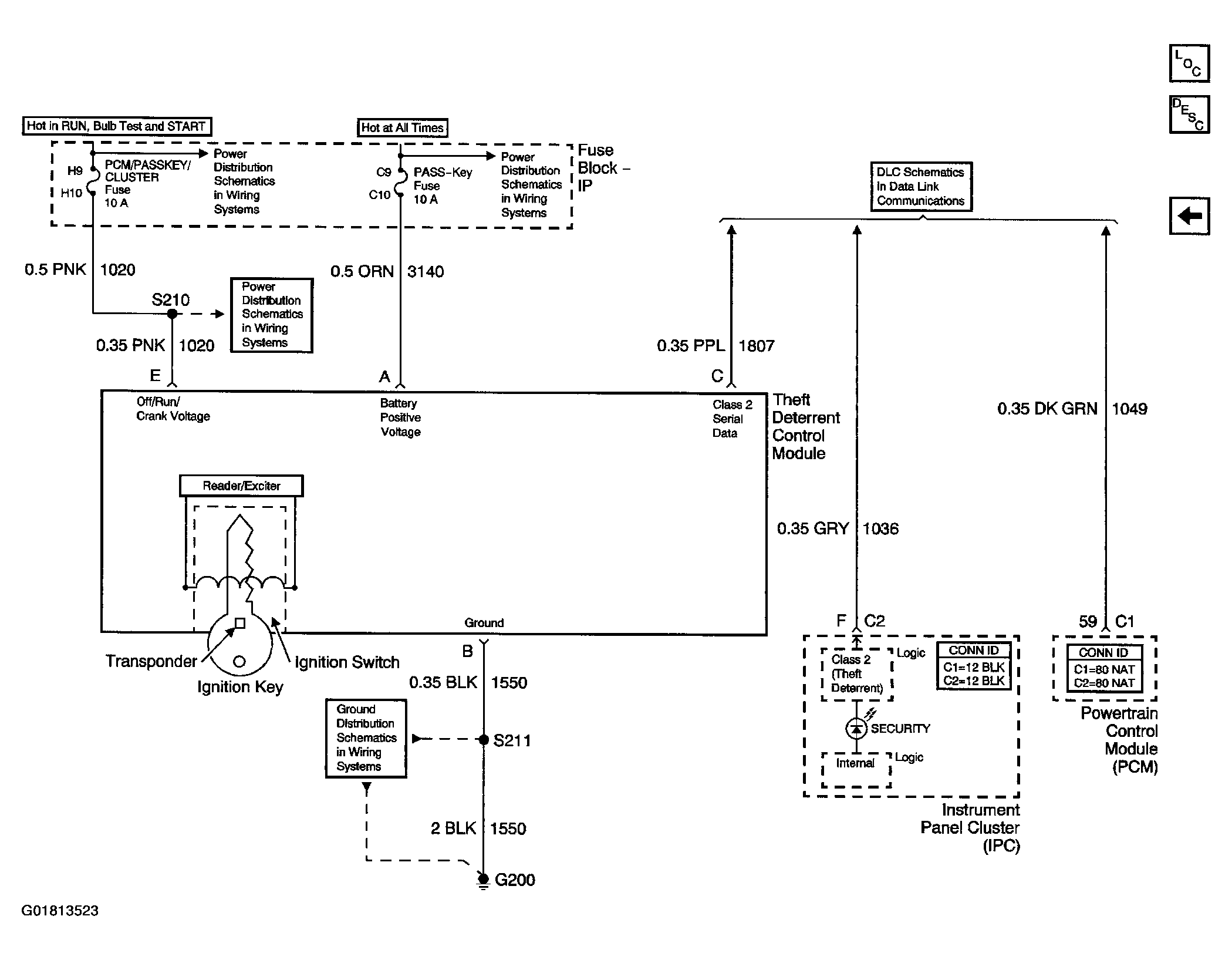

Fig 2: Theft Deterrent System Schematic (Pass Key lll Module)
