Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Remove the theft deterrent relay (1) from the relay block.

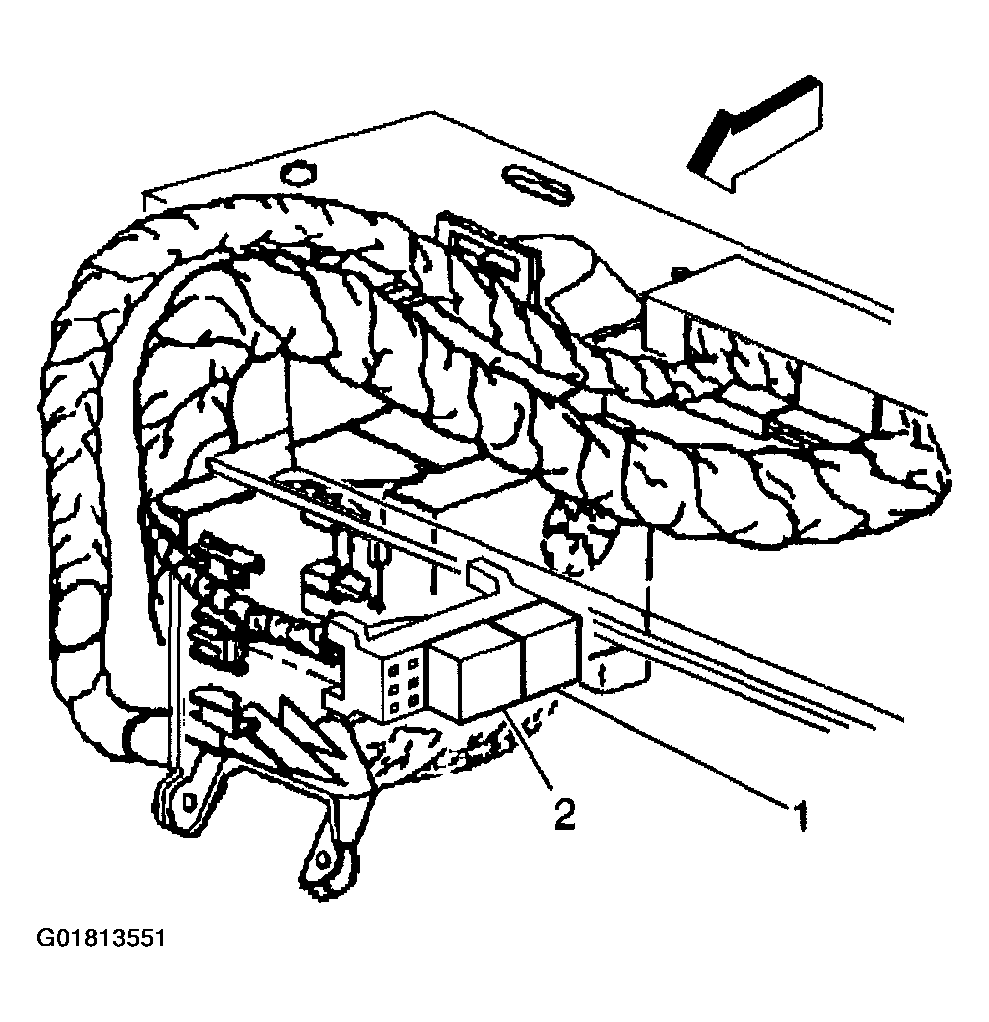

Fig 1: Removing Theft Deterrent Relay
G01813551Courtesy of GENERAL MOTORS CORP.
