Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the theft deterrent relay (1) to the relay block.
  2. Install the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

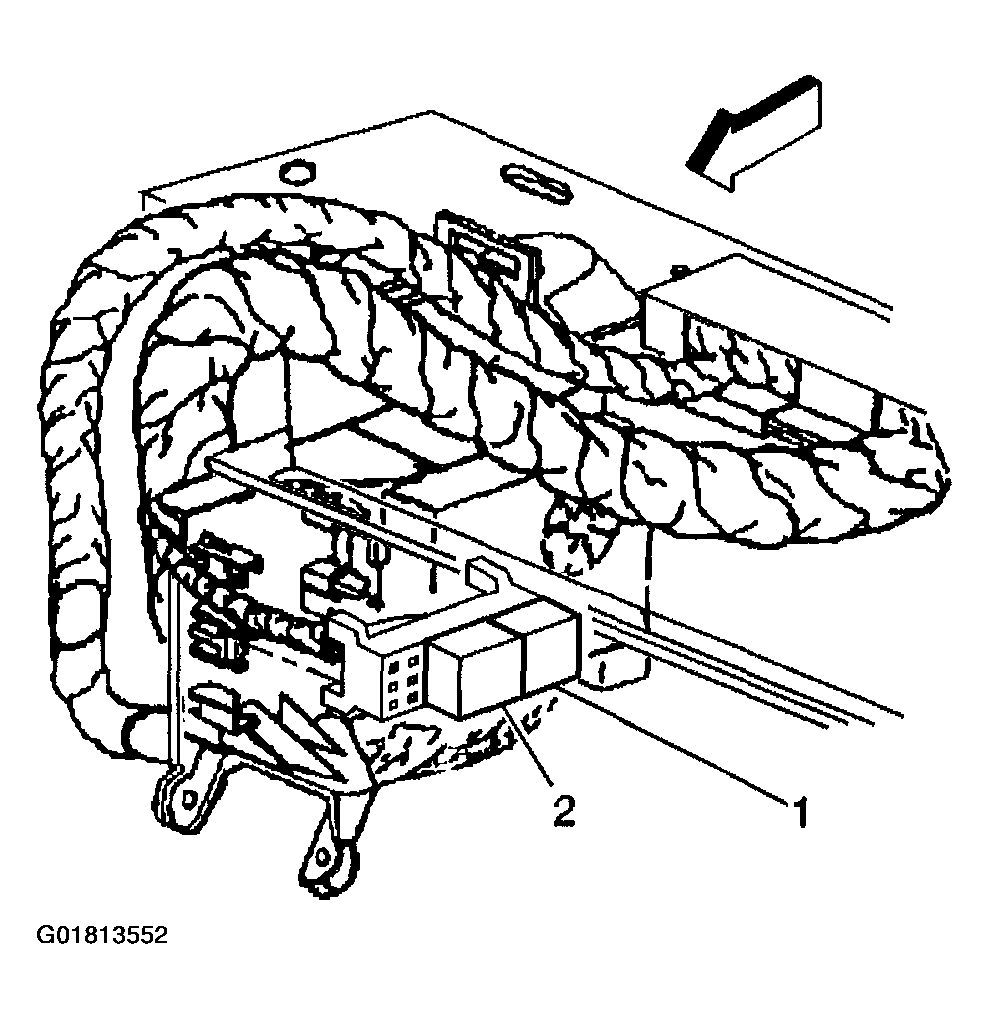

Fig 1: Installing Theft Deterrent Relay
G01813552Courtesy of GENERAL MOTORS CORP.
