Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Disconnect the shock sensor electrical connector.
  3. Remove the shock sensor from the instrument panel knee bolster bracket.

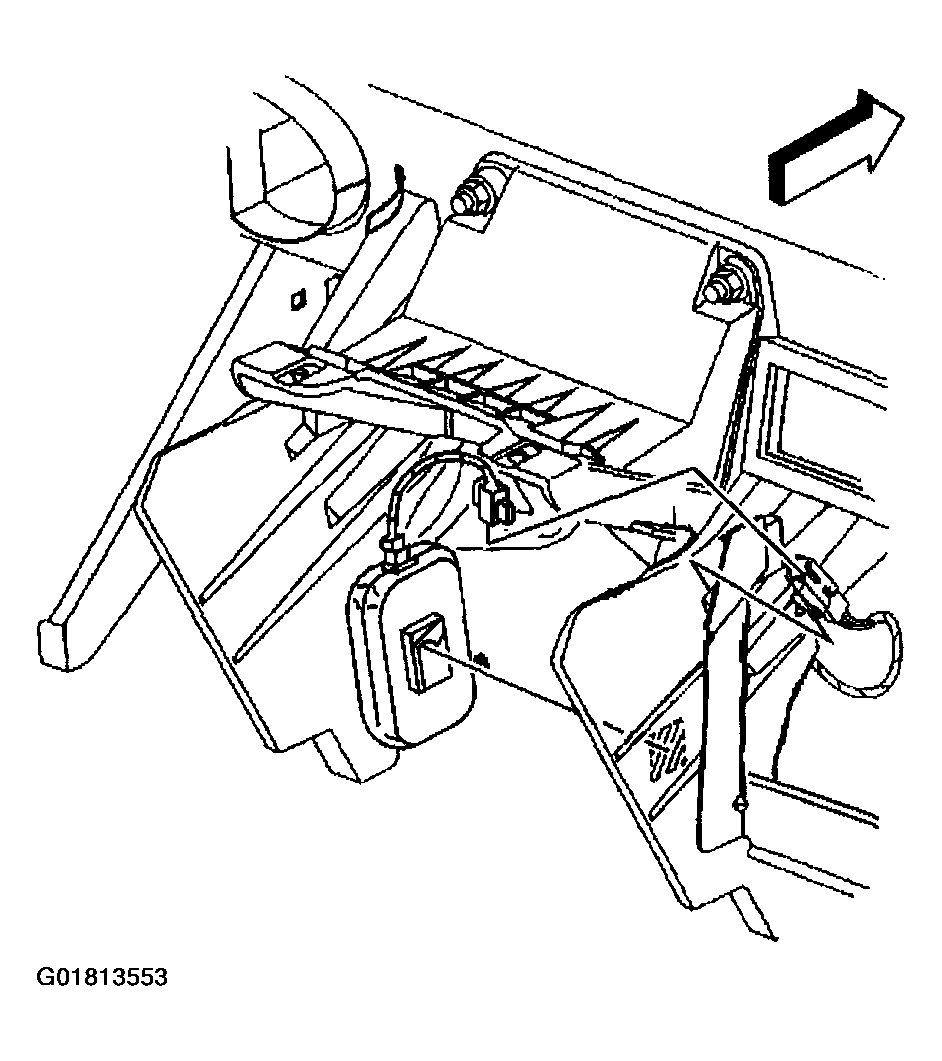

Fig 1: Removing Shock Sensor From Instrument Panel Knee Bolster Bracket
G01813553Courtesy of GENERAL MOTORS CORP.
