Symptom List

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

Panic Mode Inoperative on page 8-674
Keyless Entry System Inoperative on page 8-675
Power Sliding Door (PSD) Inoperative with Transmitter on page 8-678

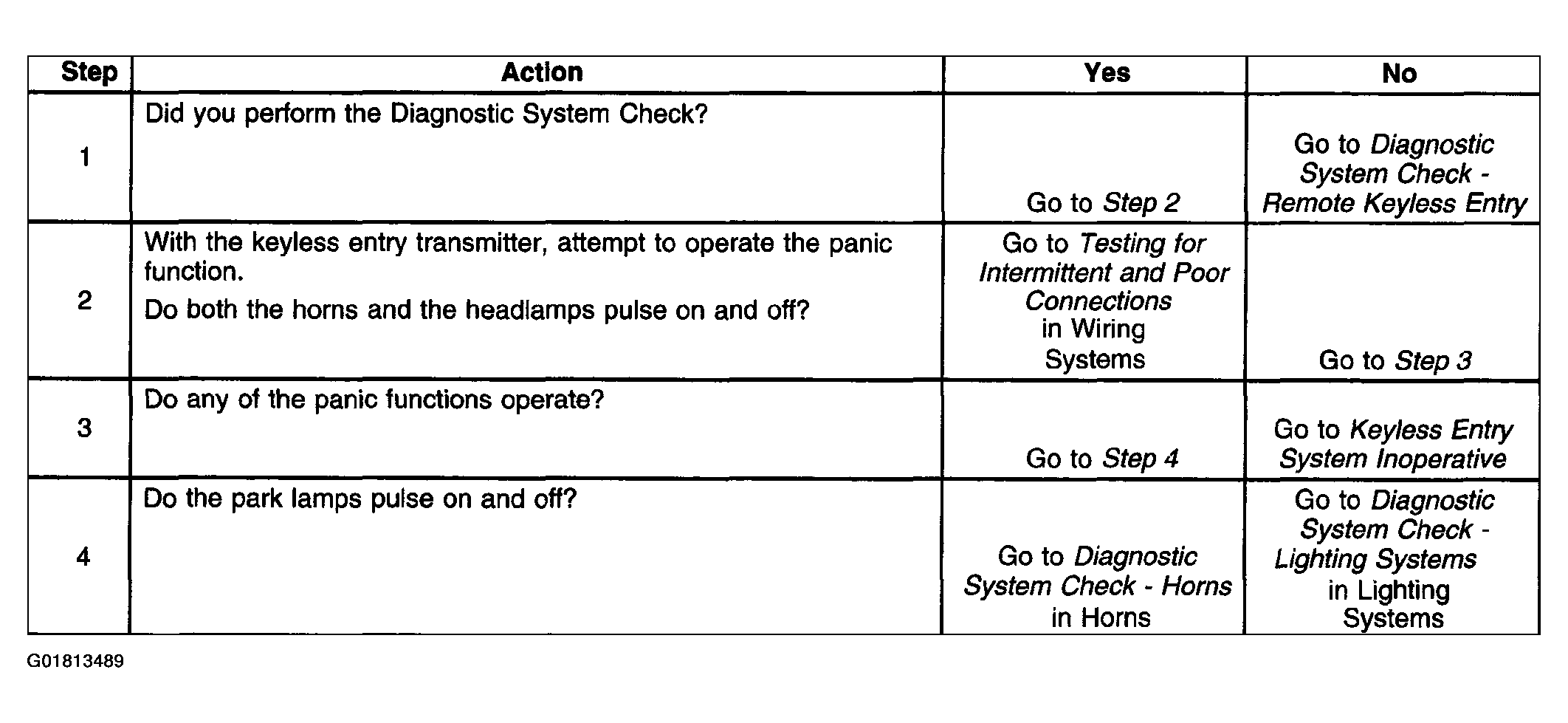

Fig 1: Panic Mode Inoperative
Courtesy of GENERAL MOTORS CORP.

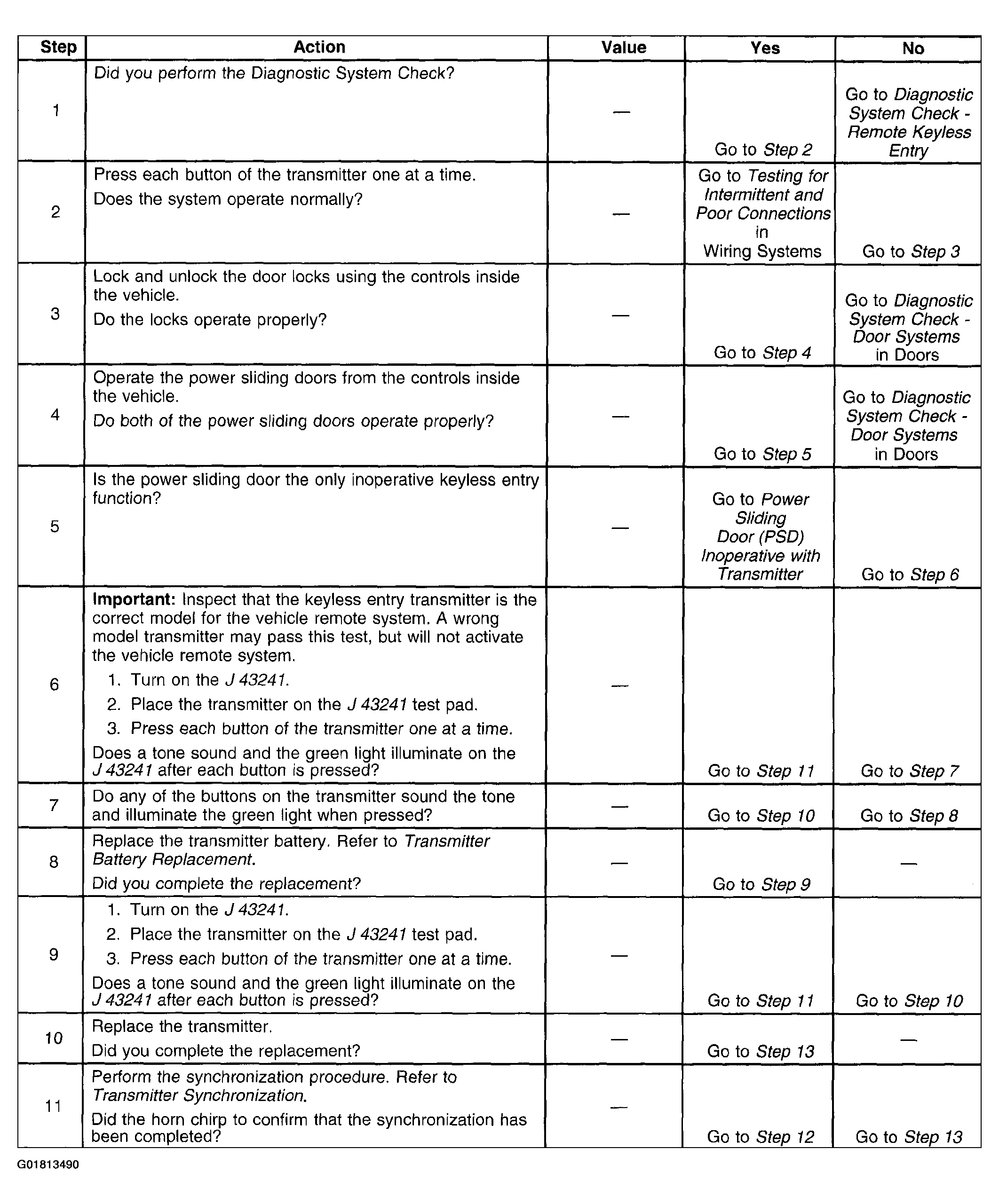

Fig 2: Keyless Entry System Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

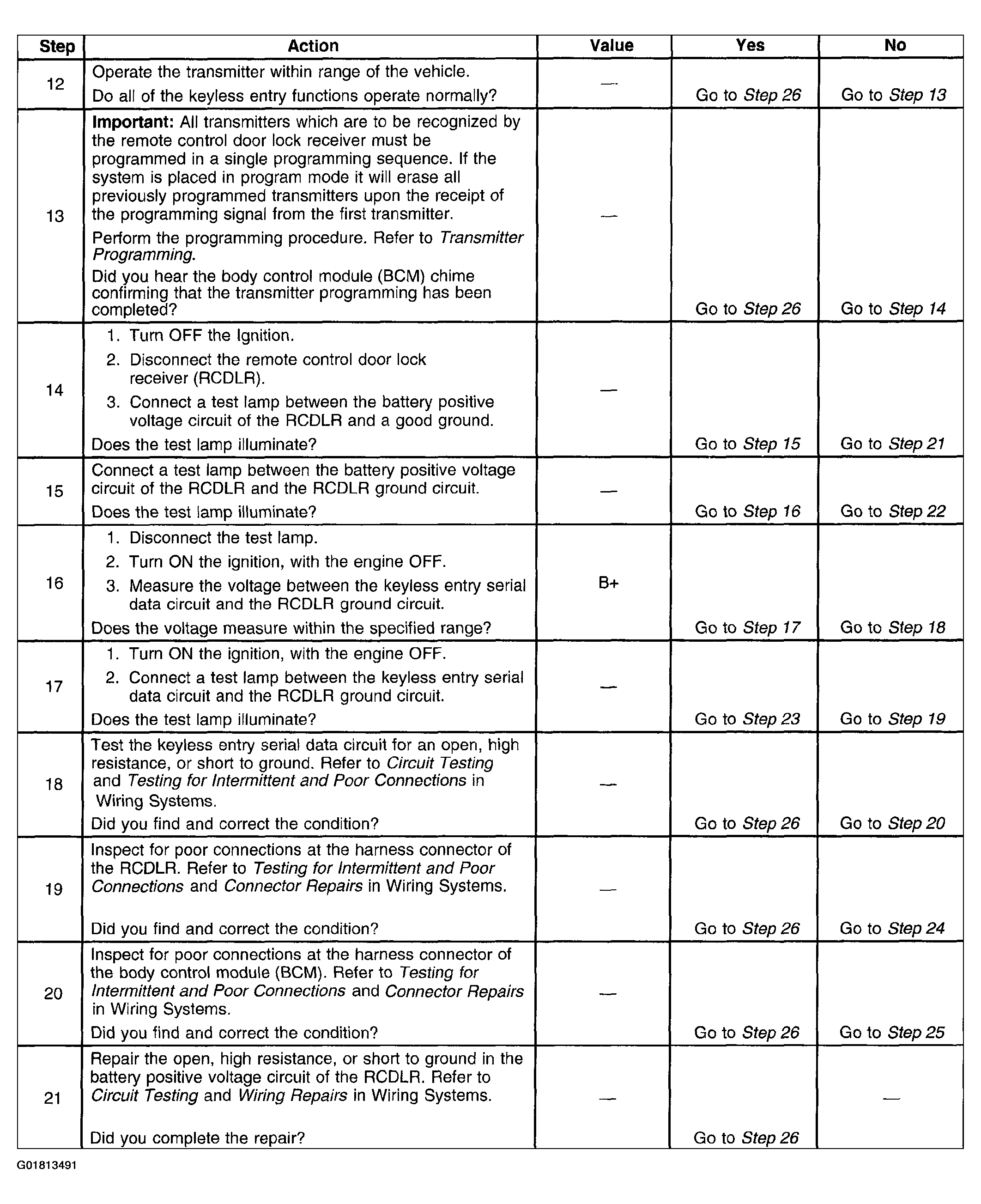

Fig 3: Keyless Entry System Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

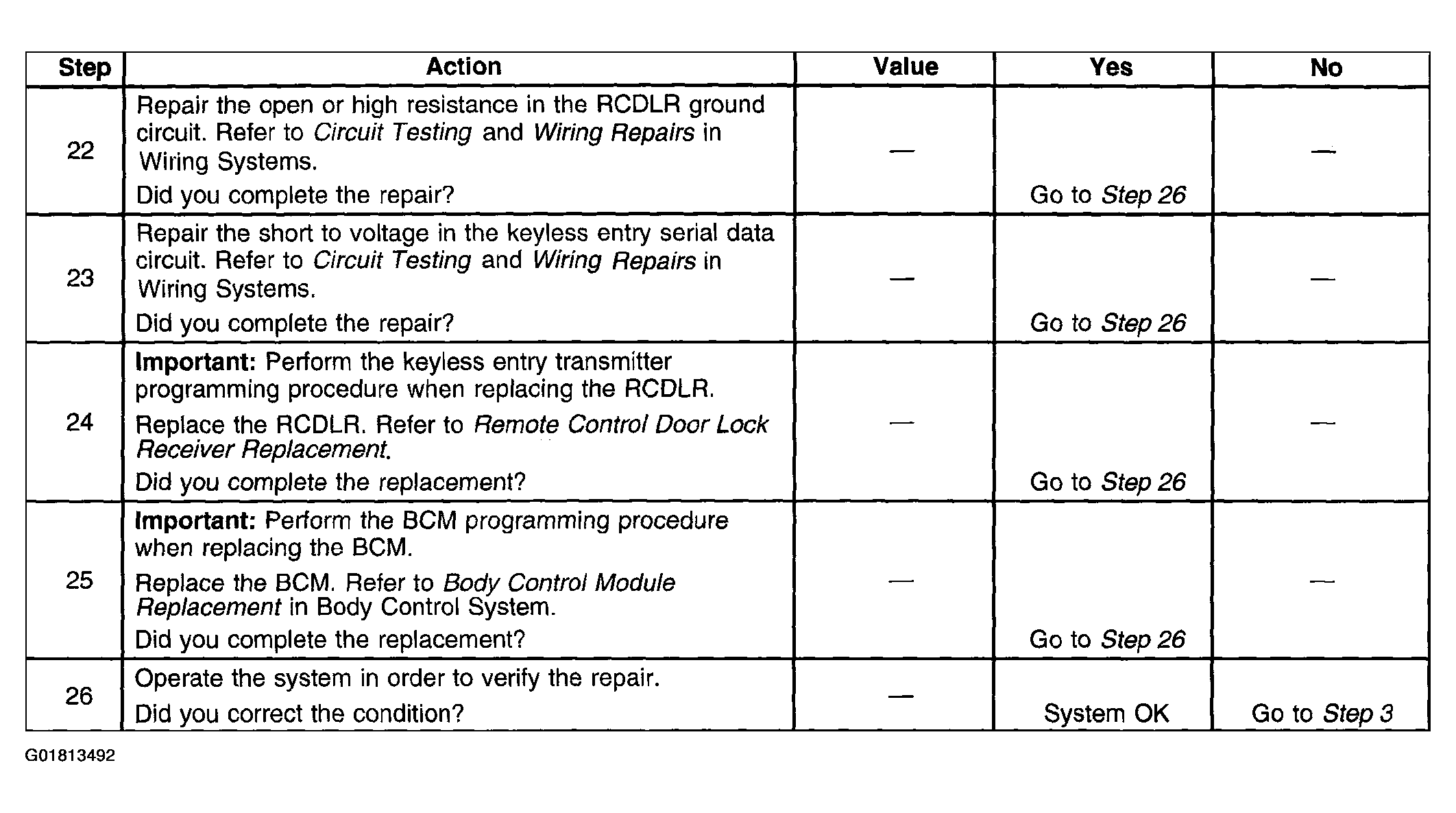

Fig 4: Keyless Entry System Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

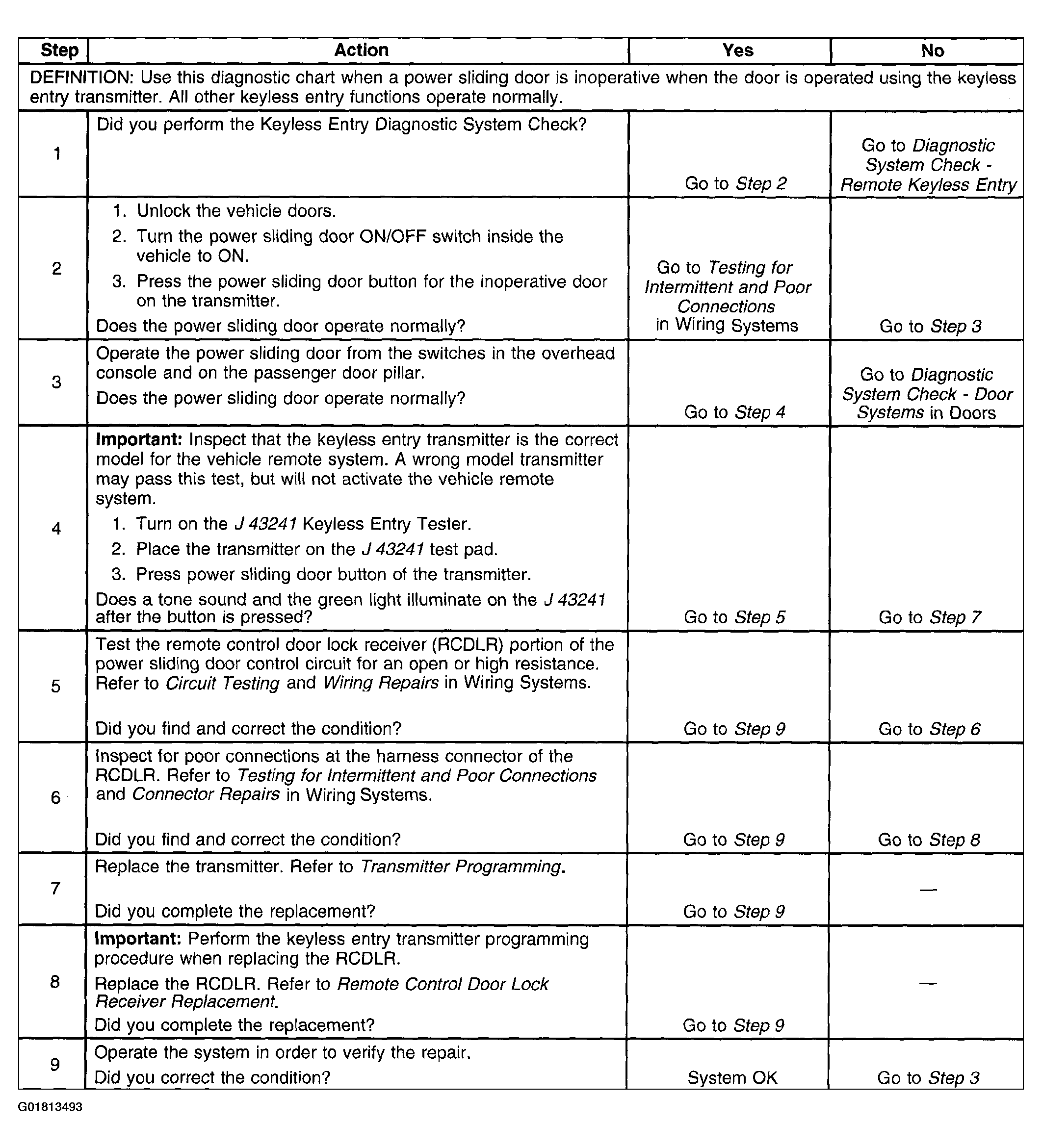

Fig 5: Power Sliding Door (PSD) Inoperative With Transmitter

Courtesy of GENERAL MOTORS CORP.
