Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Release the vent hose clamp (1) from the extension housing assembly.
  3. Disconnect the vent hose (2) from the retaining bracket on the transfer case assembly.
  4. Remove the vent hose from the extension housing assembly vent tube by carefully twisting the hose.

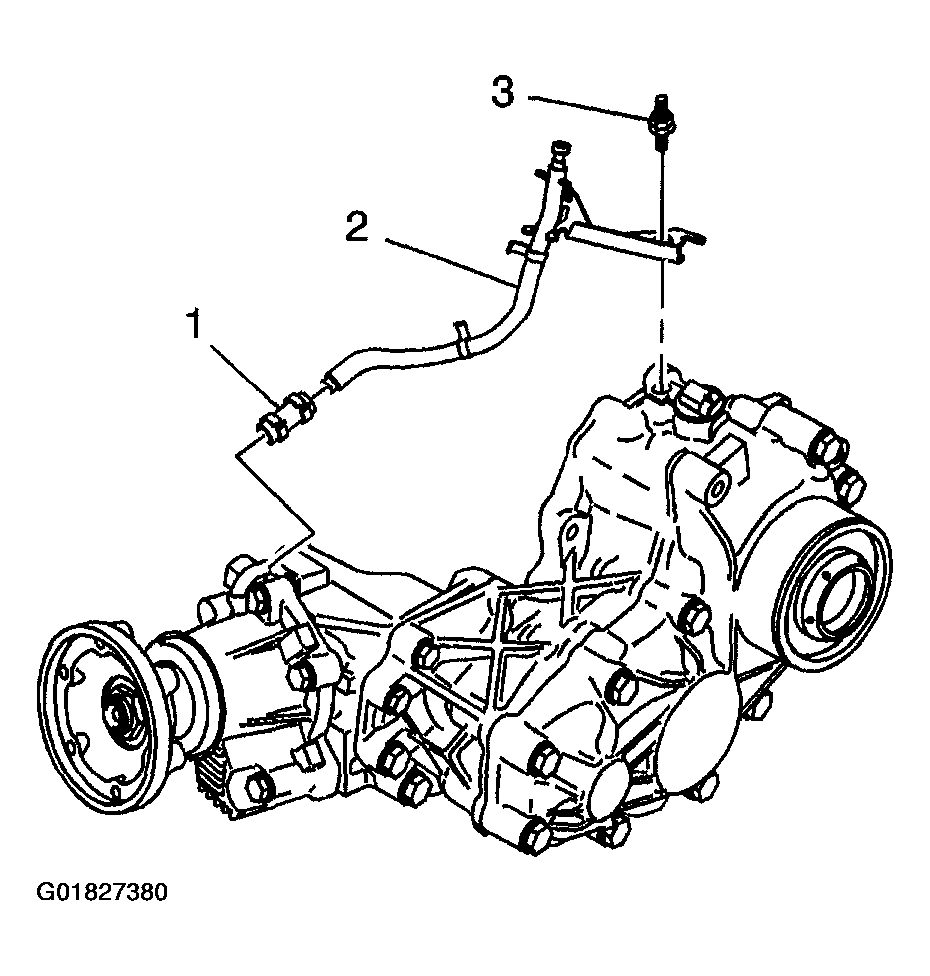

    Fig 1: Removing Vent Hose & Clamp
    G01827380Courtesy of GENERAL MOTORS CORP.
