Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose to the extension housing assembly vent tube.
  2. Connect the vent hose (2) to the retaining bracket on the transfer case assembly.
  3. Install the vent hose clamp (1) to the extension housing assembly.
  4. Lower the vehicle.

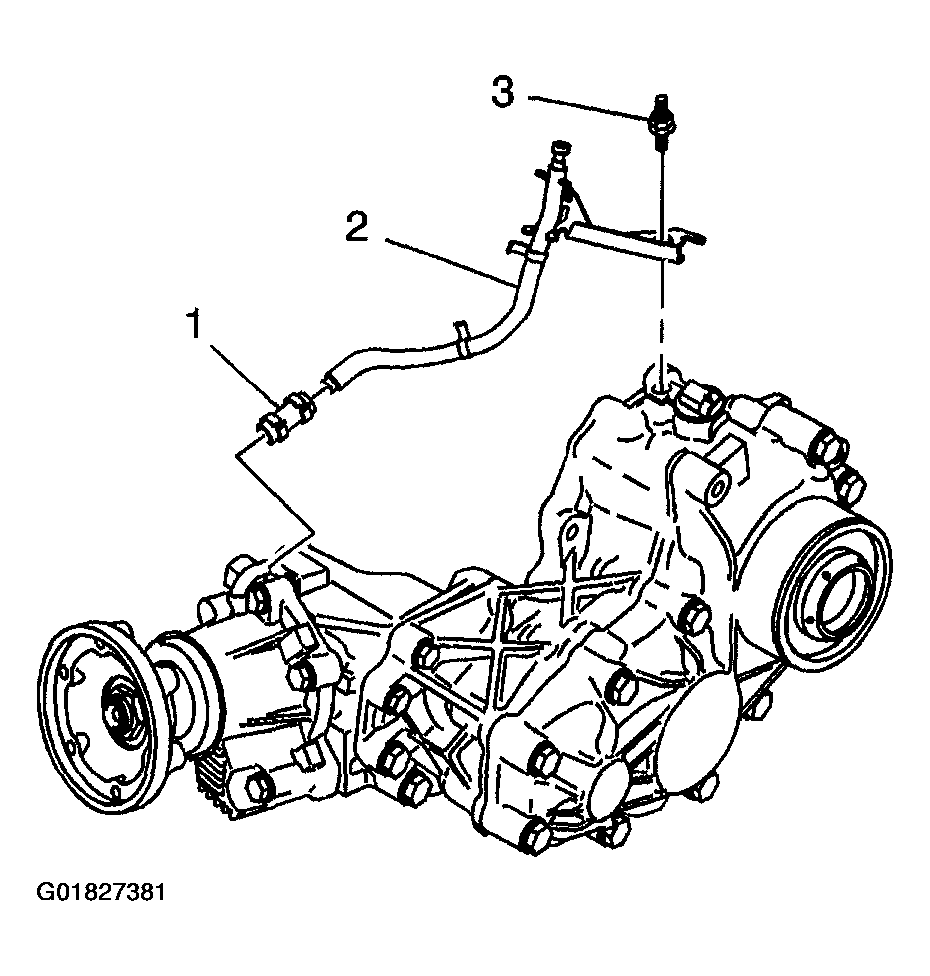

    Fig 1: Installing Vent Hose & Clamp
    G01827381Courtesy of GENERAL MOTORS CORP.
