Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the drain plug (1) and gasket.

    Tighten

    Tighten the drain plug to 32 N.m (24 lb ft).

  2. Fill the transfer case with synthetic gear oil GM P/N United States 12378514

    Canada P/N 88901045, or equivalent.

  3. Fill the transfer case to the bottom of the oil fill plug hole.
  4. Install the oil fill plug (2) and gasket.

    Tighten

    Tighten the oil fill plug to 32 N.m (24 lb ft).

  5. Lower the vehicle.

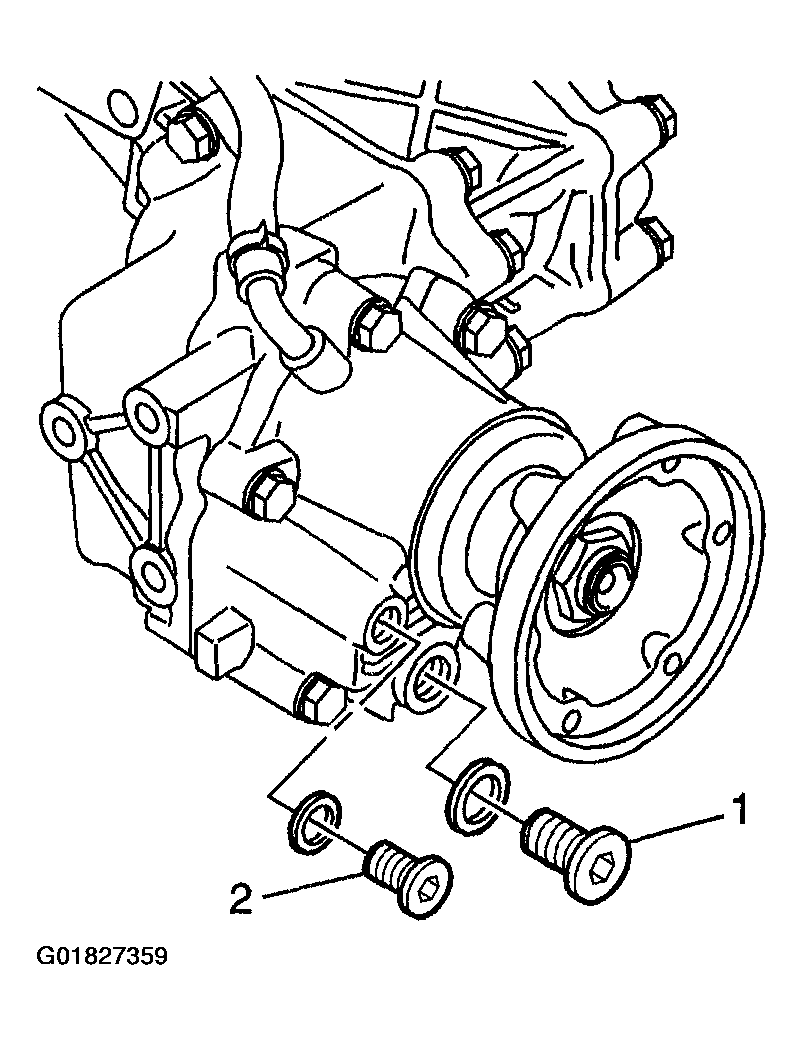

    Fig 1: Installing Fill Plug, Gasket & Drain Plug
    G01827359Courtesy of GENERAL MOTORS CORP.
