Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the transfer case brace bolts.
  3. Remove the transfer case brace.

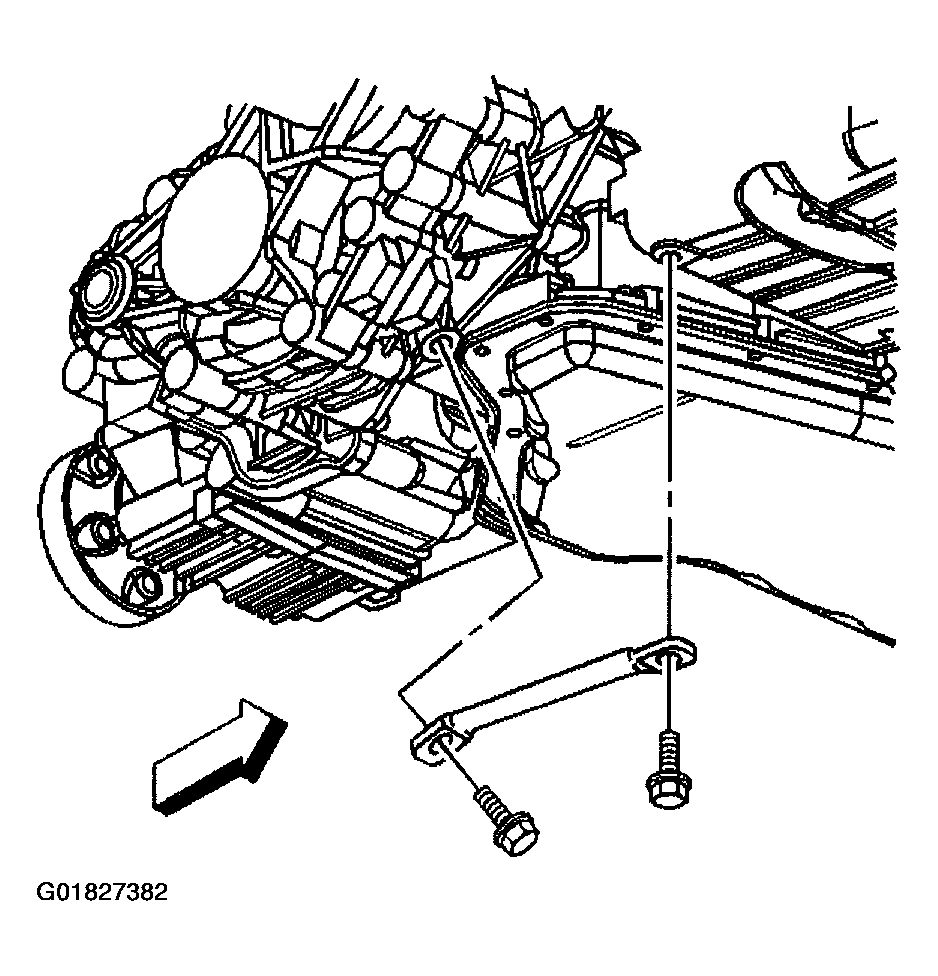

    Fig 1: Removing Transfer Case Brace & Bolts
    G01827382Courtesy of GENERAL MOTORS CORP.
