Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transfer case brace.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transfer case brace bolts.

    Tighten

    Tighten the bolts to 47 N.m 35 lb ft).

  3. Lower the vehicle.

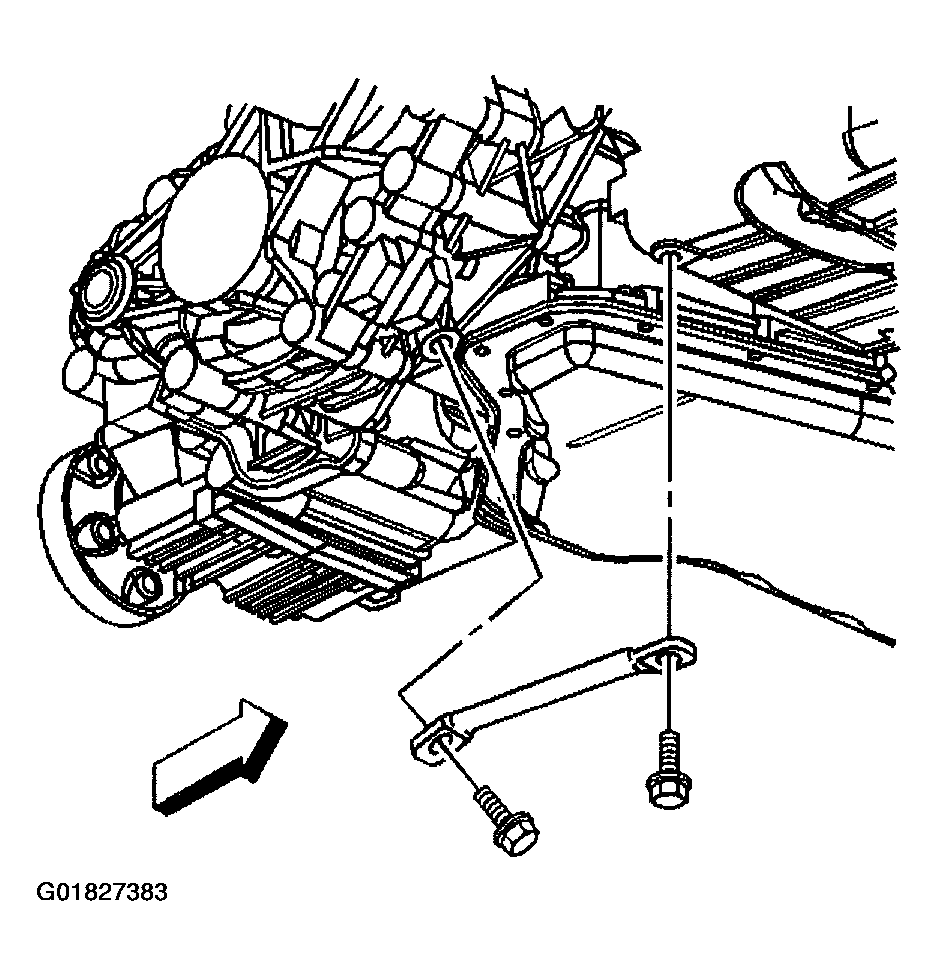

    Fig 1: Installing Transfer Case Brace & Bolts
    G01827383Courtesy of GENERAL MOTORS CORP.
