Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Disconnect the electrical connector from the speed sensor.
  3. Remove the speed sensor bolt (3) from the transfer case.
  4. Reposition the pinion housing vent hose (2) and mounting bracket away from the speed sensor bolt boss.

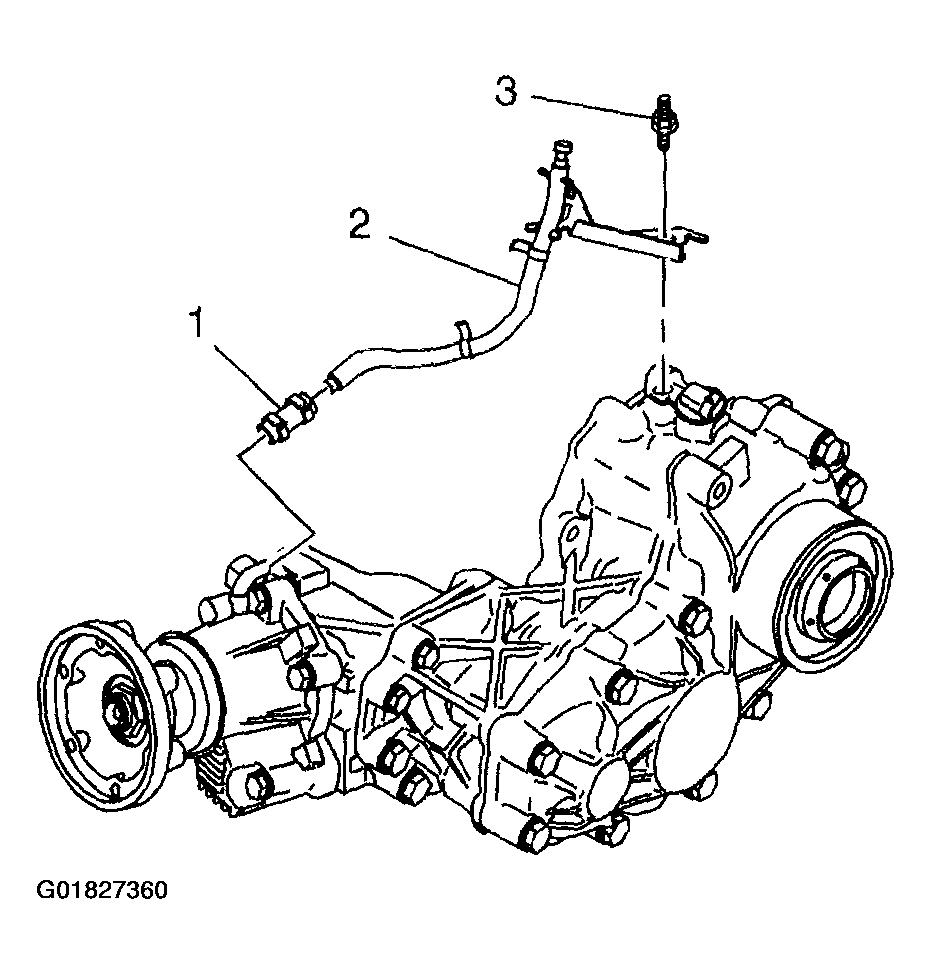

    Fig 1: Removing Speed Sensor, Pinion Housing Vent Hose & Bolt
    G01827360Courtesy of GENERAL MOTORS CORP.
  5. Remove the speed sensor (1).
  6. Remove O-ring from the speed sensor, if necessary. The O-ring may be reused if it is not cut or damaged.

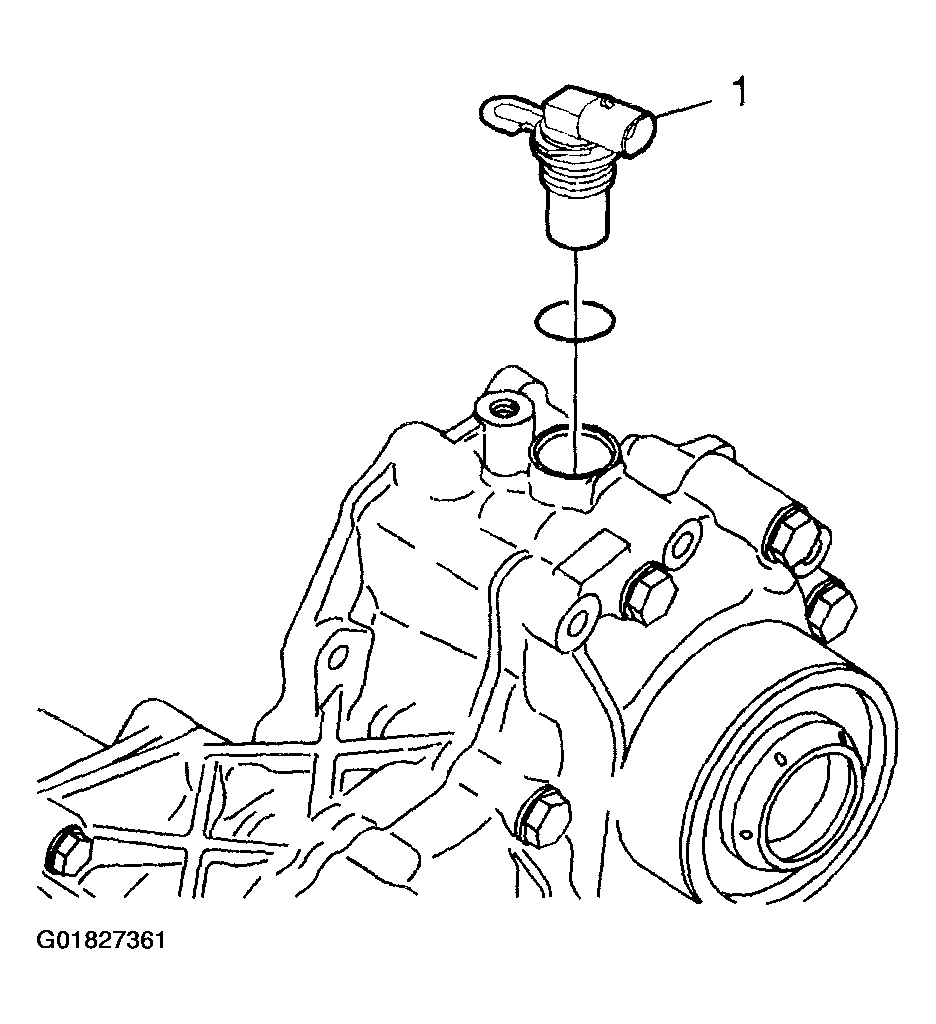

    Fig 2: Removing Speed Sensor & O-Ring
    G01827361Courtesy of GENERAL MOTORS CORP.
