Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the O-ring to the speed sensor, if removed.
  2. Install the speed sensor (1) to the transfer case.

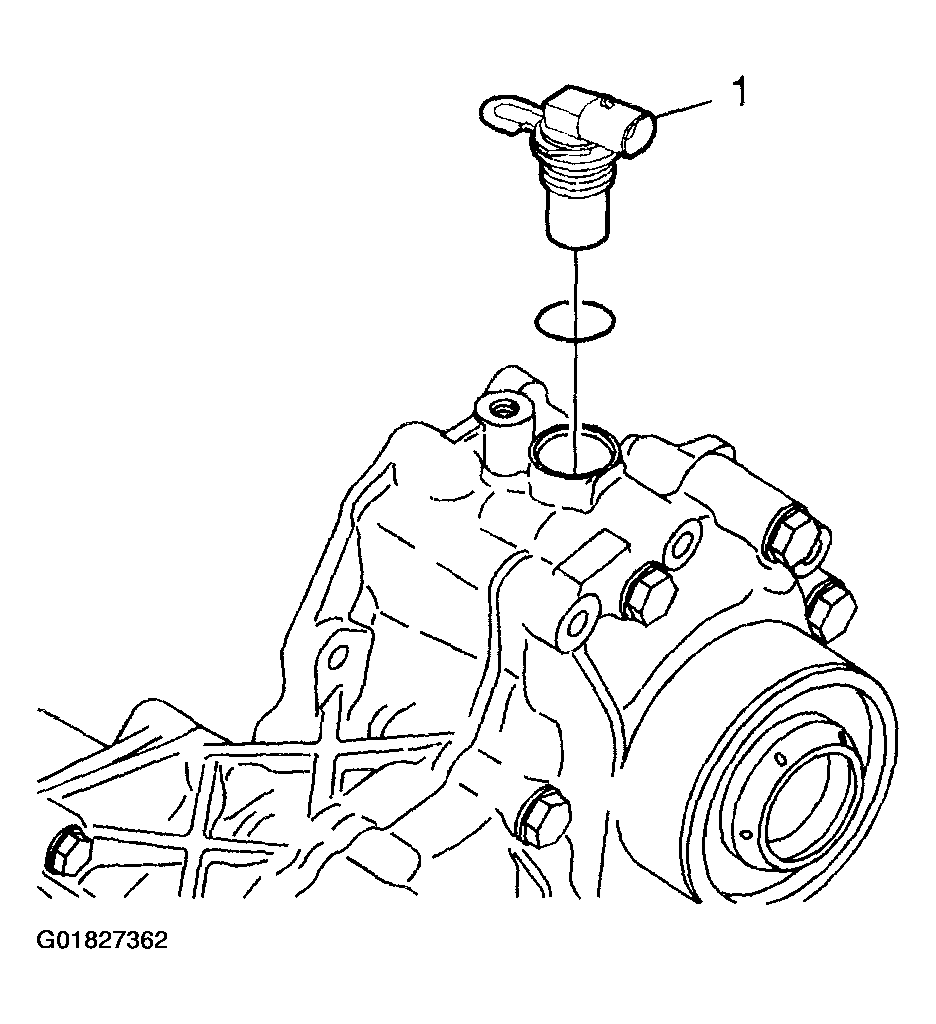

    Fig 1: Installing Speed Sensor & O-Ring
    G01827362Courtesy of GENERAL MOTORS CORP.
  3. Position the pinion housing vent hose (2) and mounting bracket to the speed sensor bolt boss.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the speed sensor bolt (3) to the transfer case.

    Tighten

    Tighten the bolt to 10 N.m (106 lb in).

  5. Connect the electrical connector to the speed sensor.
  6. Lower the vehicle.

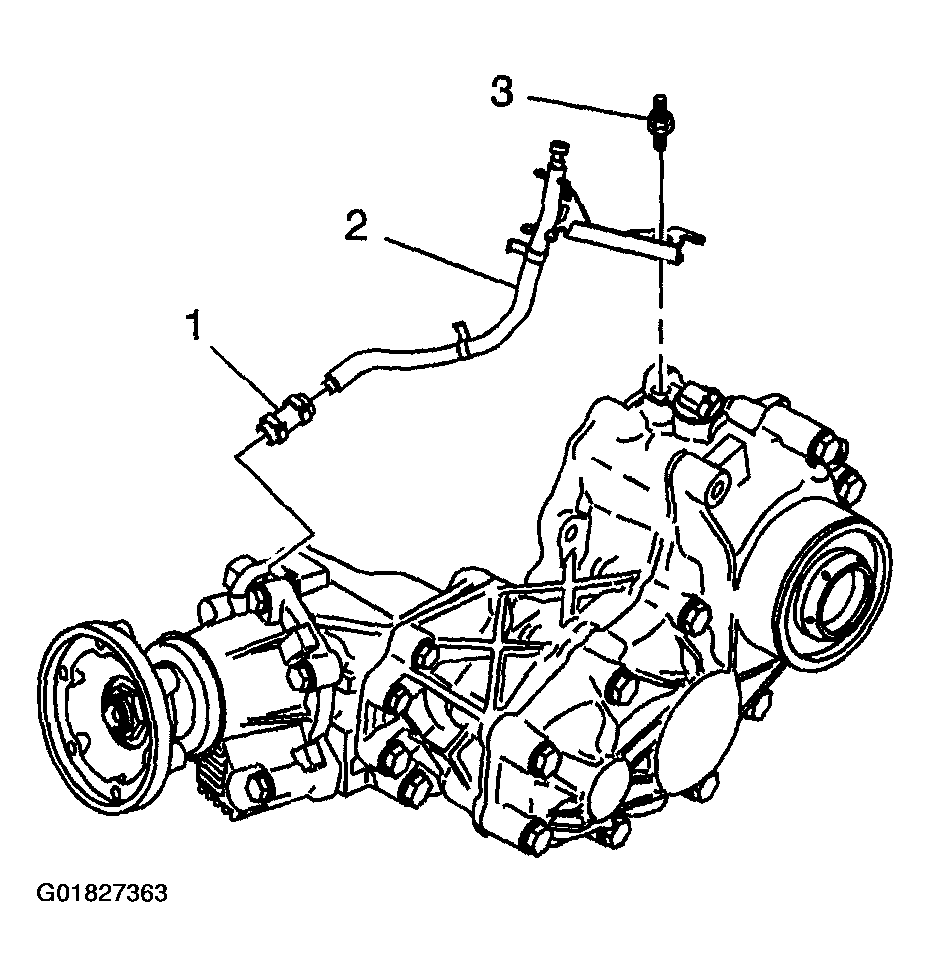

    Fig 2: Installing Speed Sensor, Pinion Housing Vent Hose & Bolt
    G01827363Courtesy of GENERAL MOTORS CORP.
