Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 36797  in order to install a new oil seal (2) into the extension housing.
    Fig 1: Installing Oil Seal Into Extension Housing
    G01827372Courtesy of GENERAL MOTORS CORP.
  2. Position the flange and the extension housing assembly into a press.
  3. Lightly lubricate the splines on the driven shaft.
  4. Press the flange (1) onto the driven shaft.

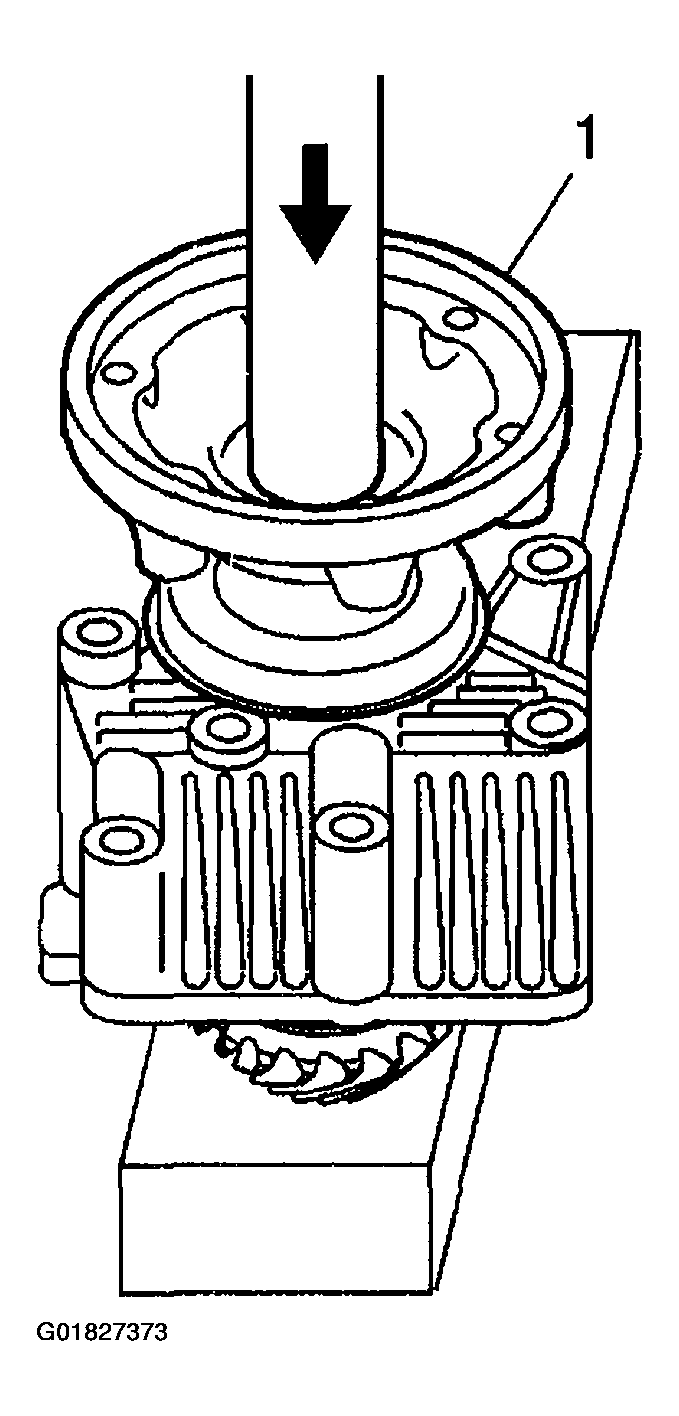

    Fig 2: Installing Extension Housing Seal
    G01827373Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the extension housing assembly to the J 44755  (2) using M8 x 1.25 bolts (1).

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

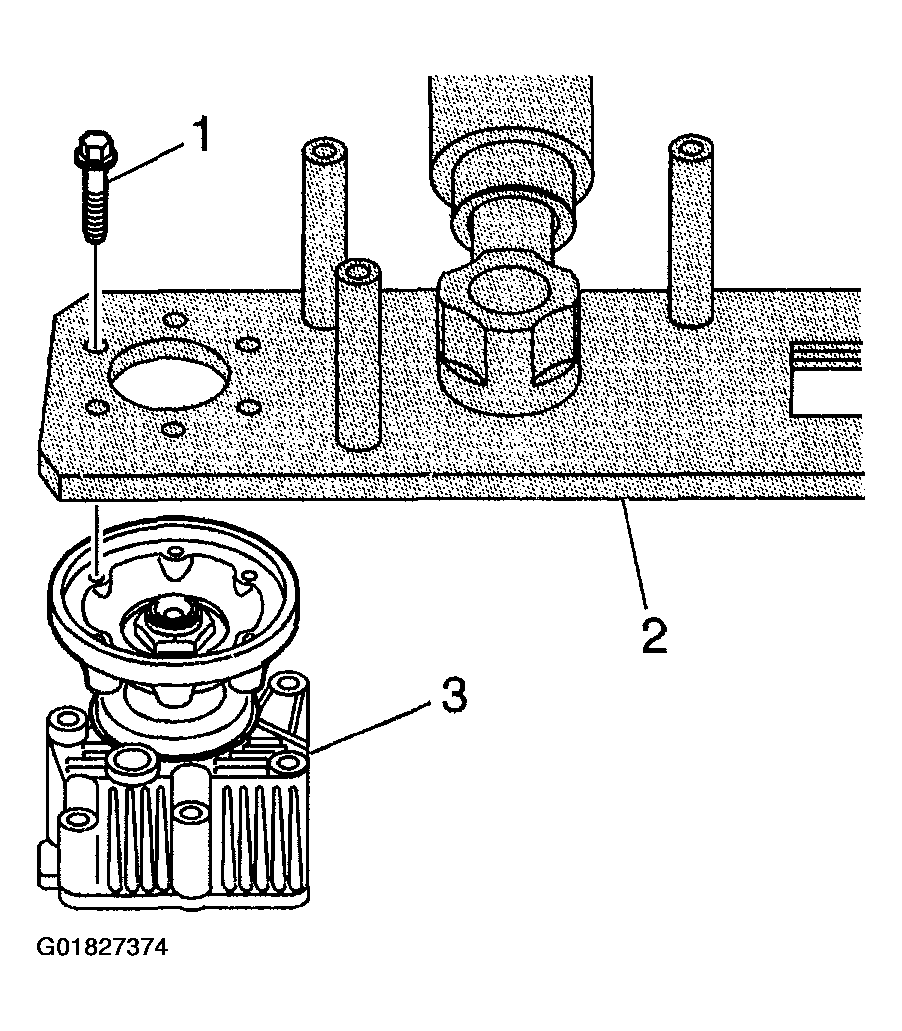

    Fig 3: Installing Flange Nut, Extension Housing Assembly & J 44755
    G01827374Courtesy of GENERAL MOTORS CORP.
  6. Install the flange nut (1) onto the driven shaft.

    Tighten

    Tighten the flange nut to 250 N.m (185 lb ft).

  7. Remove the extension housing assembly from the J 44755  .

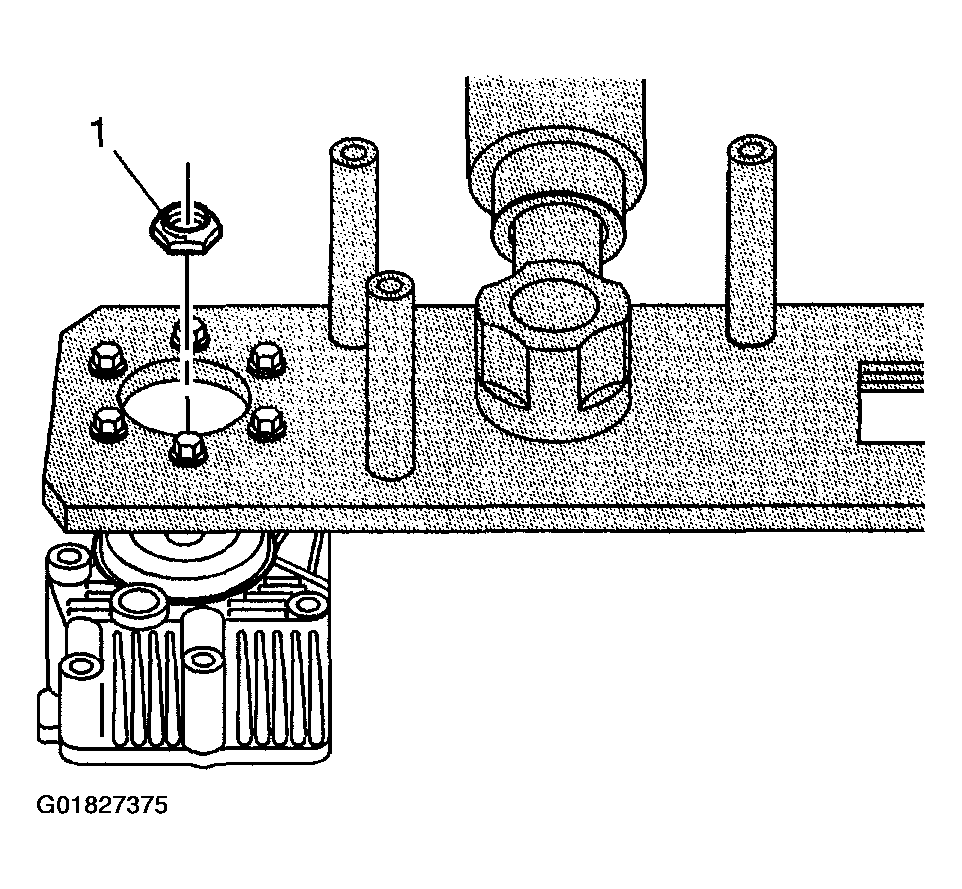

    Fig 4: Installing flange nut
    G01827375Courtesy of GENERAL MOTORS CORP.
  8. Measure the rotating torque of the driven shaft in both directions.

    Specification

    The driven shaft and bearings should have a rotating torque of 1.5 N.m (13 lb in).

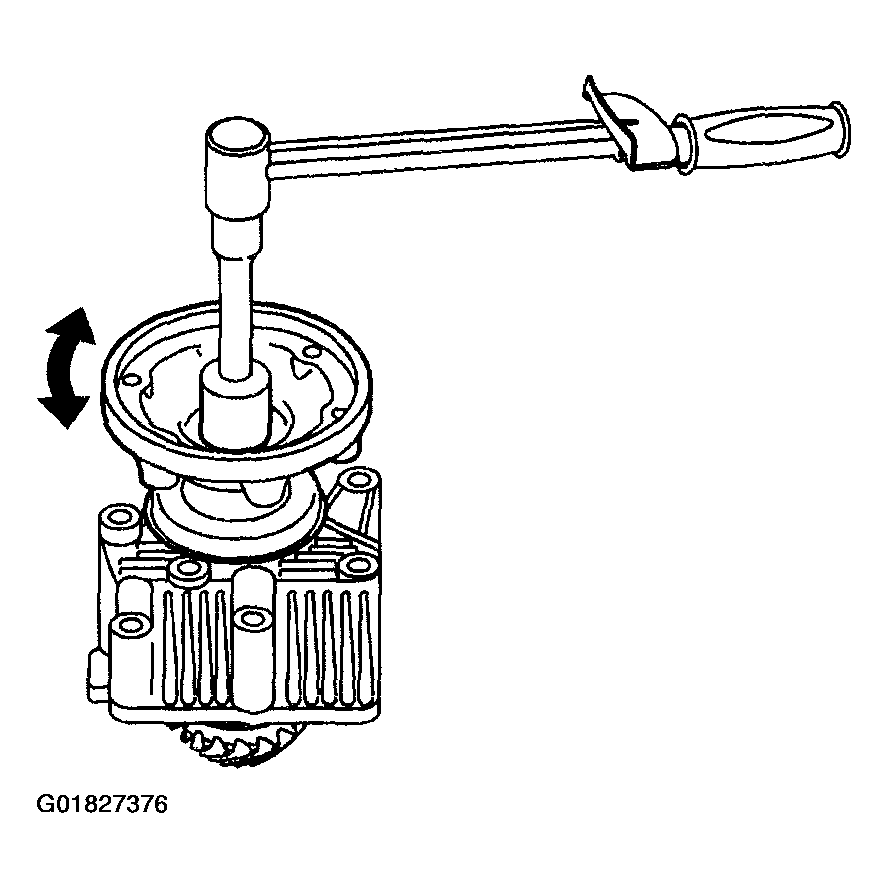

    Fig 5: Rotating Torque Of Driven Shaft
    G01827376Courtesy of GENERAL MOTORS CORP.
  9. Apply sealant GM P/N United States 12346004 GM P/N Canada 10953480, or equivalent to both sides of the shim.
  10. Align the reference marks and install the shim (2) to the transfer case.
  11. Install the extension housing (1) and bolts (3) to the shim and transfer case.

    Tighten

    Tighten the extension housing bolts to 28 N.m (21 lb ft).

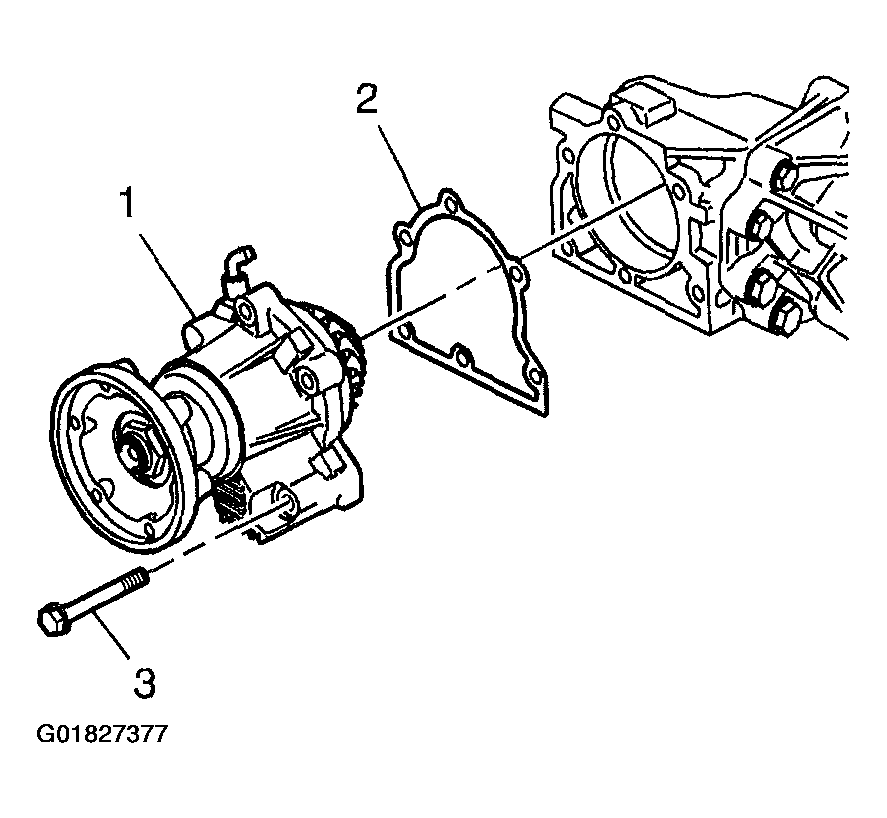

    Fig 6: Installing Bolts, Extension Housing Assembly & Shim
    G01827377Courtesy of GENERAL MOTORS CORP.
  12. Install the extension housing drain plug (1) and gasket to the extension housing.

    Tighten

    Tighten the plug to 32 N.m (24 lb in).

  13. Remove the extension housing fill plug (2) and gasket.
  14. Fill the extension housing with gear oil. Refer to Transfer Case Fluid Replacement .
  15. Install the extension housing fill plug and gasket.

    Tighten

    Tighten the plug to 32 N.m (24 lb in).

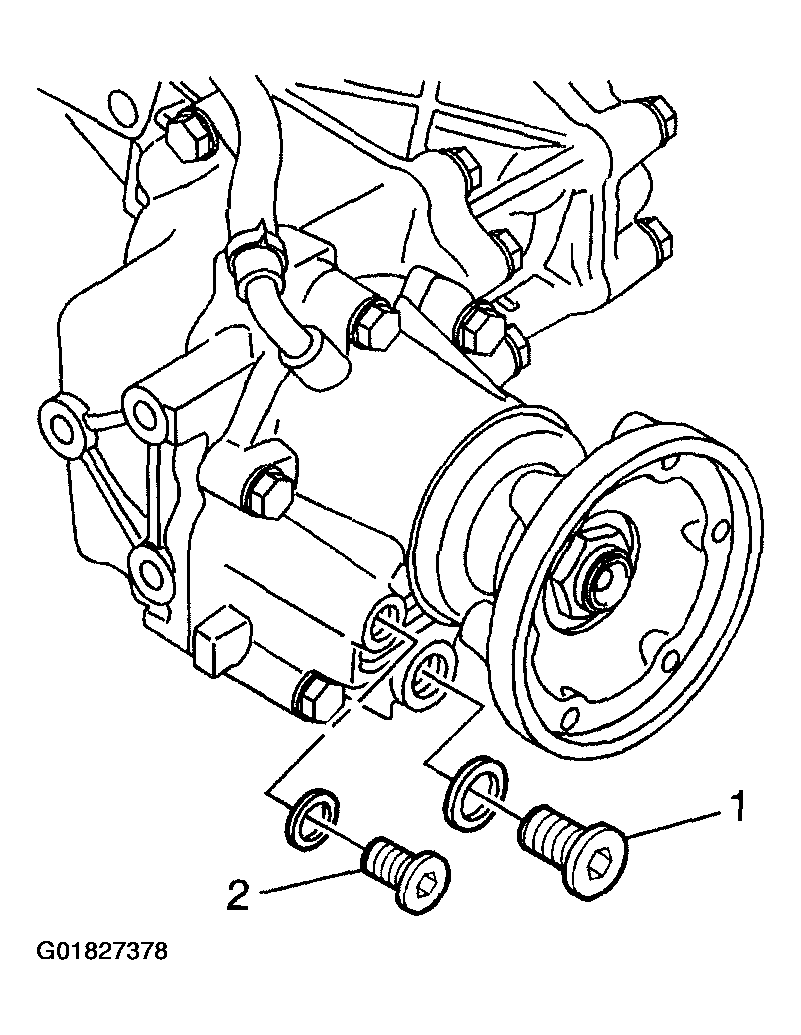

    Fig 7: Installing Lubricant Drain Plug & Gasket
    G01827378Courtesy of GENERAL MOTORS CORP.
  16. Install the extension housing vent hose (2) and clamp (1). Refer to Vent Hose Assembly Replacement .
  17. Install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
  18. Lower the vehicle.

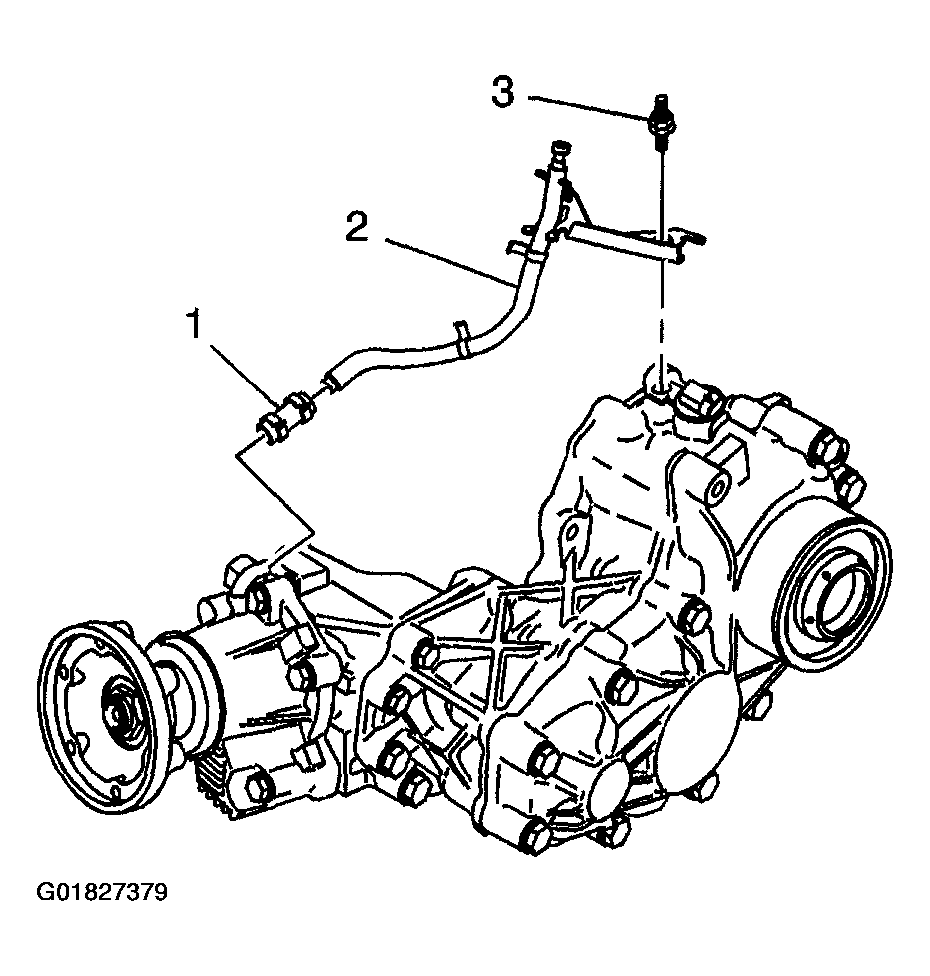

    Fig 8: Installing Extension Housing Vent Hose & Clamp
    G01827379Courtesy of GENERAL MOTORS CORP.
