Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the muffler and exhaust pipes over the rear axle and towards the rear of the vehicle.
  2. Install the exhaust hanger insulators to the exhaust pipes.
  3. Install rear crossover. AWD models refer to CROSSMEMBER REPLACEMENT .

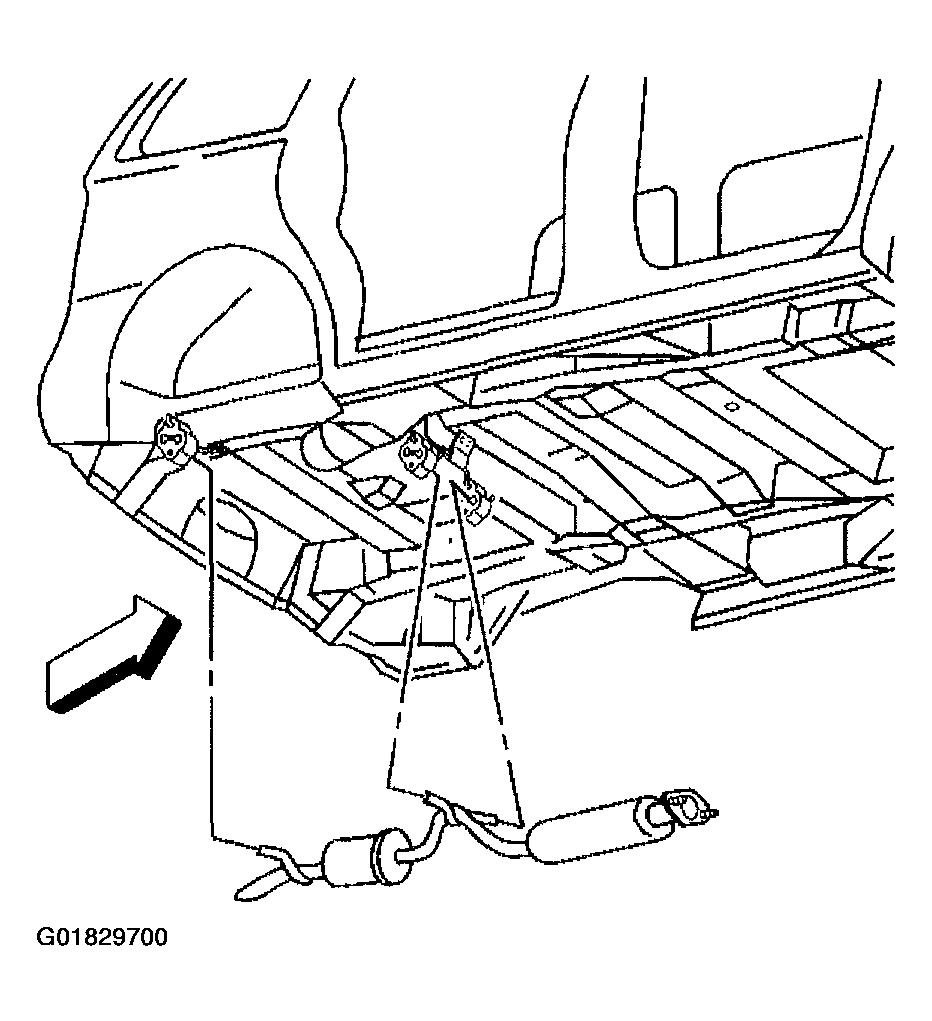

    Fig 1: Installing Exhaust Hanger Insulators
    G01829700Courtesy of GENERAL MOTORS CORP.
  4. Install a new catalytic converter gasket.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the catalytic converter bolts.

    Tighten

    Tighten the catalytic converter bolts to 34 N.m (25 lb ft).

  6. Lower the vehicle.
    Fig 2: Installing Catalytic Converter, Gasket & Bolts
    G01829701Courtesy of GENERAL MOTORS CORP.
