Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust manifold pipe gasket.

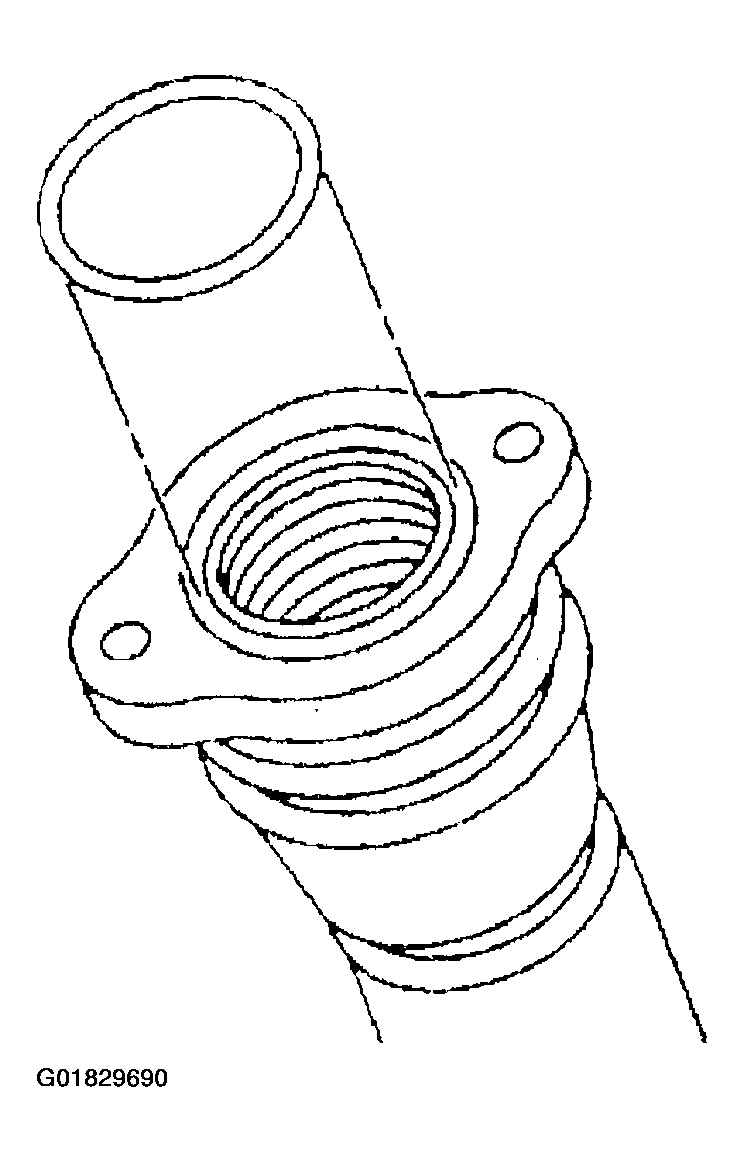

    Fig 1: Installing Exhaust Manifold Pipe Gasket
    G01829690Courtesy of GENERAL MOTORS CORP.
  2. Return the exhaust system to the proper position.
  3. Connect any hangers.
  4. Remove the exhaust system support.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the right exhaust manifold pipe stud nuts to the exhaust manifold pipe studs.

    Tighten

    Tighten the right exhaust manifold pipe stud nuts to 35 N.m (26 lb ft).

  6. Inspect the exhaust system for leaks and underbody contact.
  7. Lower the vehicle.

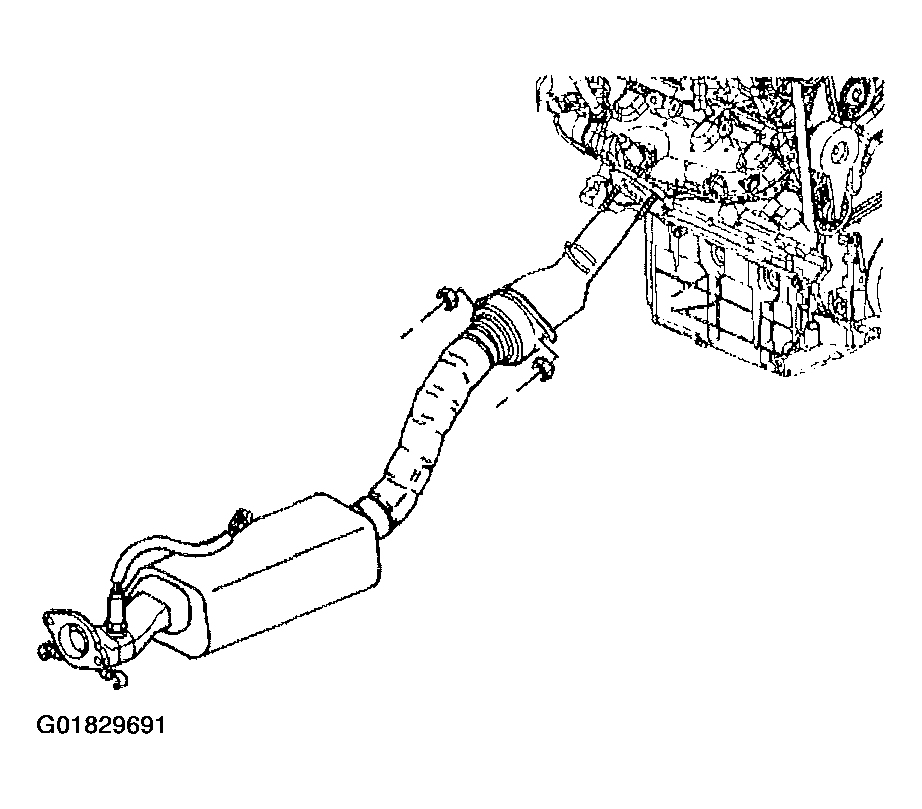

    Fig 2: Installing Right Exhaust Manifold Pipe, Stud & Nuts
    G01829691Courtesy of GENERAL MOTORS CORP.
