Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust muffler heat shield to the vehicle with new rivets.
  2. Install the exhaust system muffler. Refer to Muffler Replacement .
  3. Lower the vehicle.

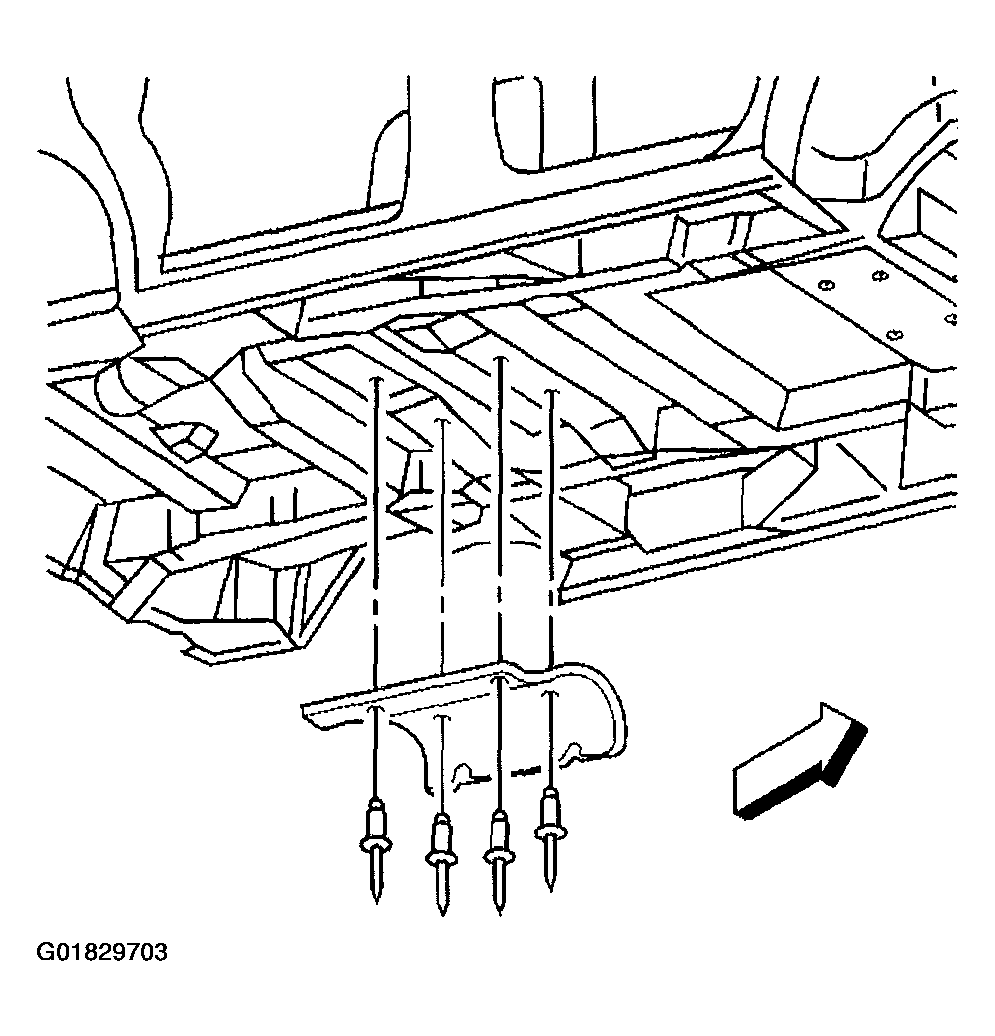

    Fig 1: Installing Catalytic Converter Heat Shield & Rivets
    G01829703Courtesy of GENERAL MOTORS CORP.
