Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle body air inlet duct.
  2. Drain the engine coolant from the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  3. Remove the inlet radiator hose from the engine. Refer to RADIATOR HOSE REPLACEMENT -- INLET .
  4. Remove the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT .
  5. Remove the exhaust crossover pipe heat shield bolts.
  6. Remove the exhaust crossover pipe heat shield.

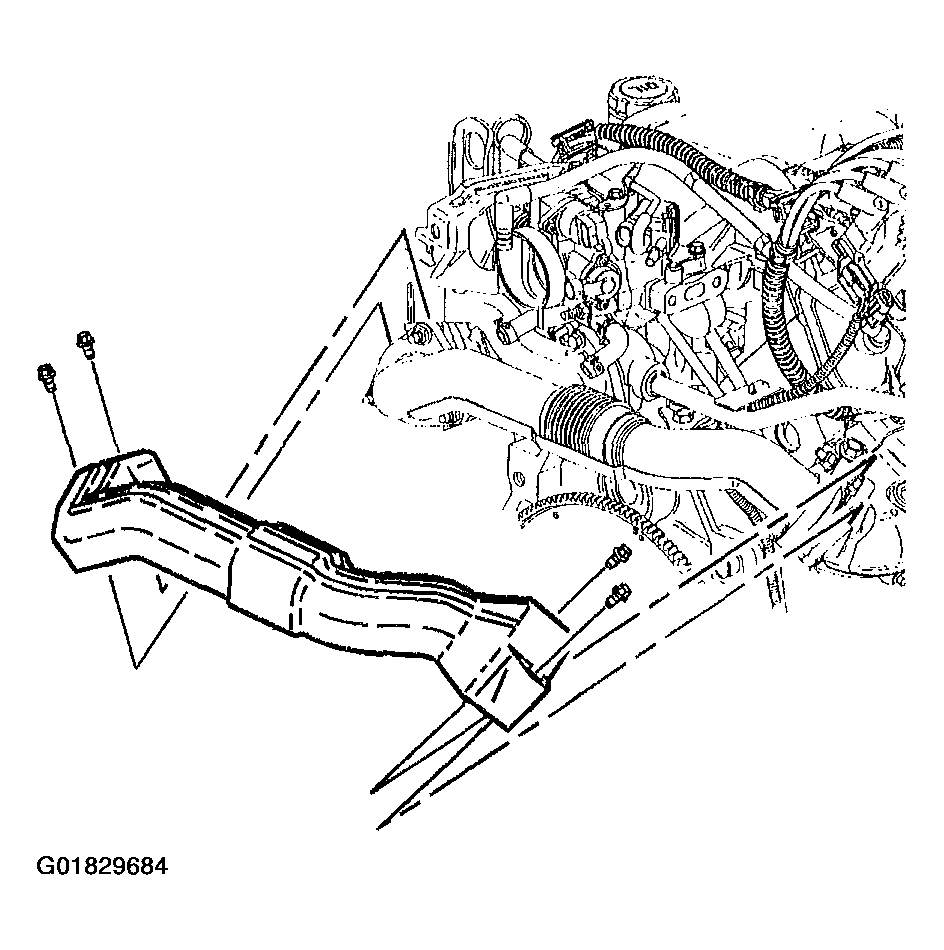

    Fig 1: Removing Exhaust Crossover Pipe Heat Shield & Bolts
    G01829684Courtesy of GENERAL MOTORS CORP.
  7. Remove the exhaust crossover pipe nuts.
  8. Remove the exhaust crossover pipe.

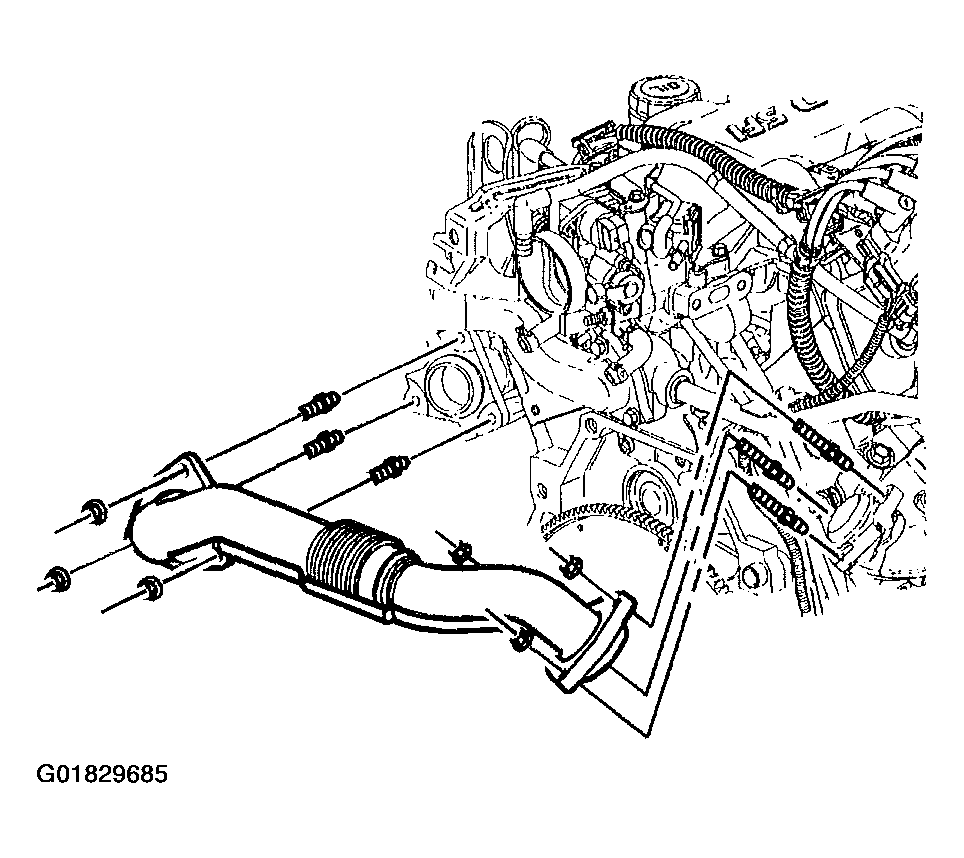

    Fig 2: Removing Exhaust Crossover Pipe & Nuts
    G01829685Courtesy of GENERAL MOTORS CORP.
